Television Display cannot Open, Close and Tilt

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: Television Display cannot Open, Close and Tilt

Television Display cannot Open, Close and Tilt

INSPECTION PROCEDURE

PROCEDURE

1. CHECK TELEVISION DISPLAY
(a) Using the remote controller, check if the television display can be opened and closed.
OK:
Can be opened and closed.
HINT: When the television display is closed, some switches on the remote controller cannot be used.

NG -- CHECK DISPLAY
OK -- END
2. CHECK DISPLAY

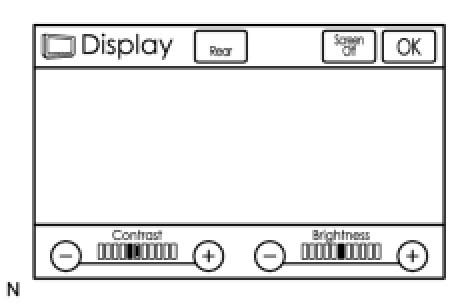

(a) When the "Rear" button of the multi-display's "Display" screen is pressed, check if the television display can be opened and closed.
OK:
Can be opened and closed.
NG -- CHECK TELEVISION DISPLAY ASSEMBLY
OK -- Continue to next step.

3. CHECK SYSTEM




(a) Check that the remote control operation of the rear system is not locked by the radio receiver or the display and navigation assembly.
(1) Check if "Rear System Locked" appears on the television display.
OK:
The message does not appear.
HINT: If the rear system is locked and the remote controller is used in the rear seat area, an operation not possible message (for example, "Rear System Locked") is displayed. If the message is displayed, enter the multi-display's screen setting, and change "Rear System Lock" to OFF.

NG -- RELEASE LOCK
OK -- GO TO A REMOTE CONTROL SYSTEM DOES NOT OPERATE A Remote Control System Does Not Operate

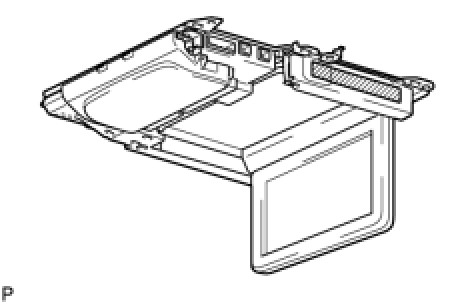

4. CHECK TELEVISION DISPLAY ASSEMBLY




(a) Check for foreign matter or obstructions caught in the moving parts of the panel.
OK:
No obstruction or foreign matter found.
NG -- REMOVE ANY OBSTRUCTION OR FOREIGN MATTER FOUND
OK -- Continue to next step.

5. VISUALLY CHECK FOR CRACKS AND DEFORMATION
(a) Visually check if the television display has cracks or deformation.
OK:
There are cracks and deformation.
NG -- REPLACE MULTI-DISPLAY CONTROLLER
OK -- END (CAUSE IS CRACKS AND DEFORMATION)
