Sound Signal Circuit between Multi-display Controller and Disc Player Controller

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: Sound Signal Circuit between Multi-display Controller and Disc Player Controller

Sound Signal Circuit between Multi-display Controller and Disc Player Controller

DESCRIPTION

This is the sound signal circuit from the disc player to the multi-display controller.

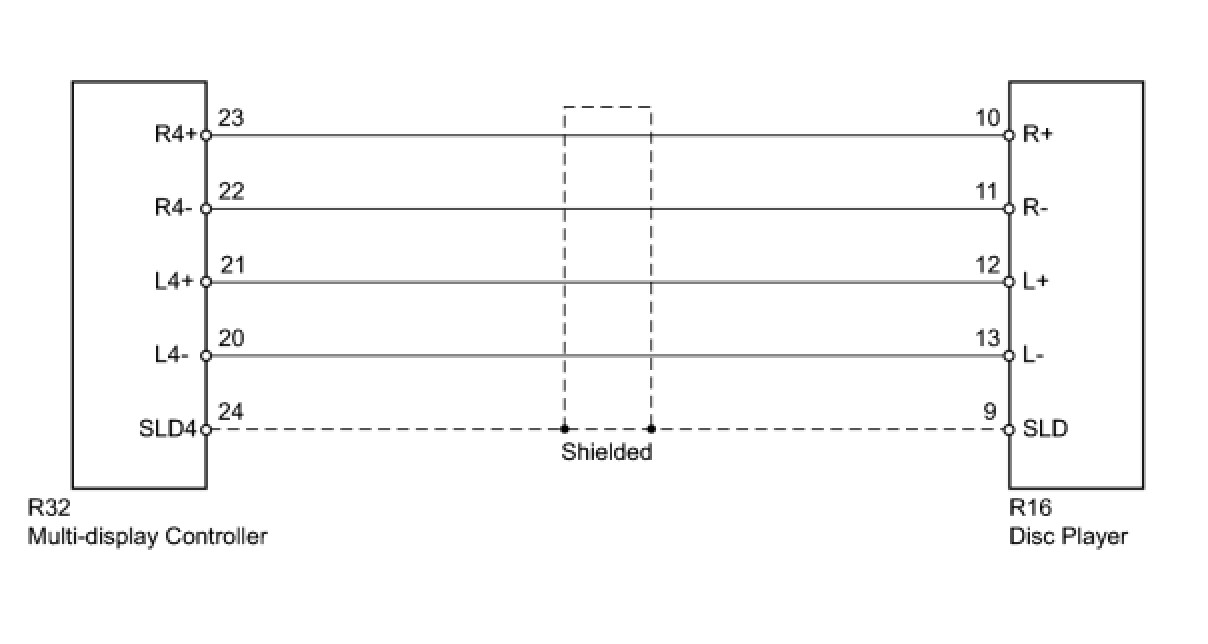

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER - DISC PLAYER)

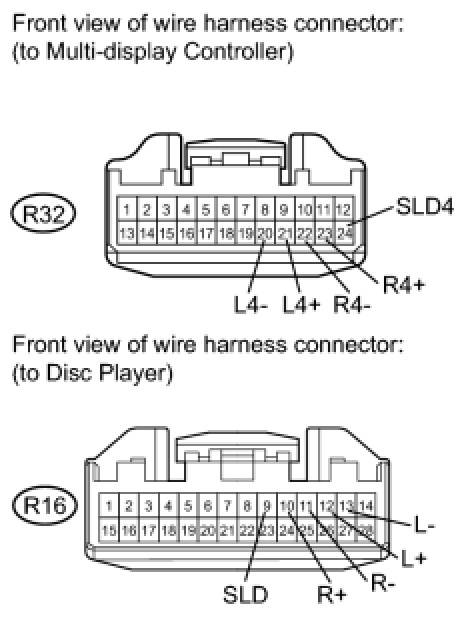

(a) Disconnect the R32 controller connector.
(b) Disconnect the R16 player connector.
(c) Measure the resistance according to the value(s) in the table below.

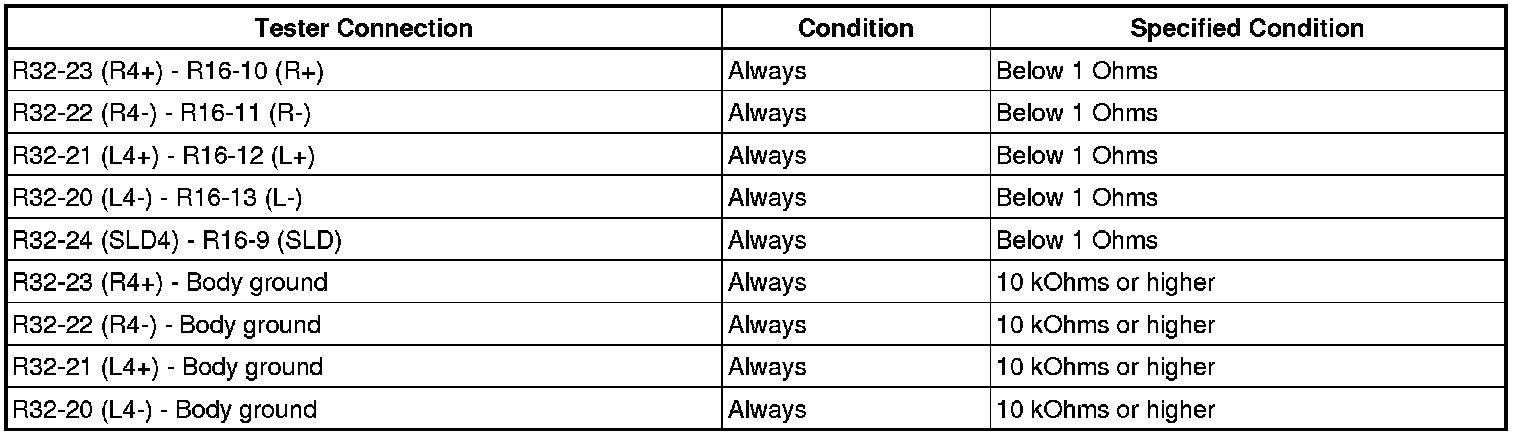

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
