Mute Signal Circuit between Radio Receiver and Multi-display Controller
AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: Mute Signal Circuit between Radio Receiver and Multi-display Controller
Mute Signal Circuit between Radio Receiver and Multi-display Controller
DESCRIPTION
The multi-display controller controls the volume according to the mute signal from the radio receiver.
The mute signal is sent to reduce noise and a popping sound generated when switching the mode, etc.

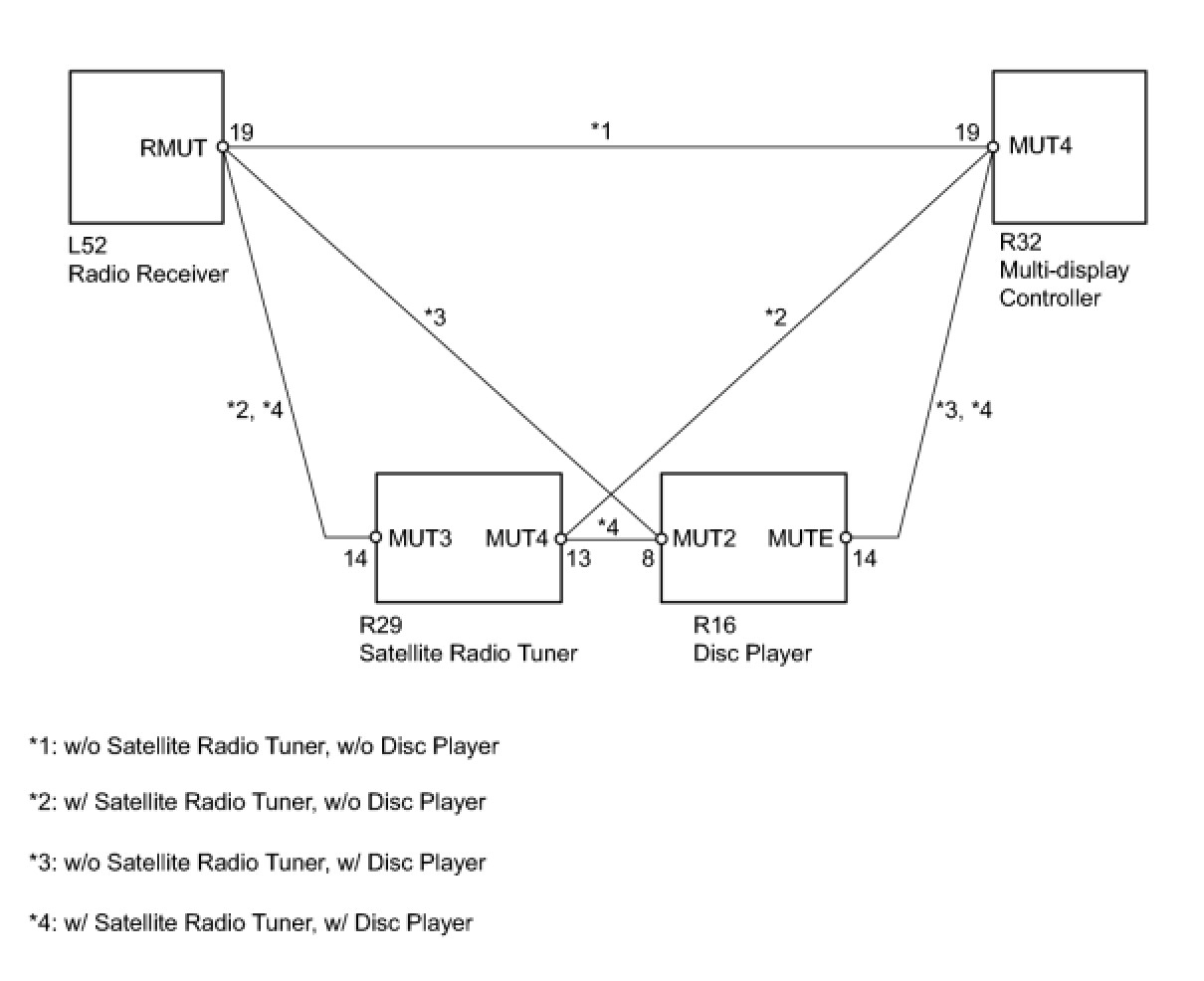

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE

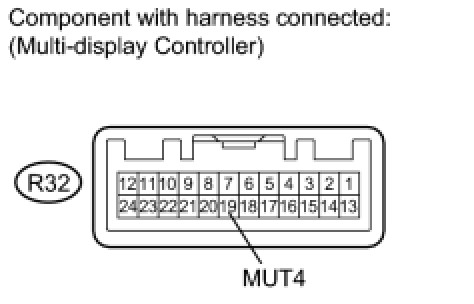

1. CHECK MULTI-DISPLAY CONTROLLER
(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. CHECK SATELLITE RADIO TUNER AND/OR DISC PLAYER
(a) Check if the satellite radio tuner and/or disc player are equipped on the vehicle.

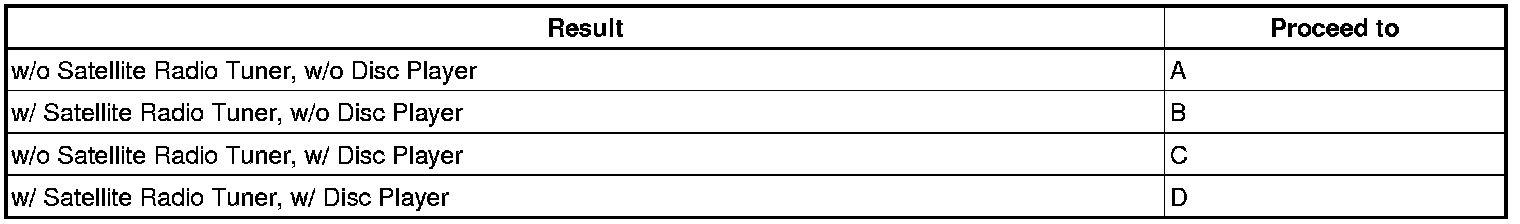

Result
D -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
C -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISC PLAYER)
B -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
A -- Continue to next step.

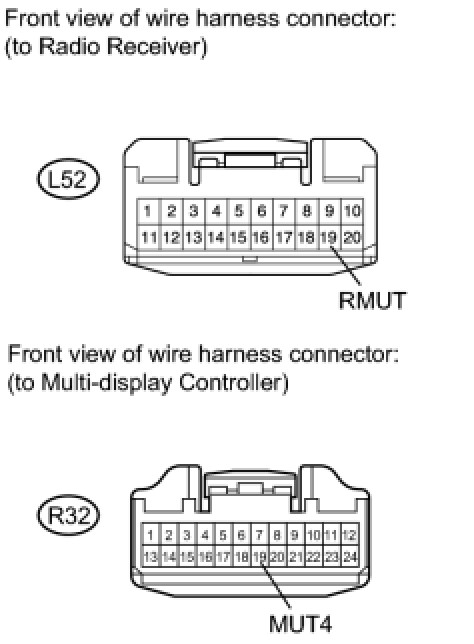

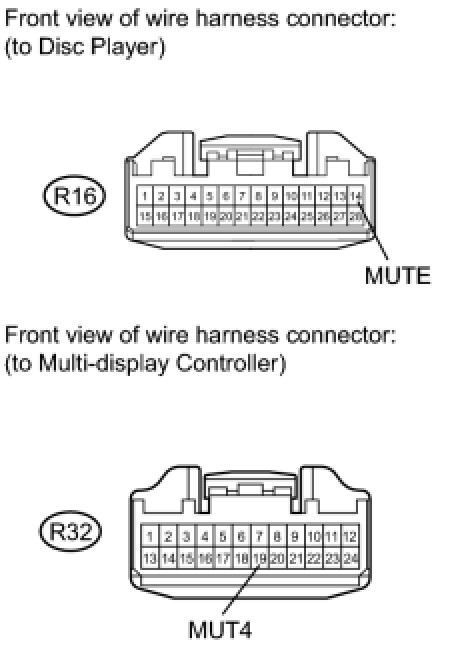

3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY CONTROLLER)
(a) Disconnect the L52 receiver connector.
(b) Disconnect the R32 controller connector.

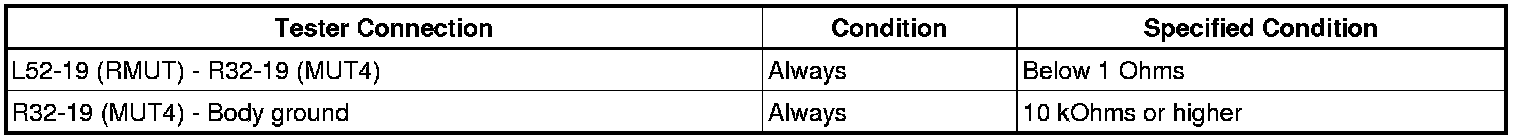

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

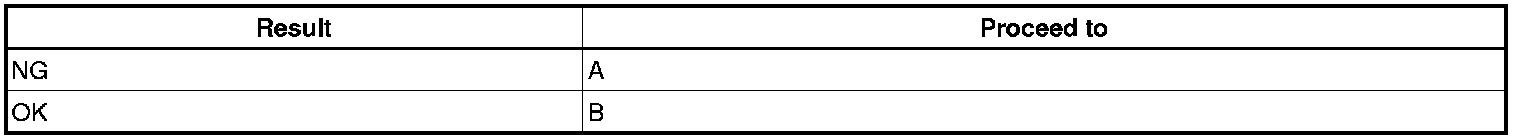

Result
B -- CHECK MULTI-DISPLAY CONTROLLER
A -- REPAIR OR REPLACE HARNESS OR CONNECTOR

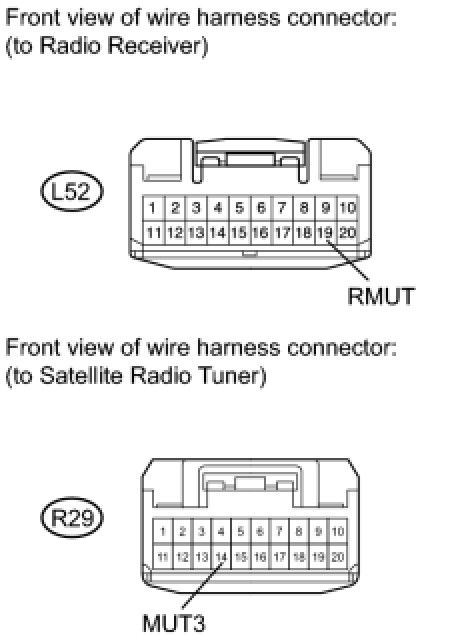

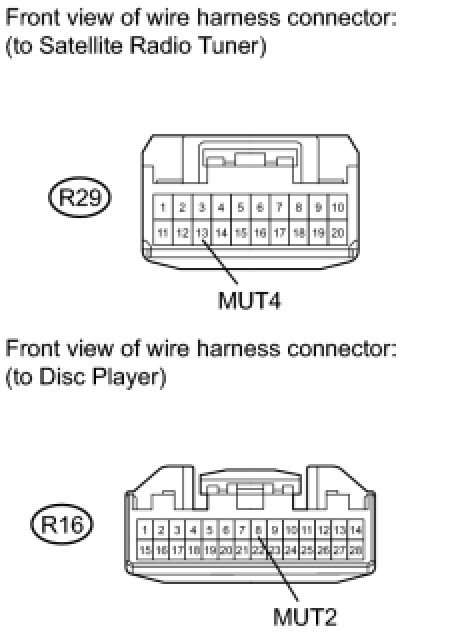

4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
(a) Disconnect the L52 receiver connector.
(b) Disconnect the R29 tuner connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

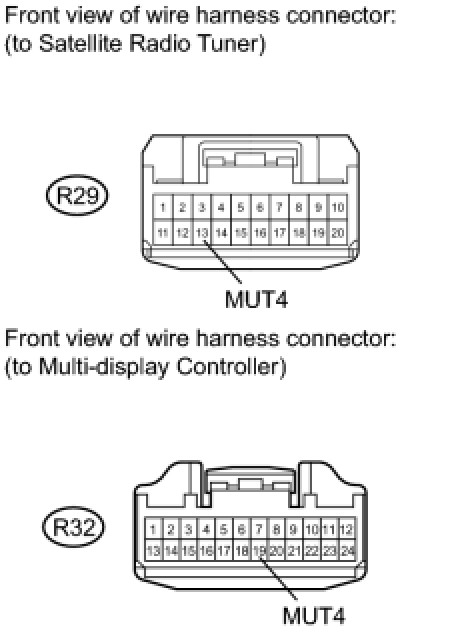

5. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - MULTI-DISPLAY CONTROLLER)
(a) Disconnect the R29 tuner connector.
(b) Disconnect the R32 controller connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
6. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
(a) Replace the satellite radio tuner with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- CHECK MULTI-DISPLAY CONTROLLER
OK -- END (SATELLITE RADIO TUNER IS DEFECTIVE)
7. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISC PLAYER)
(a) Disconnect the L52 receiver connector.
(b) Disconnect the R16 player connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
8. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
(a) Disconnect the R16 player connector.
(b) Disconnect the R32 controller connector.

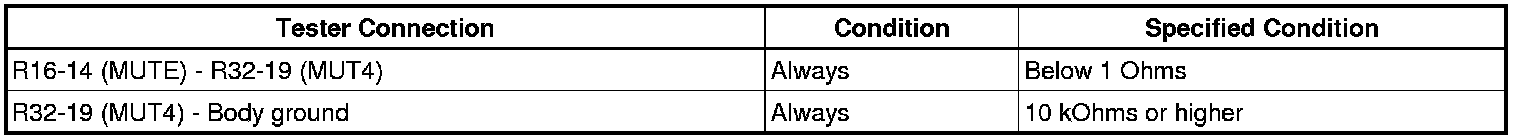

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
9. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
(a) Replace the disc player with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- CHECK MULTI-DISPLAY CONTROLLER
OK -- END (DISC PLAYER IS DEFECTIVE)

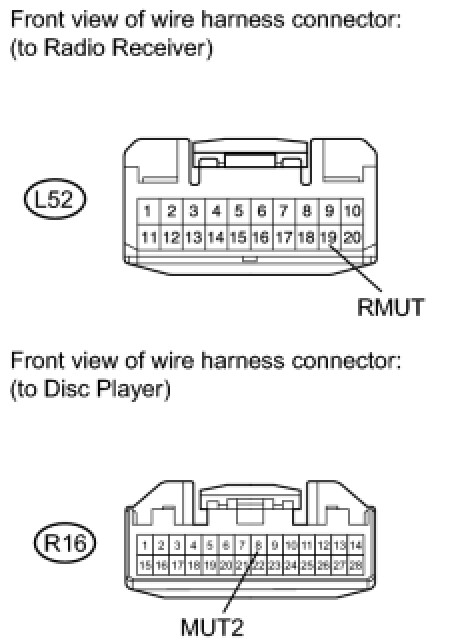

10. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
(a) Disconnect the L52 receiver connector.
(b) Disconnect the R29 tuner connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
11. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - DISC PLAYER)
(a) Disconnect the R29 tuner connector.
(b) Disconnect the R16 player connector.

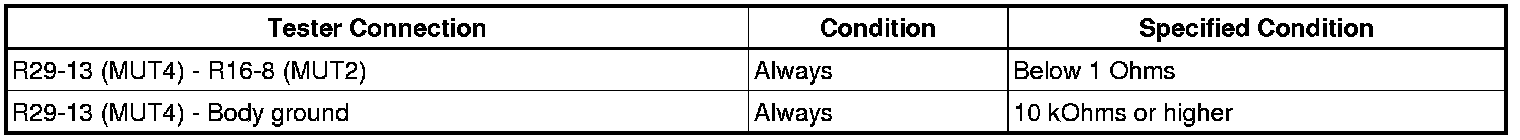

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
12. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
(a) Disconnect the R16 player connector.
(b) Disconnect the R32 controller connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
13. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
(a) Replace the satellite radio tuner with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
OK -- END (SATELLITE RADIO TUNER IS DEFECTIVE)
14. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
(a) Replace the disc player with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- CHECK MULTI-DISPLAY CONTROLLER
OK -- END (DISC PLAYER IS DEFECTIVE)
15. CHECK MULTI-DISPLAY CONTROLLER
(a) Reconnect the R32 controller connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
NG -- REPLACE MULTI-DISPLAY CONTROLLER
OK -- REPLACE RADIO RECEIVER
