Display Signal Circuit between Multi-display and Television Display Assembly

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: Display Signal Circuit between Multi-display and Television Display Assembly

Display Signal Circuit between Multi-display and Television Display Assembly

DESCRIPTION

This is the display signal circuit from the multi-display to the television display.

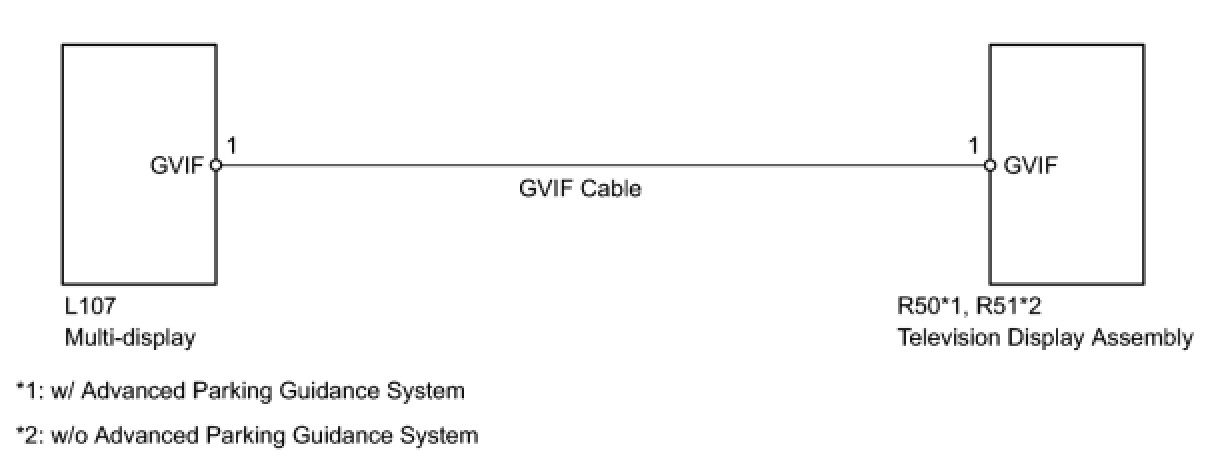

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE GVIF CABLE WITH NORMAL ONE AND CHECK
(a) Replace the GVIF cable with a normal one and check if the same problem occurs again.
OK:
Same problem does not occur.
NG -- REPLACE TELEVISION DISPLAY WITH NORMAL ONE AND CHECK
OK -- END (GVIF CABLE IS DEFECTIVE)
2. REPLACE TELEVISION DISPLAY WITH NORMAL ONE AND CHECK
(a) Replace the television display with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
OK -- END (TELEVISION DISPLAY IS DEFECTIVE)
