Display Check Mode

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: DISPLAY CHECK MODE

DISPLAY CHECK MODE
HINT:
- This mode checks the color display on the television display.




- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

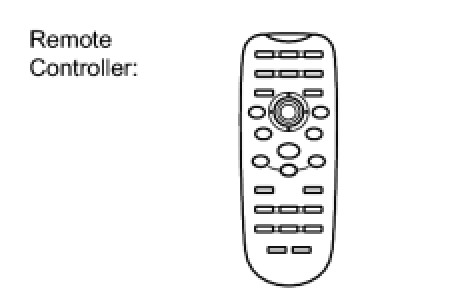

- Use the remote controller for each inspection.
- The television display is not a touch panel type. Do not touch the screen.

1. ENTER DIAGNOSTIC MODE
(a) Enter the diagnostic mode [W/ Navigation System (for HDD)] Navigation System (for HDD).
(b) Enter the diagnostic mode [W/ Navigation System (for DVD)] Navigation System (for DVD).
(c) Enter the diagnostic mode [W/O Navigation System] Audio and Visual System (W/ Multi-display).

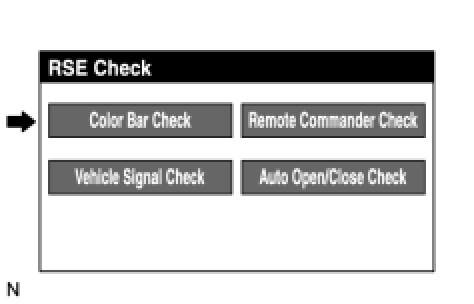

2. COLOR BAR CHECK





(a) Select "Color Bar Check" from the "RSE Check" screen.





(b) Select a color bar from the "Color Bar Check Mode" screen.

(c) Check the display color.
HINT:
- The entire screen turns to the color or stripe selected.
- The screen returns to the "Color Bar Check" screen if the remote controller is operated again.

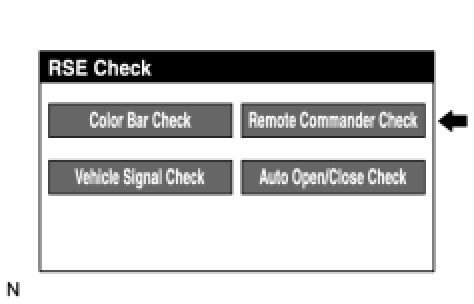

3. REMOTE COMMANDER CHECK





(a) Select "Remote Commander Check" from the "RSE Check" screen.





(b) Operate each switch and check that the switch name and condition are correctly displayed.

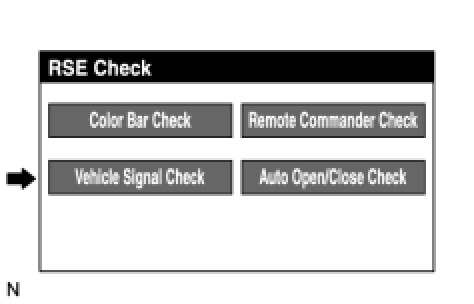

4. VEHICLE SIGNAL CHECK





(a) Select "Vehicle Signal Check" from the "RSE Check" screen.

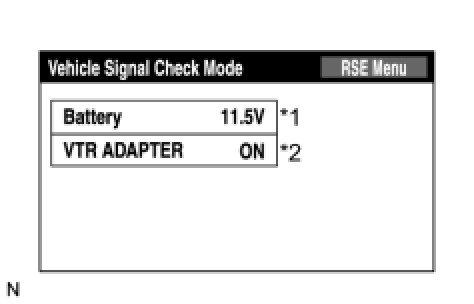

(b) When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.

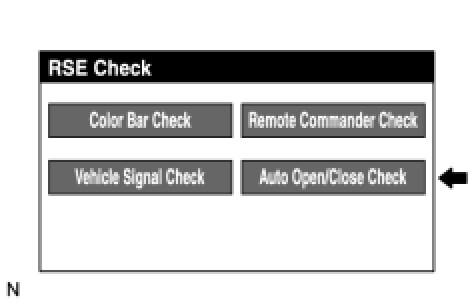

5. AUTO OPEN/CLOSE CHECK





(a) Select "Auto Open/Close Check Mode" screen.





(b) This is the screen for inspecting the electronic open and close function of the RSE.
