AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL STEREO JACK ADAPTER ASSEMBLY (for Ottoman)

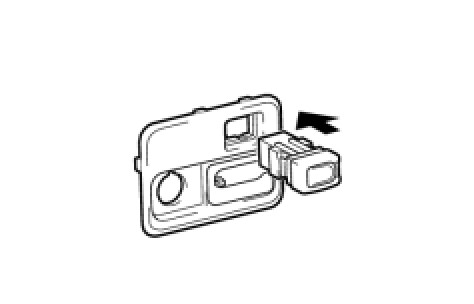

(a) Attach the 2 claws to install the adapter.
2. INSTALL CONSOLE BOX POCKET LOWER (for Ottoman)





(a) Attach the 8 claws to install the console box pocket lower.
(b) Connect the connector.





3. INSTALL STEREO JACK ADAPTER ASSEMBLY

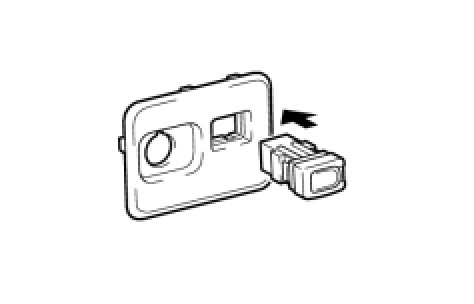

(a) Attach the 2 claws to install the adapter.
4. INSTALL CONSOLE BOX POCKET LOWER





(a) Attach the 8 claws to install the console box pocket lower.
(b) Connect the connector.
5. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER Installation
6. INSTALL REAR CONSOLE PANEL UPPER Installation
7. INSTALL NO. 3 BOX PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
10. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
13. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
