Pre-Collision System

PRE-COLLISION: PRE-COLLISION SYSTEM: PROBLEM SYMPTOMS TABLE

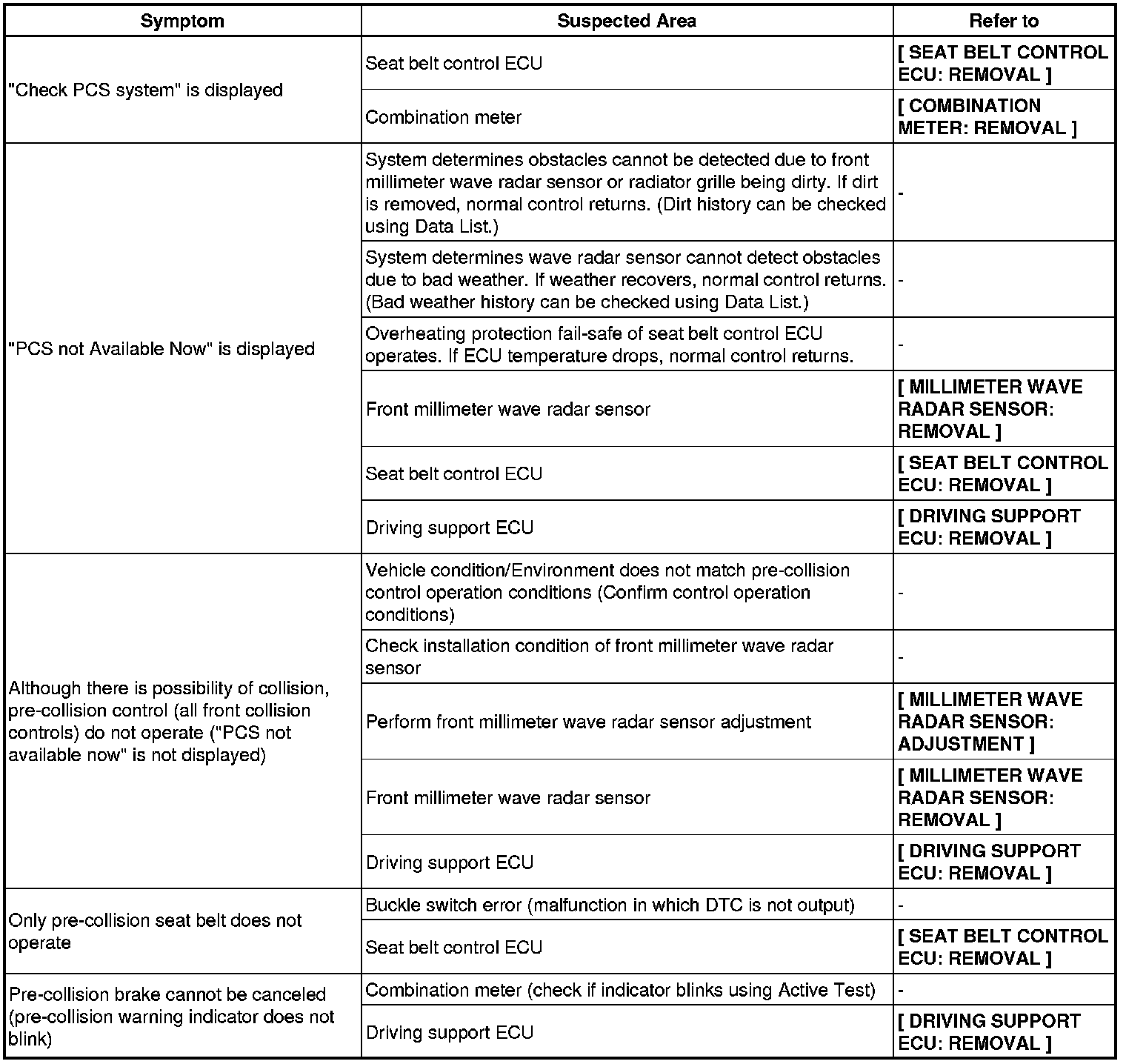

PROBLEM SYMPTOMS TABLE
HINT: If the normal codes for the pre-collision system and CAN communication system are output but the following problem symptoms are present, perform the malfunction diagnosis by following the "Suspected Area" procedures below.

Pre-collision system
