Parking Operation Stops and ! System cannot guide under current conditions. is Displayed (No DTC is Output)

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: Parking Operation Stops and "! System cannot guide under current conditions." is Displayed (No DTC is Output)

Parking Operation Stops and "! System cannot guide under current conditions." is Displayed (No DTC is Output)

INSPECTION PROCEDURE
NOTE:
When replacing the parking assist ECU, perform initialization of the television camera and calibration of the steering angle sensor and height control sensor.

PROCEDURE

1. CHECK TIRE
(a) Check the tire size, tire pressure and tire wear.

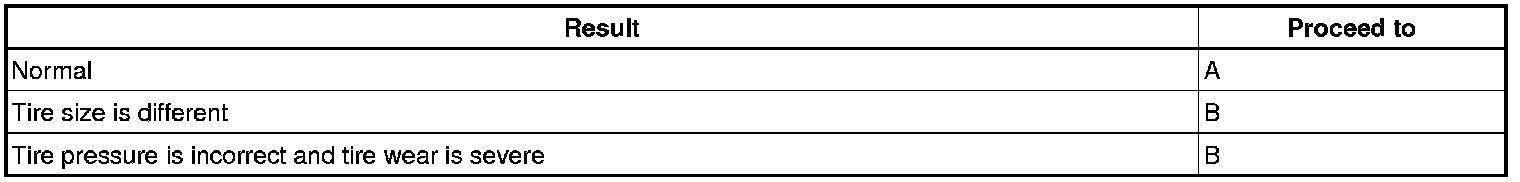

Result





B -- ADJUST TIRE PRESSURE OR REPLACE TIRE
A -- Continue to next step.

2. REAR VALUE USING TECHSTREAM (WHEEL ODOMETER INFORMATION)

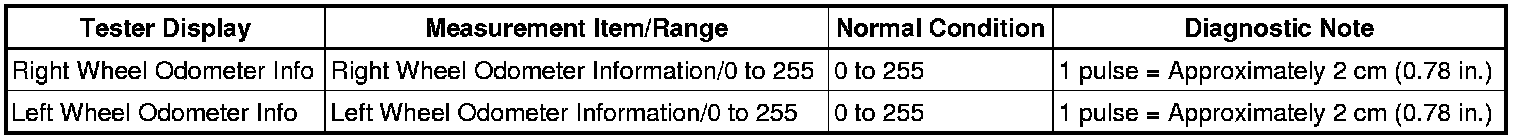

(a) Select the item below in the Data List, and read its value displayed on the Techstream to check the wheel odometer information.

Advanced Parking Guidance System

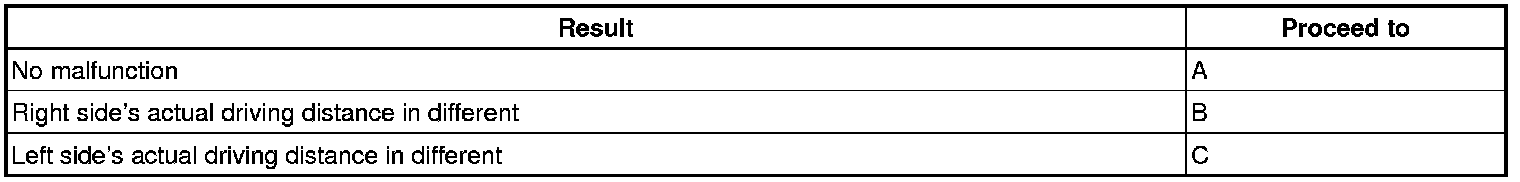

Result





C -- REPLACE REAR SPEED SENSOR LH
B -- REPLACE REAR SPEED SENSOR RH
A -- REPLACE PARKING ASSIST ECU
