Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS
NEXT -- Continue to next step.

3. CHECK DTC OF NAVIGATION SYSTEM
(a) Refer to the DTC check/clear procedures of the navigation system.
HINT:
For navigation systems (for DVD), refer to the following procedures Navigation System (for DVD).
For navigation systems (for HDD), refer to the following procedures Navigation System (for HDD).

Result





B -- DTC IS OUTPUT (Go to navigation system)
A -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

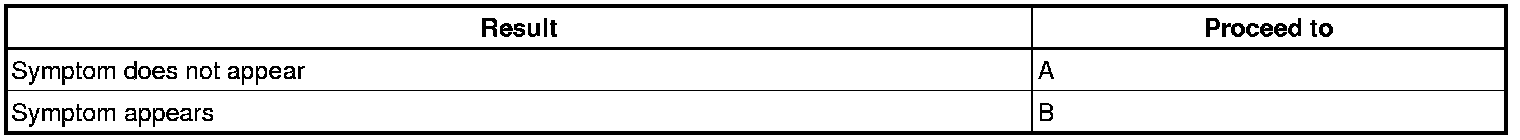

Result





B -- SYMPTOM OCCURS (Go to step 6)
A -- Continue to next step.

5. SYMPTOM SIMULATION
NEXT -- Continue to next step.

6. CHECK IF SAME SYMPTOM APPEARS IN NAVIGATION SYSTEM
(a) Refer to the navigation system.
HINT: For navigation systems (for DVD), refer to the following table Problem Symptoms Table.
For navigation systems (for HDD), refer to the following table Problem Symptoms Table.

Result





B -- SYMPTOM APPEARS (FOLLOW THE NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE
(a) Refer to the problem symptoms table Intuitive Parking Assist System.

Result





B -- CORRESPONDING SYMPTOM EXISTS (Go to step 9)
A -- Continue to next step.

8. BASED ON MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW
(a) Terminals of ECU Rear View Monitor System.
NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.

10. CONFIRMATION TEST
NEXT -- END
