Diagnosis System

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

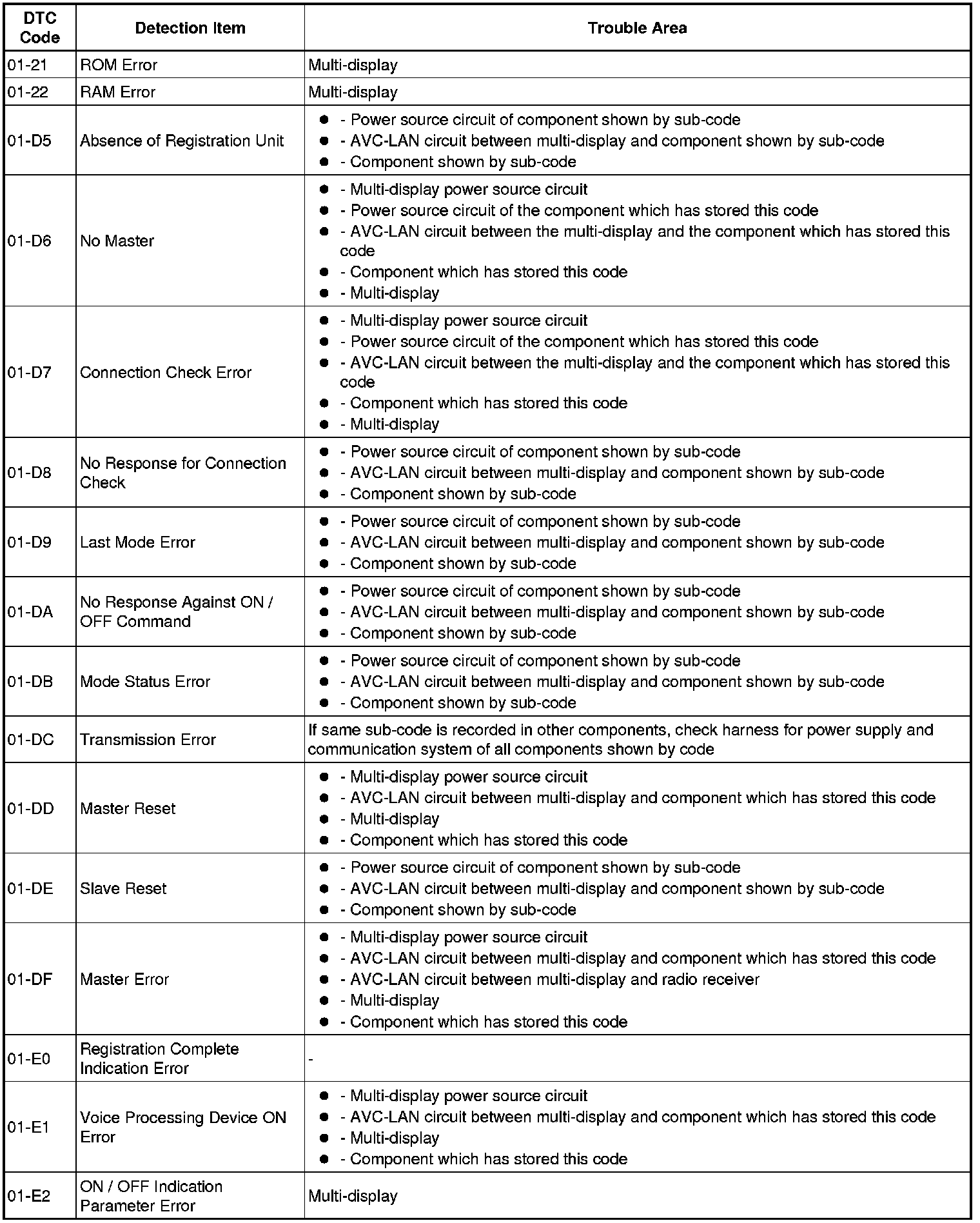

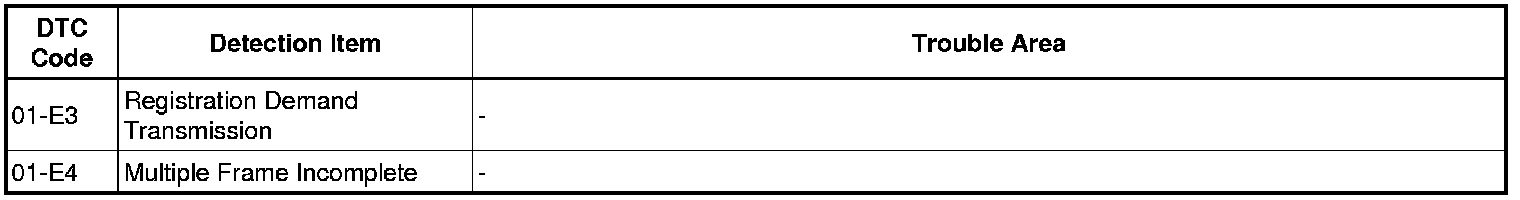

HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the same code in the diagnostic trouble code chart of the Navigation System.
- Refer to the Navigation System (for HDD) Navigation System (for HDD).
- Refer to the Navigation System (for DVD) Navigation System (for DVD).

1. LOGICAL ADDRESS

Logical address: 01 (communication control)
