Removal

PRE-COLLISION: DRIVER MONITOR CAMERA: REMOVAL

REMOVAL

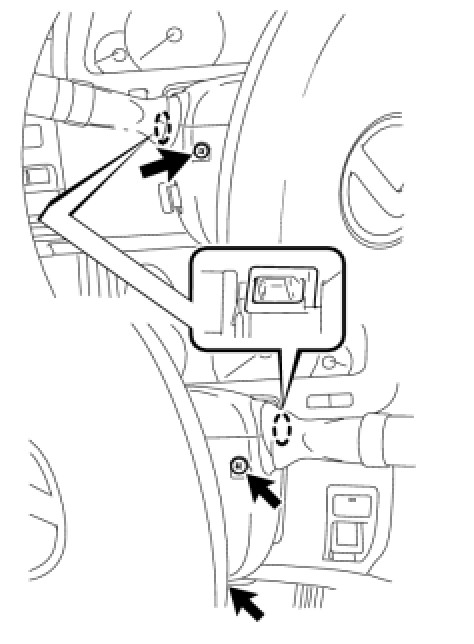

1. REMOVE STEERING COLUMN COVER (for Lower Side)
(a) Remove the 3 screws.
(b) Detach the 2 claws and remove the cover.

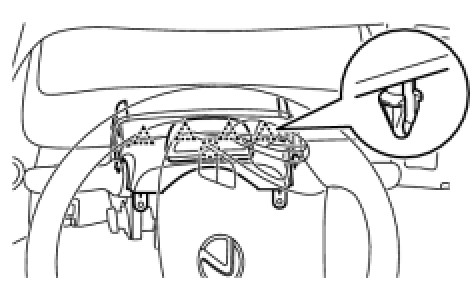

2. REMOVE STEERING COLUMN COVER (for Upper Side)

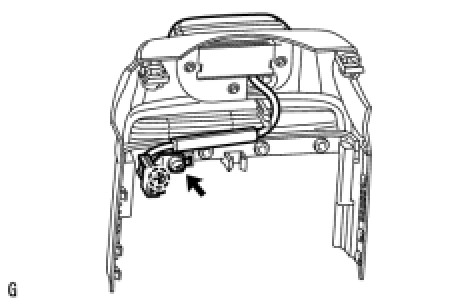

(a) Disconnect the connector.
(b) Detach the claw and 4 clips and remove the cover.

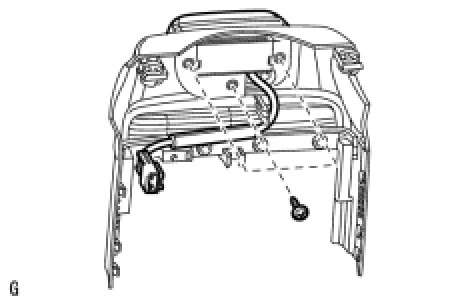

3. REMOVE DRIVER MONITOR BRACKET
(a) Remove the screw.
(b) Detach the claw and remove the bracket.

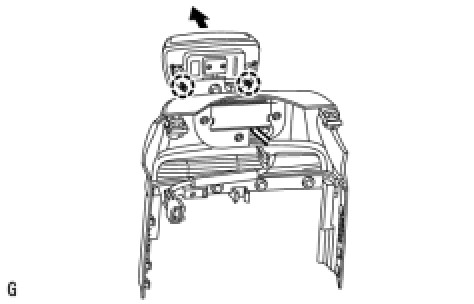

4. REMOVE DRIVER MONITOR CAMERA





(a) Remove the 3 screws.





(b) Remove the camera in the direction indicated by the arrow.
