PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear Side): REMOVAL

REMOVAL
NOTE:
When replacing the sensor, only replace the clips and sensor.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR BUMPER PLATE LH Removal
4. REMOVE REAR BUMPER PLATE RH Removal
5. REMOVE REAR BUMPER COVER Removal
6. REMOVE LUGGAGE ROOM NO. 3 WIRE
(a) Disconnect the sensor connector.

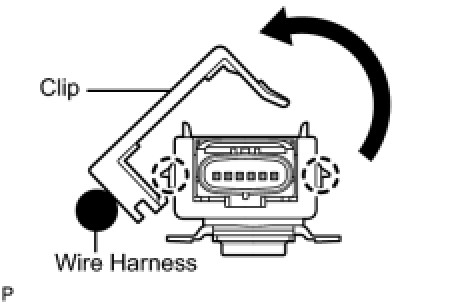

(b) Detach the claws, and remove the wire harness together with the clips from the sensor.

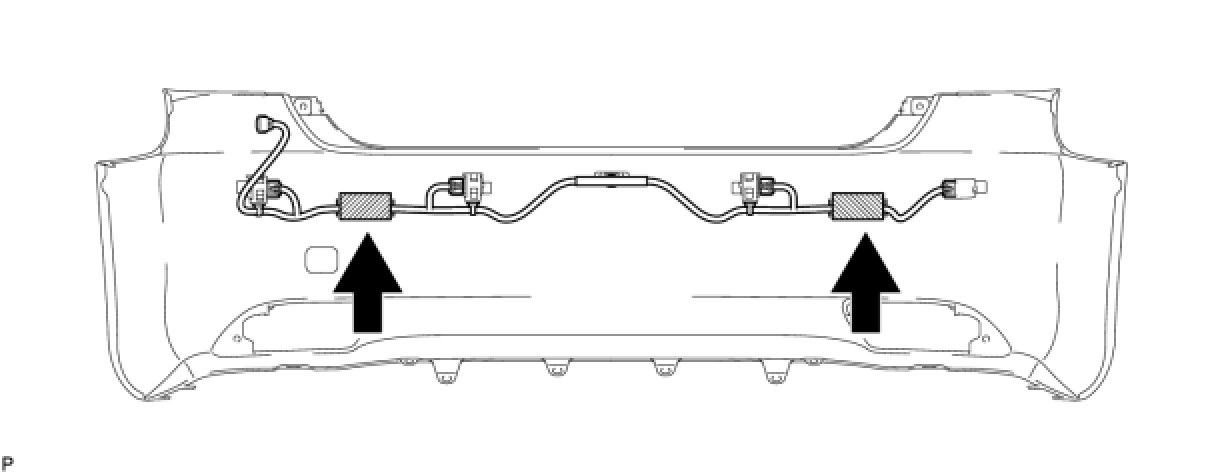

(c) Remove the tape and wire harness (with the clips) from the bumper cover.





(d) Remove the clamps from the clips to remove the wire.
7. REMOVE NO. 1 ULTRASONIC SENSOR





(a) Remove the sensors from the 4 sensor retainers as shown in the illustration.
- Be careful not damage the to retainer.
- Do not forcibly remove the retainer from the bumper cover.

8. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER





(a) While heating the retainer using a dryer, pull the retainer lightly and remove the double-sided tape. Then remove the retainer.
Heating temperature:
40 to 60°C (104 to 140°F)
CAUTION:
Be careful of burns.

(b) Using a cloth or non-residue solvent, wipe off any tape residue on the bumper cover.
