Installation

CELLULAR COMMUNICATION: TELEPHONE MICROPHONE: INSTALLATION

INSTALLATION

1. INSTALL MICROPHONE ASSEMBLY





(a) Attach the 2 claws to install the microphone.
(b) Connect the connector.





(c) Install the cover and plate with the 9 screws.





2. INSTALL GARAGE DOOR OPENER TRANSMITTER

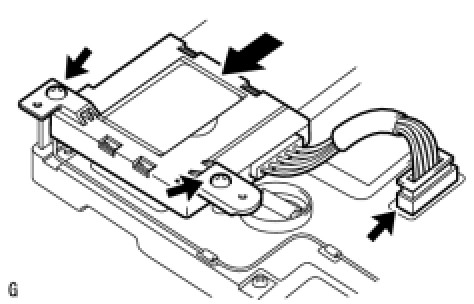

(a) Connect the connector and install the amplifier, as shown in the illustration.
(b) Install the 2 screws.
3. INSTALL MAP LIGHT ASSEMBLY
(a) for Standard Body:
Install the map light Installation.
(b) for Long Body:
Install the map light Installation.
