Removal

DOOR LOCK: ELECTRICAL KEY OSCILLATOR (for Luggage Compartment): REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal
2. REMOVE ROPE HOOK ASSEMBLY Removal
3. REMOVE DECK TRIM SIDE BOARD LH Removal

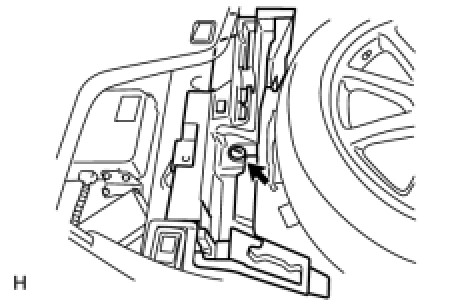

4. REMOVE SPARE WHEEL GUARD SUB-ASSEMBLY
(a) Remove the clip and wheel guard.

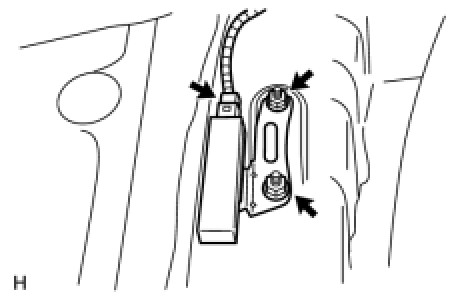

5. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR
(a) Disconnect the connector.
(b) Remove the 2 nuts and electrical key.
