AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

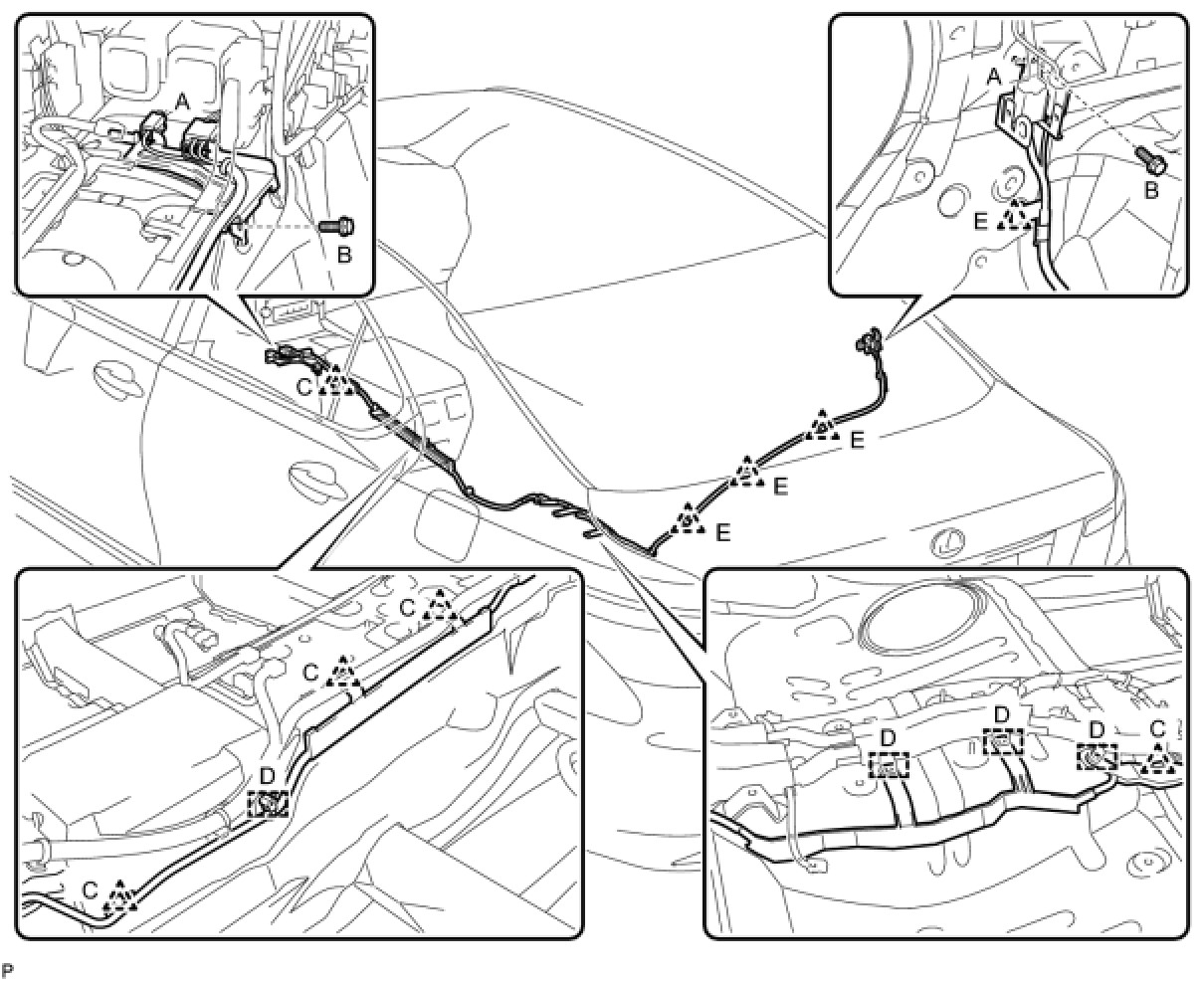

1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Long Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 5 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna coed.

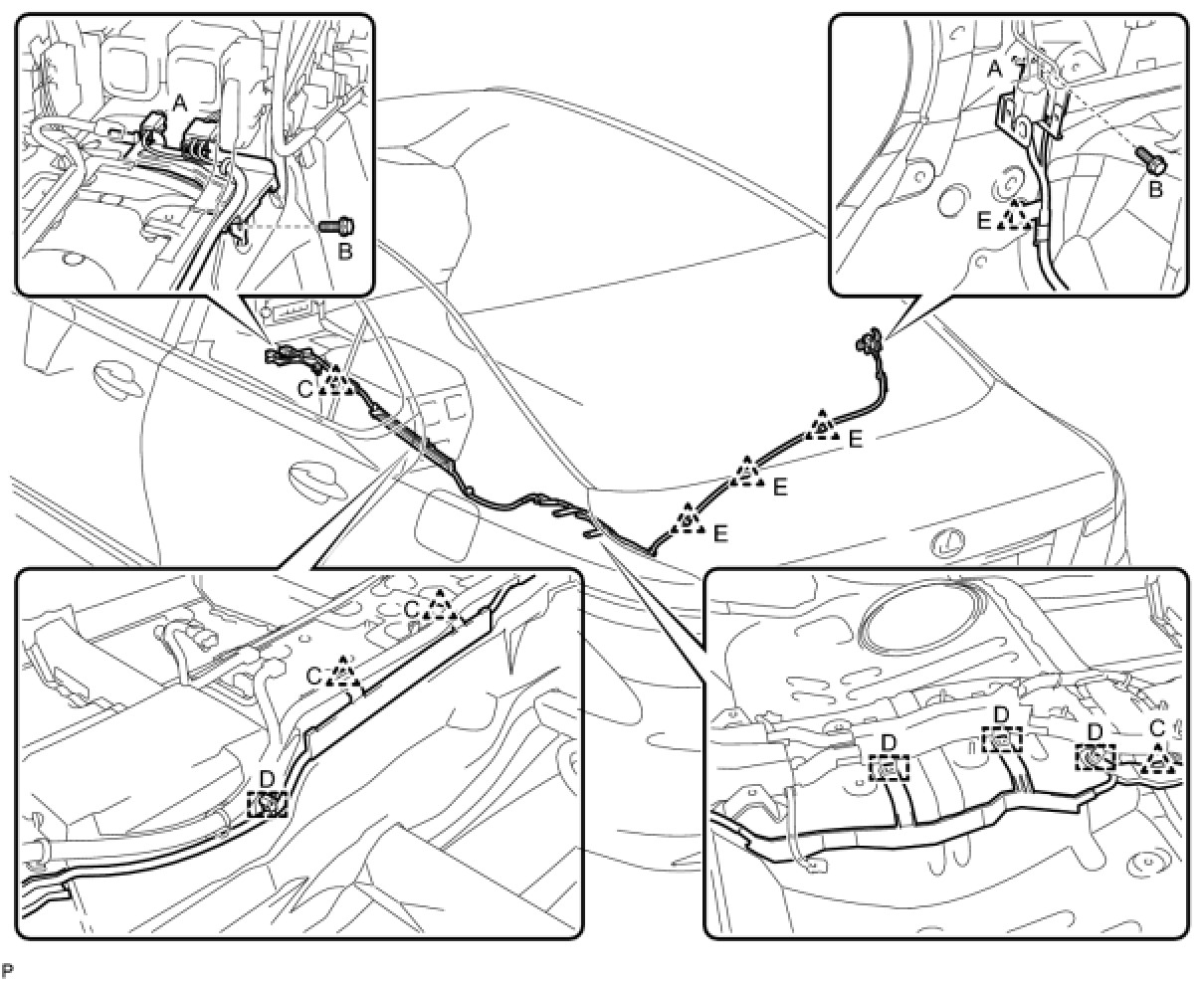

2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Standard Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 4 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna cord.





3. INSTALL ROOF SIDE GARNISH INNER RH Installation
4. INSTALL REAR SEAT SIDE GARNISH RH Installation
5. INSTALL REAR DOOR SCUFF PLATE RH
(a) for Standard Body:
(1) Install the rear door scuff plate RH Installation.
(b) for Long Body:
(1) Install the rear door scuff plate RH Installation.
6. INSTALL REAR SEAT ASSEMBLY
(a) for Fixed Seat:
(1) Install the rear seat Installation.
(b) for Ottoman:
(1) Install the rear seat Installation.
(c) for Power Seat:
(1) Install the rear seat Installation.
7. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat RH Installation.
8. INSTALL FRONT CONSOLE BOX ASSEMBLY
(a) Remove the front console box Installation.

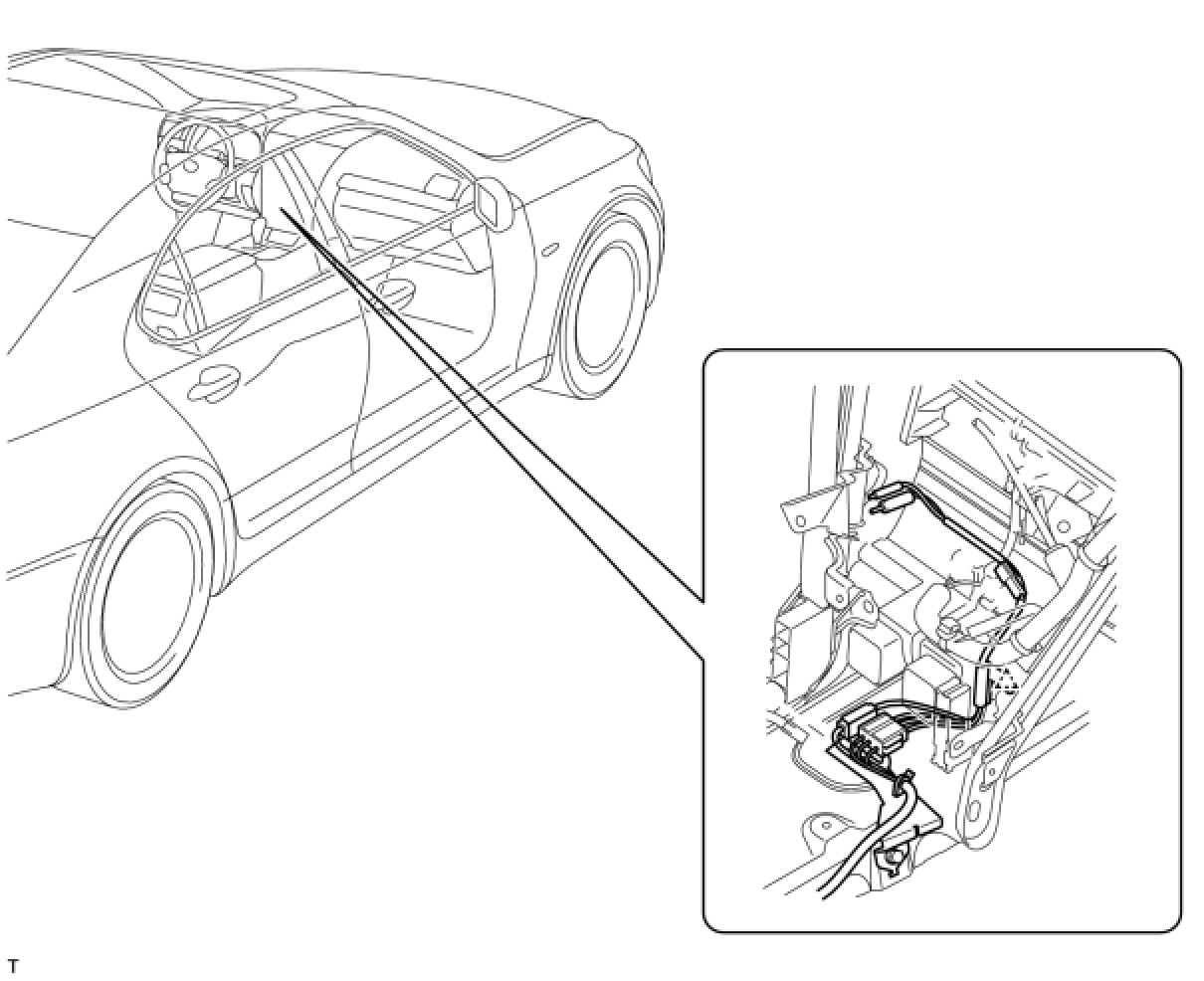

9. INSTALL ANTENNA CORD SUB-ASSEMBLY
(a) Attach the clip and install the antenna cord.
(b) Connect the 2 connectors.





10. INSTALL ANTENNA CORD SUB-ASSEMBLY (for DVD)
(a) Attach the clip and install the antenna cord.
(b) Connect the 3 connectors.





11. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER Installation
12. INSTALL CONSOLE UPPER PANEL REAR Installation
13. INSTALL NO. 3 BOX PANEL Installation
14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
15. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
16. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
17. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET Installation
18. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET Installation
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
21. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
