Removal

CELLULAR COMMUNICATION: TELEPHONE ANTENNA: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE ROOF HEADLINING ASSEMBLY
(a) for Standard Body:
Remove the roof headlining Removal.
(b) for Long Body:
Remove the roof headlining Removal.
3. REMOVE TELEPHONE ANTENNA ASSEMBLY





(a) Detach the 4 claws and remove the 2 antenna cord connectors.





(b) Detach the 2 claws and remove the protector.





(c) Disconnect the 2 connectors.

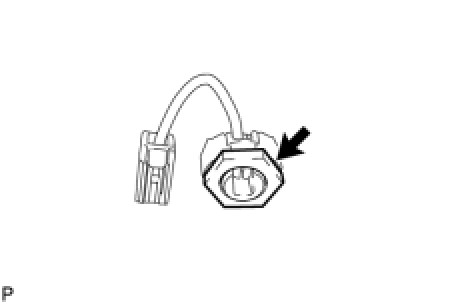

(d) Remove the antenna nut.





(e) Detach the 2 claws and remove the telephone antenna.
