U0199








CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: U0199: Lost Communication with "Door Control Module A"

DTC U0199 - Lost Communication with "Door Control Module A"

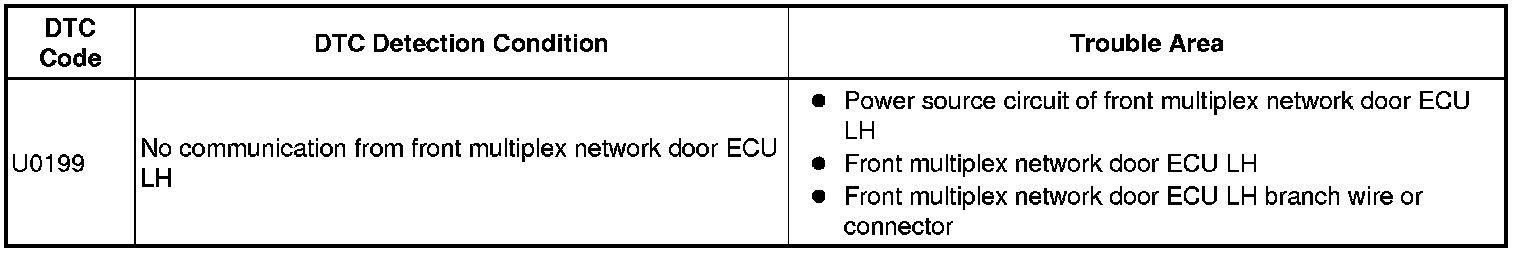

DESCRIPTION

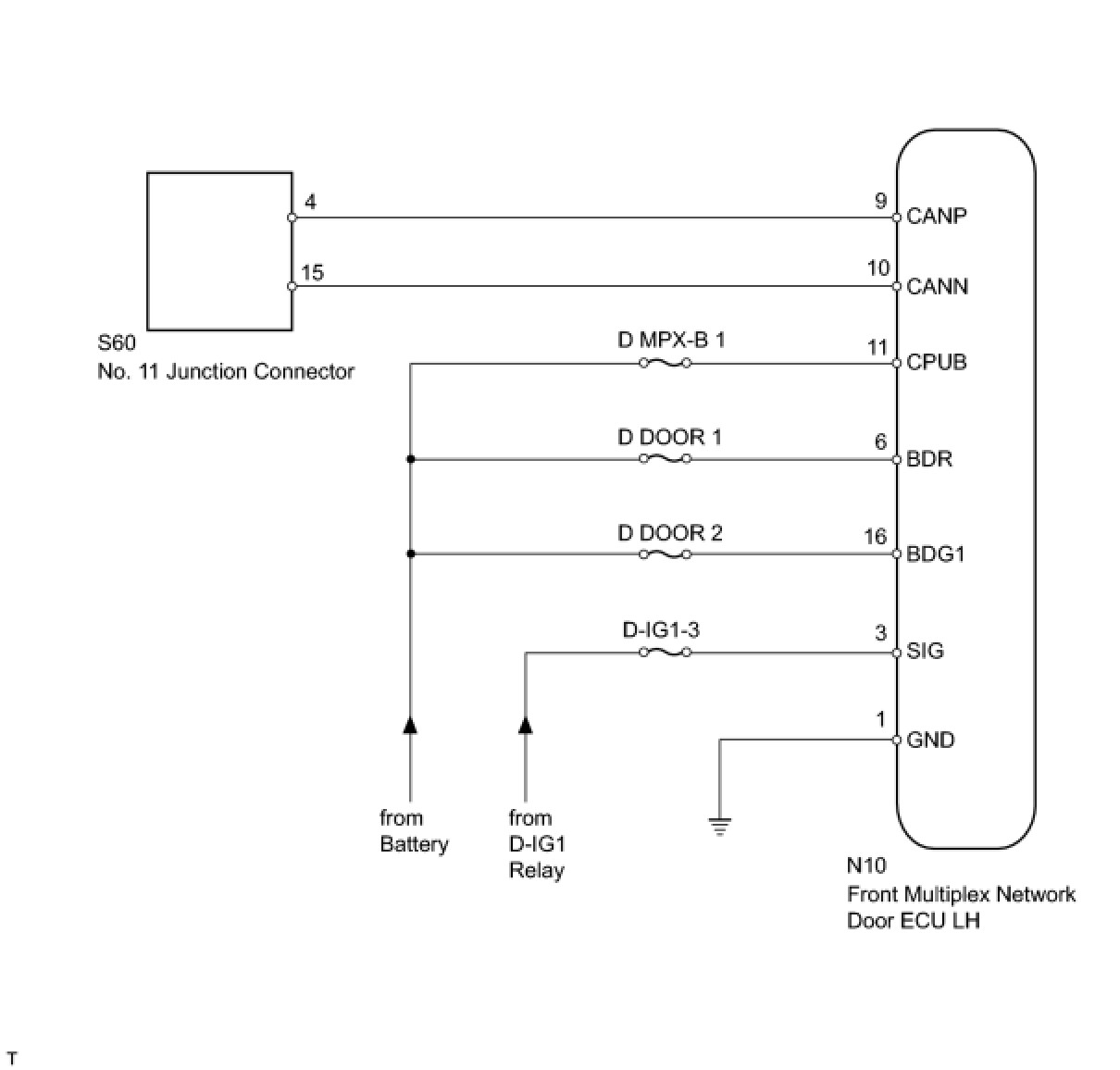

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(a) Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTICE:
- After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

NEXT -- Continue to next step.

2. CHECK FOR OPEN IN CAN BUS WIRE (FRONT MULTIPLEX NETWORK DOOR ECU LH BRANCH WIRE)

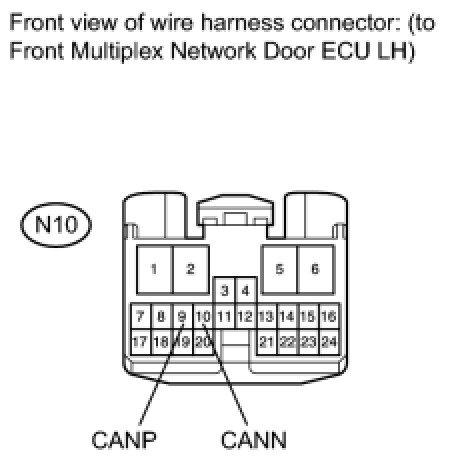

(a) Disconnect the N10 front multiplex network door ECU LH connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FRONT MULTIPLEX NETWORK DOOR ECU LH BRANCH WIRE OR CONNECTOR (CANP, CANN)
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU LH - BATTERY AND BODY GROUND)
(a) Connect the cable to the negative (-) battery terminal.
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

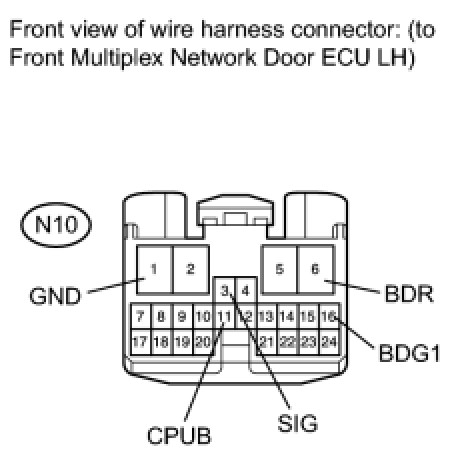

(b) Disconnect the N10 front multiplex network door ECU LH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

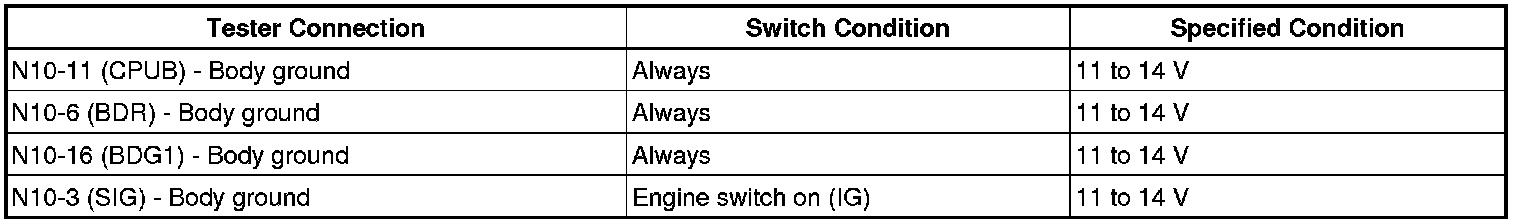

(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE FRONT MULTIPLEX NETWORK DOOR ECU LH
