Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): 58-10: Gyro Error

DTC 58-10 - Gyro Error

DTC 80-10 - Gyro Error

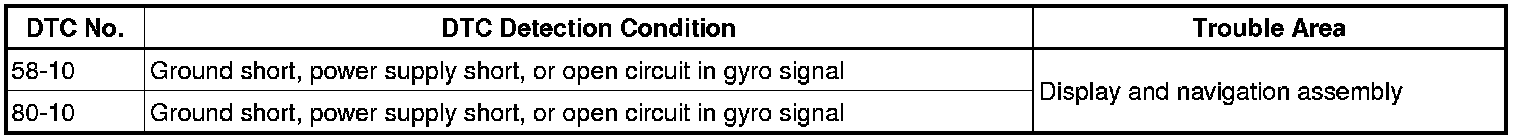

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for HDD).

PROCEDURE

1. CHECK VEHICLE SENSOR (NAVIGATION CHECK MODE)

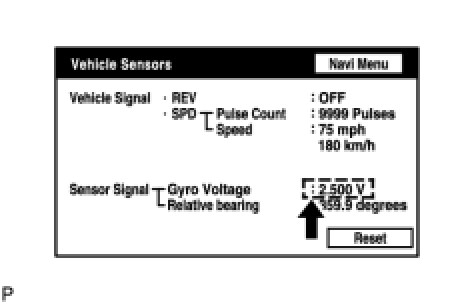

(a) Enter the "Navigation Check" mode (Vehicle Sensors) Navigation Check Mode.
(b) Check the gyro voltage.
Standard voltage:
0.5 to 4.5 V
NG -- REPLACE DISPLAY AND NAVIGATION ASSEMBLY
OK -- Continue to next step.

2. CLEAR DTC
(a) Clear the DTCs Navigation System (for HDD).
NEXT -- Continue to next step.

3. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
HINT: If DTCs are detected frequently, replace the display and navigation assembly.

OK:
Malfunction disappears.
NG -- REPLACE DISPLAY AND NAVIGATION ASSEMBLY
OK -- END
