Audio and Visual System (W/O Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): 62-78: DSP Error

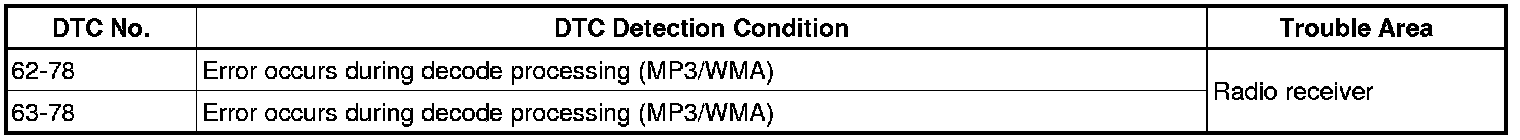

DTC 62-78 - DSP Error

DTC 63-78 - DSP Error

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.
NOTICE:
- This code may be output even when a malfunction does not exist.
- When this code is output frequently, replace the radio receiver Removal.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTC Audio and Visual System (W/O Multi-display).
HINT: These DTCs do not indicate a malfunction.

NEXT -- Continue to next step.

2. RECHECK DTC
(a) Recheck the DTC and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
