Audio and Visual System (W/ Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/ Multi-display): 63-44: CD Abnormal

DTC 63-44 - CD Abnormal

DTC 63-48 - Excess Current

DTC 63-50 - Tray Insertion / Ejection Error

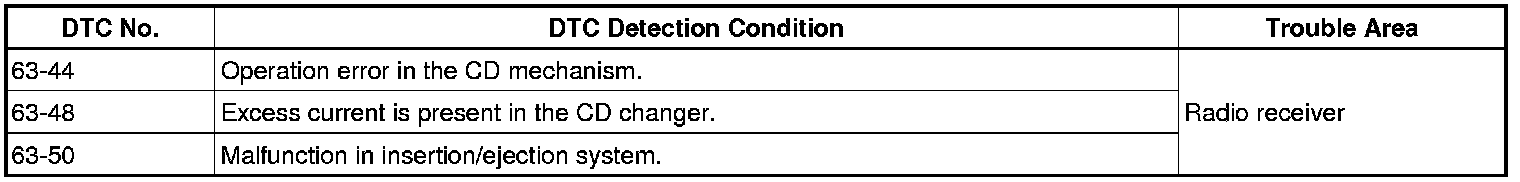

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTCs Audio and Visual System (W/ Multi-display).
NEXT -- Continue to next step.

2. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
HINT: If DTCs are detected frequently, replace the radio receiver Removal.

OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
