Audio and Visual System (W/O Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): 62-44: CD Abnormal

DTC 62-44 - CD Abnormal

DTC 62-48 - Excess Current

DTC 62-50 - Tray Insertion / Ejection Error

DTC 63-44 - CD Abnormal

DTC 63-48 - Excess Current

DTC 63-50 - Tray Insertion / Ejection Error

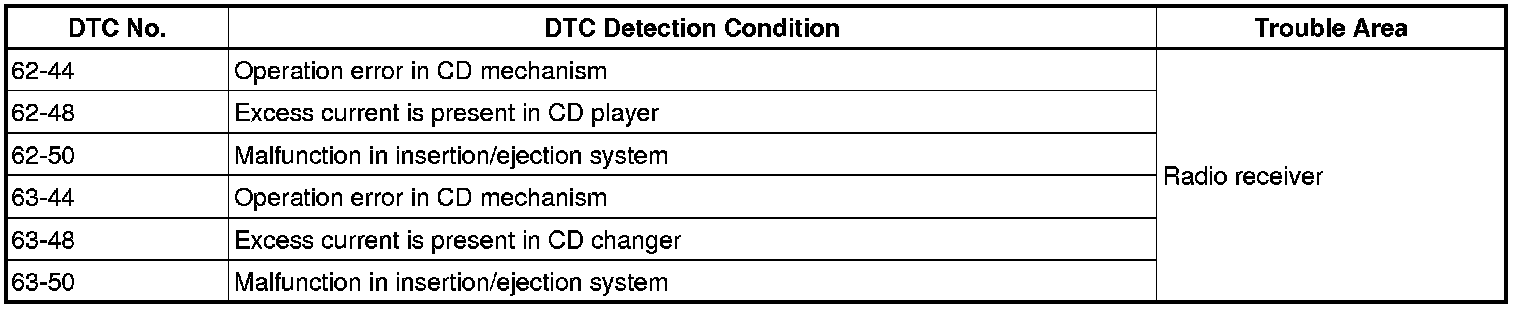

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTC Audio and Visual System (W/O Multi-display).
NEXT -- Continue to next step.

2. RECHECK DTC
(a) Recheck DTCs and check if the same trouble occurs again.
HINT: If DTCs are detected frequently, replace the radio receiver Removal.

OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
