Audio and Visual System (W/O Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): 62-47: High Temperature

DTC 62-47 - High Temperature

DTC 63-47 - High Temperature

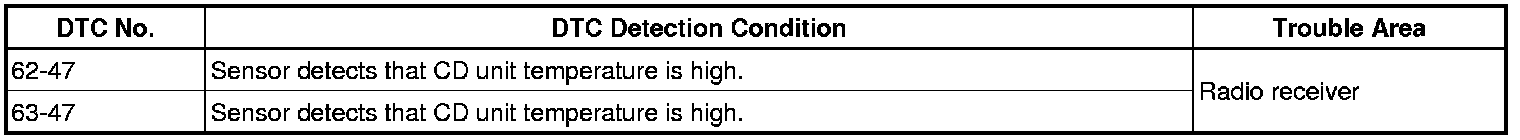

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY
(a) Park the vehicle in a cool place.
(b) Check that the temperature of the radio receiver becomes sufficiently low, and start the engine. Check that the malfunction disappears.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
