Audio and Visual System (W/O Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): 62-41: Wrong Disc

DTC 62-41 - Wrong Disc

DTC 62-42 - Disc cannot be Read

DTC 63-41 - Wrong Disc

DTC 63-42 - Disc cannot be Read

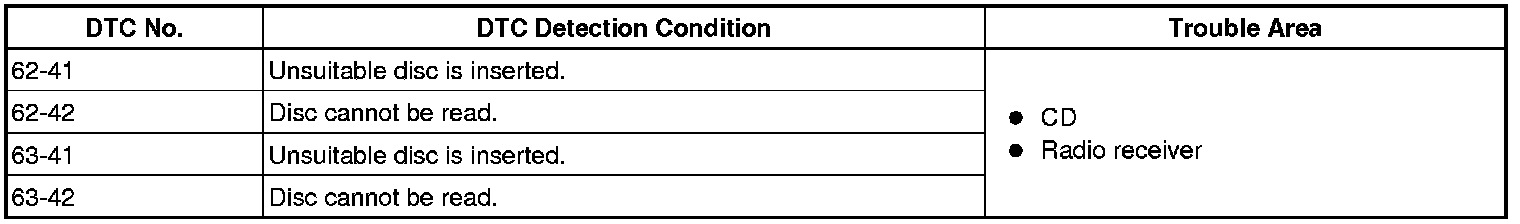

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. DISC CLEANING




(a) Disc cleaning
(1) If dirt is on the disc surface, wipe it with a soft cloth from inside to outside in a radial direction.
NOTE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

2. CHECK DISC




(a) Check that the disc is not deformed or cracked.
OK:
No deformation or cracks on the disc.
NG -- DISC IS FAULTY
OK -- Continue to next step.

3. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc with another and recheck.
(1) Replace the disc with a normal one.
(2) Clear DTC Audio and Visual System (W/O Multi-display).
(3) Recheck DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
