DTC 5C-81

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1648/5C-81: G Sensor Invalid

DTC C1648/5C-81 - G Sensor Invalid

DESCRIPTION

When the television camera controller's self-diagnosis determines that the brake system's G sensor (connected via CAN communication) is invalid, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

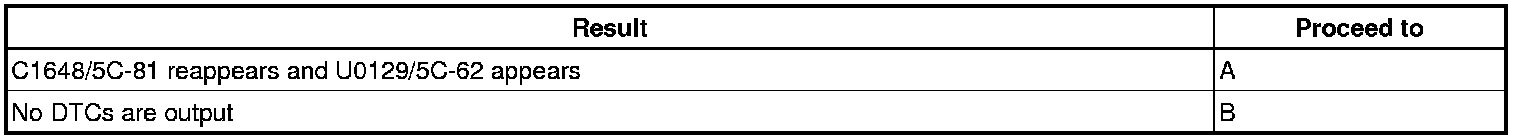

Result





HINT: Even if this DTC is output, advanced parking guidance steering angle control is performed (only engine rpm control is not performed).

B -- USE SIMULATION METHOD TO CHECK
A -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM
