PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1695/5C-7E: Zero Point Calibration of Vehicle Height Sensor Incomplete

DTC C1695/5C-7E - Zero Point Calibration of Vehicle Height Sensor Incomplete

DESCRIPTION

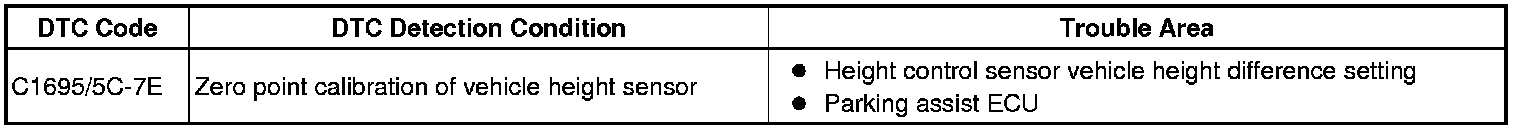

When the parking assist ECU's self-diagnosis determines that the vehicle height sensor zero point calibration (height control sensor vehicle height difference setting) is incomplete, this DTC is output.






INSPECTION PROCEDURE
NOTE:
When replacing the parking assist ECU, perform initialization of the television camera and calibration of the steering angle sensor and height control sensor.

PROCEDURE

1. ADJUST HEIGHT CONTROL SENSOR HEIGHT
(a) Perform the height control sensor vehicle height difference setting Calibration.
NEXT -- Continue to next step.

2. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

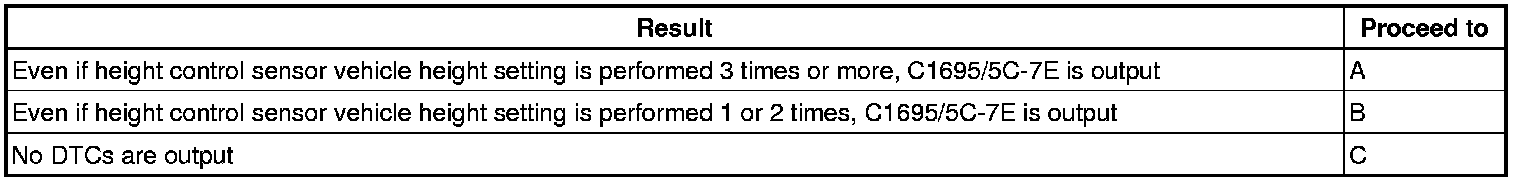

Result





C -- USE SIMULATION METHOD TO CHECK
B -- ADJUST HEIGHT CONTROL SENSOR HEIGHT
A -- REPLACE PARKING ASSIST ECU
