DTC 5C-73

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1646/5C-72: Power Steering Control System Invalid

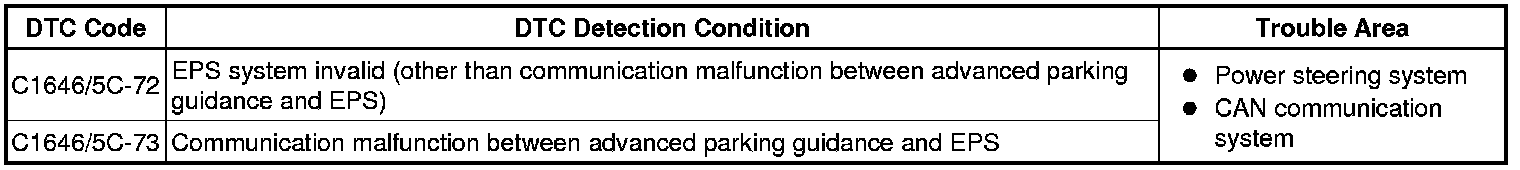

DTC C1646/5C-72 - Power Steering Control System Invalid

DTC C1646/5C-73 - Power Steering Control System Invalid

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the power steering system (connected via CAN communication) is invalid, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (USING TECHSTREAM)
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

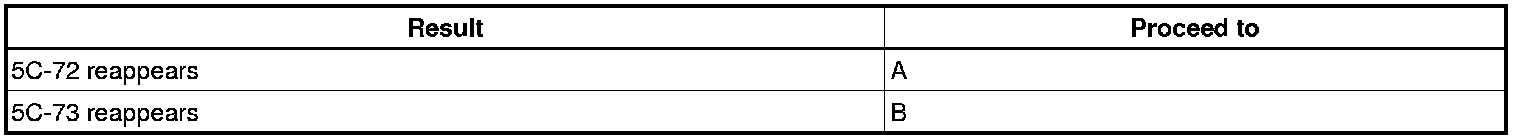

Result





B -- USE SIMULATION METHOD TO CHECK
A -- Continue to next step.

2. CHECK DTC OUTPUT (USING MULTI-DISPLAY)
(a) Enter the "Diagnosis Menu" from the multi-display Advanced Parking Guidance System.
(b) Check the code.

Result





B -- GO TO CAN COMMUNICATION SYSTEM
A -- GO TO POWER STEERING SYSTEM
