DTC 5C-71

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1645/5C-71: Power Steering Control System Failure

DTC C1645/5C-71 - Power Steering Control System Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the power steering system (connected via CAN communication) is malfunctioning, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

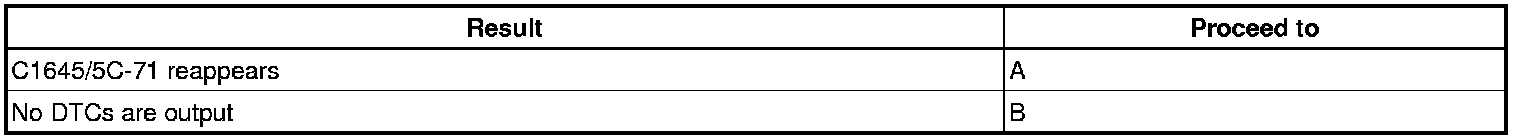

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO POWER STEERING SYSTEM
