DTC 5C-43

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1649/5C-43: VGRS Failure

DTC C1649/5C-43 - VGRS Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the VGRS system's steering control ECU (connected via CAN communication) is malfunctioning, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

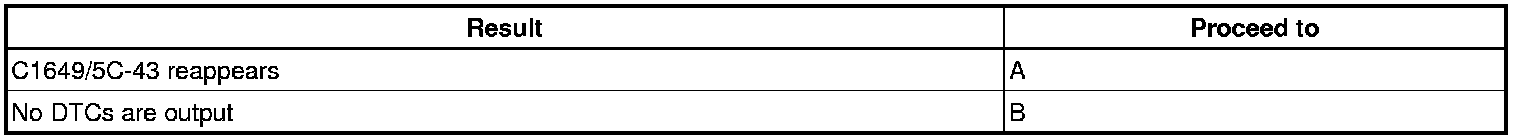

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO VARIABLE GEAR RATIO STEERING SYSTEM
