NAVIGATION: NAVIGATION SYSTEM (for HDD): 5C-40: Camera Picture Error

DTC 5C-40 - Camera Picture Error

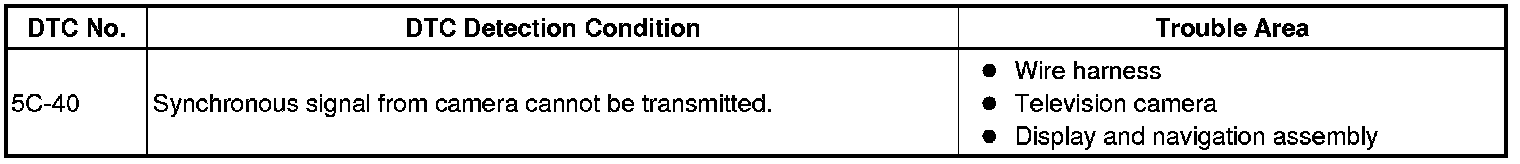

DESCRIPTION

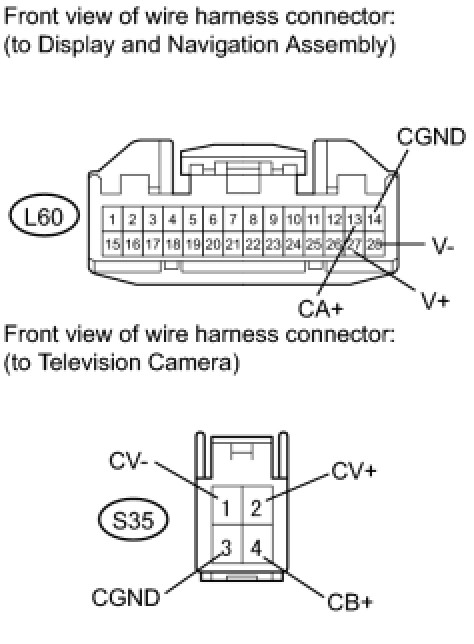

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for HDD).

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION ASSEMBLY - TELEVISION CAMERA)

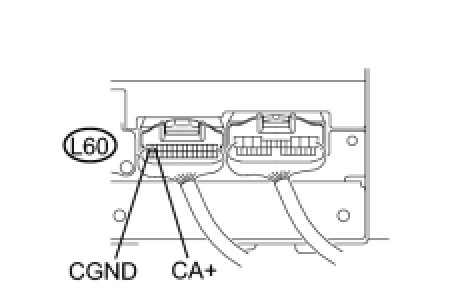

(a) Disconnect the L60 display connector.
(b) Disconnect the S35 camera connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK DISPLAY AND NAVIGATION ASSEMBLY (CA+ VOLTAGE)




(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE DISPLAY AND NAVIGATION ASSEMBLY
OK -- REPLACE TELEVISION CAMERA ASSEMBLY
