Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): 5C-40: Camera Picture Error

DTC 5C-40 - Camera Picture Error

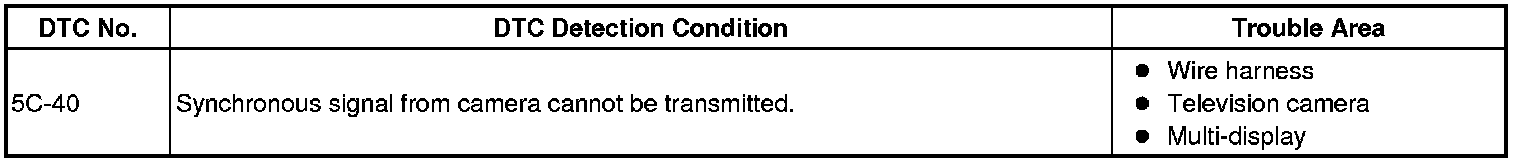

DESCRIPTION





WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for DVD).

PROCEDURE

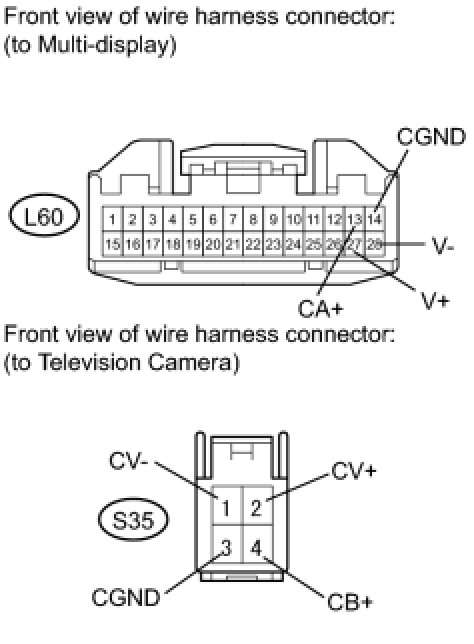

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA)




(a) Disconnect the L60 display connector.
(b) Disconnect the S35 camera connector.

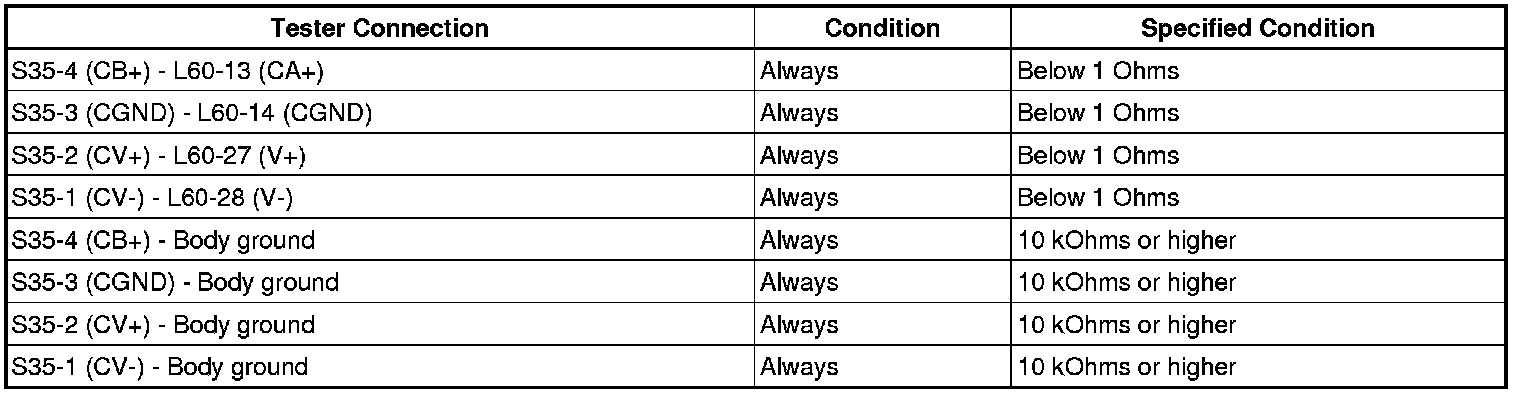

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

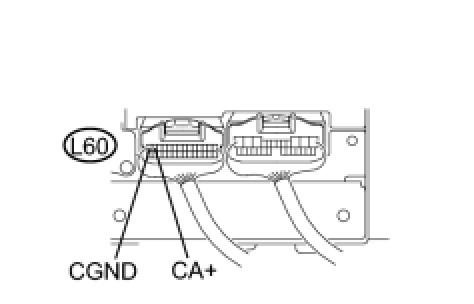

2. CHECK MULTI-DISPLAY (CA+ VOLTAGE)




(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE MULTI-DISPLAY
OK -- REPLACE TELEVISION CAMERA ASSEMBLY
