NAVIGATION: NAVIGATION SYSTEM (for HDD): 58-40: GPS Antenna Error

DTC 58-40 - GPS Antenna Error

DTC 58-41 - GPS Antenna Power Source Error

DTC 80-40 - GPS Antenna Error

DTC 80-41 - GPS Antenna Power Source Error

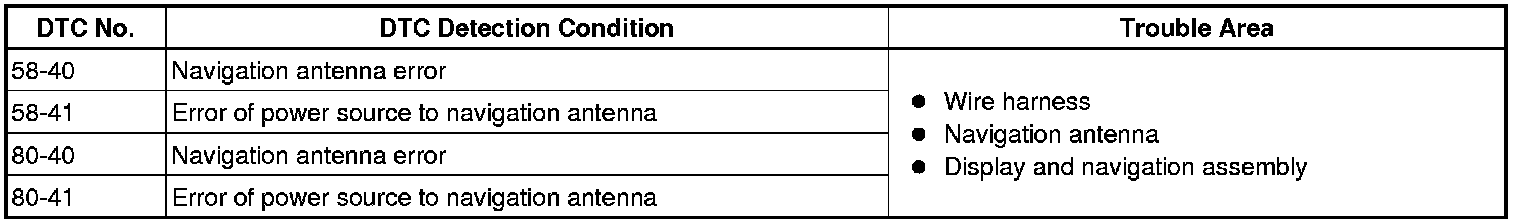

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for HDD).

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION ANTENNA - DISPLAY AND NAVIGATION ASSEMBLY)
(a) Check that the navigation antenna cord is securely connected to the display and navigation assembly.
OK:
The cord is securely connected.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. REPLACE NAVIGATION ANTENNA
(a) Replace the navigation antenna Removal with a normal one and check if the same problem occurs again.
(1) Clear the DTCs Navigation System (for HDD).
(2) Recheck for DTCs and check if the same trouble occurs again.
OK:
Same problem does not occur.
NG -- REPLACE DISPLAY AND NAVIGATION ASSEMBLY
OK -- END
