Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): 45-45: Eject Error

DTC 45-45 - Eject Error

DTC 45-51 - Elevator Error

DTC 45-52 - Clamp Error

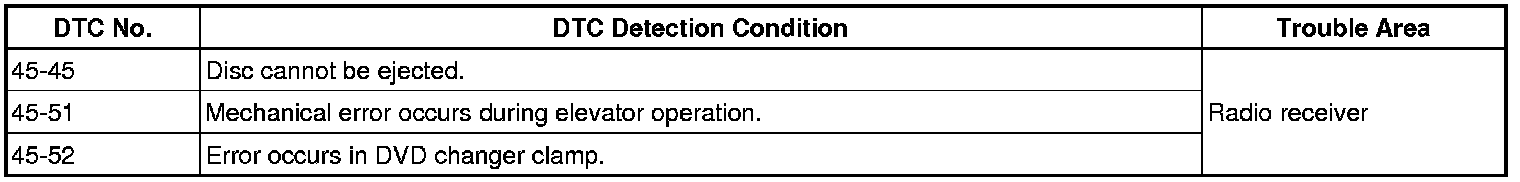

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for DVD).

PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY
(a) Check if a disc can be changed, inserted, or ejected normally.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
