Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): 34-10: Error in Picture Circuit

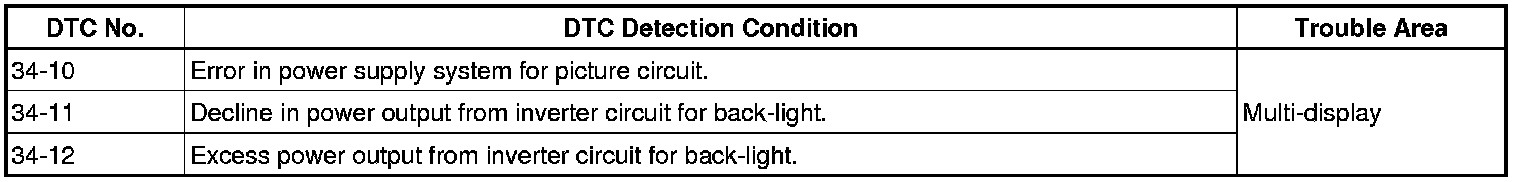

DTC 34-10 - Error in Picture Circuit

DTC 34-11 - No Current in Back-light

DTC 34-12 - Excess Current in Back-light

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for DVD).

PROCEDURE

1. REPLACE MULTI-DISPLAY
(a) Replace the multi-display Removal.
NEXT -- END
