Audio and Visual System (W/ Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/ Multi-display): 34-10: Error in Picture Circuit

DTC 34-10 - Error in Picture Circuit

DTC 34-11 - No Current in Back-light

DTC 34-12 - Excess Current in Back-light

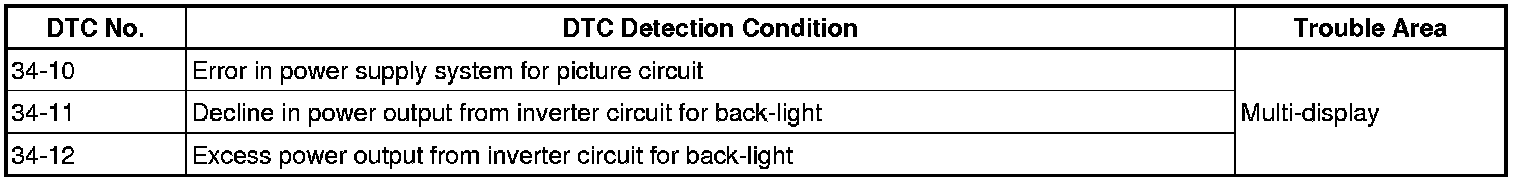

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. REPLACE MULTI-DISPLAY
(a) Replace the multi-display Removal.
NEXT -- END
