Variable Gear Ratio Steering System








STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Variable Gear Ratio Steering System

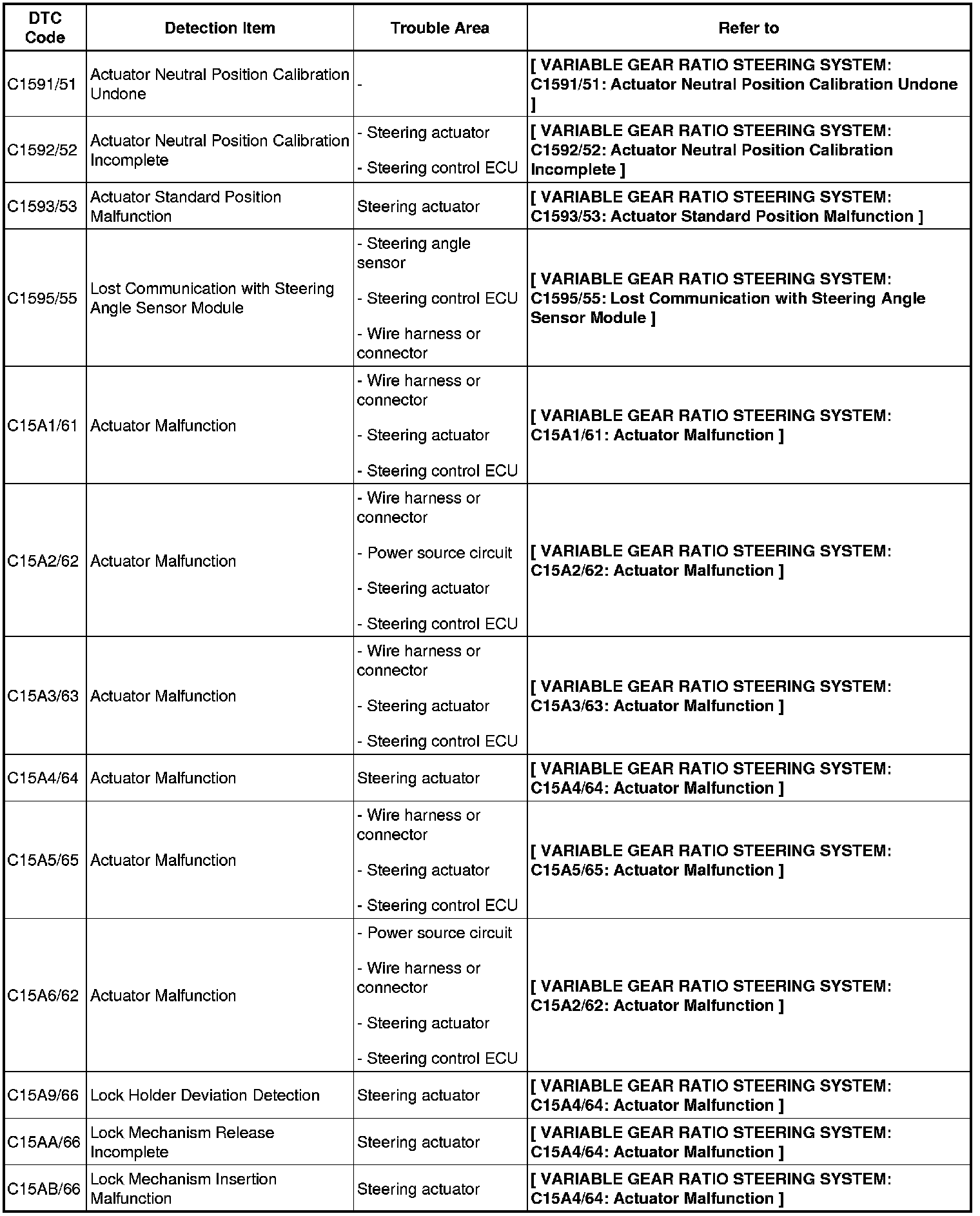

C1591/51-C15AB/66:

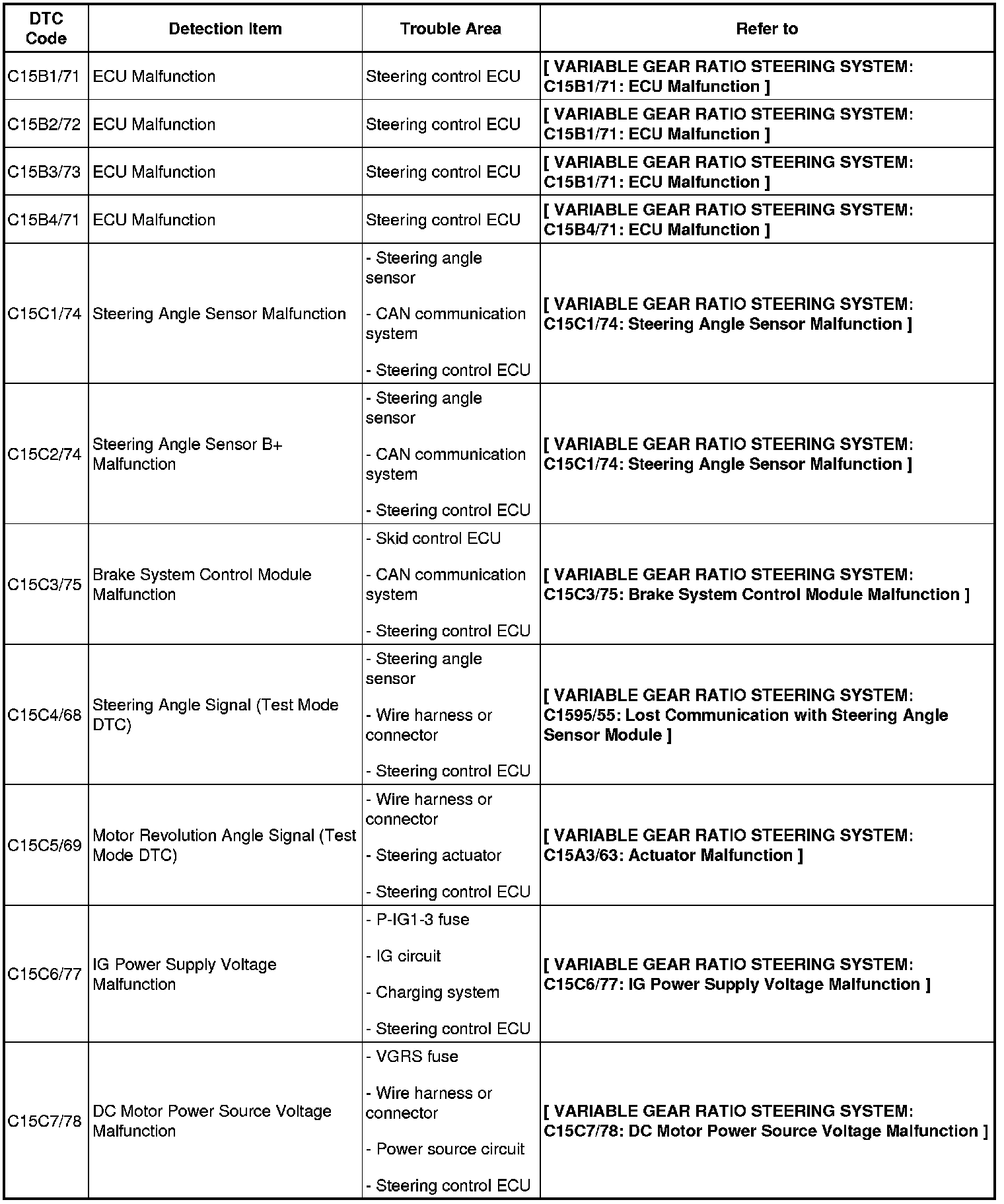

C15B1/71-C15C7/78:

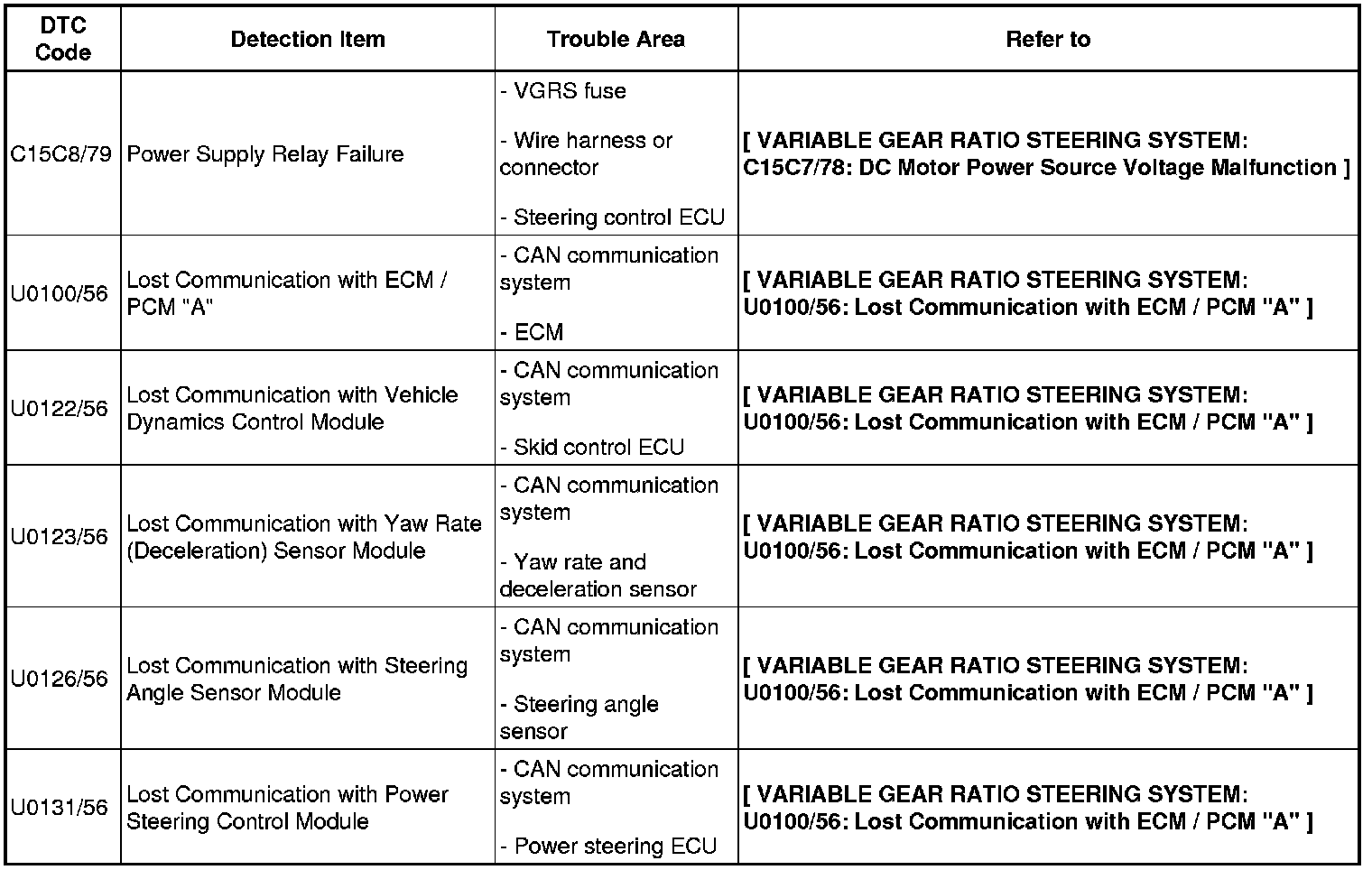

C15C8/79/U0100/56-U0131/56:
