Tire Pressure Warning System








TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Tire Pressure Warning System

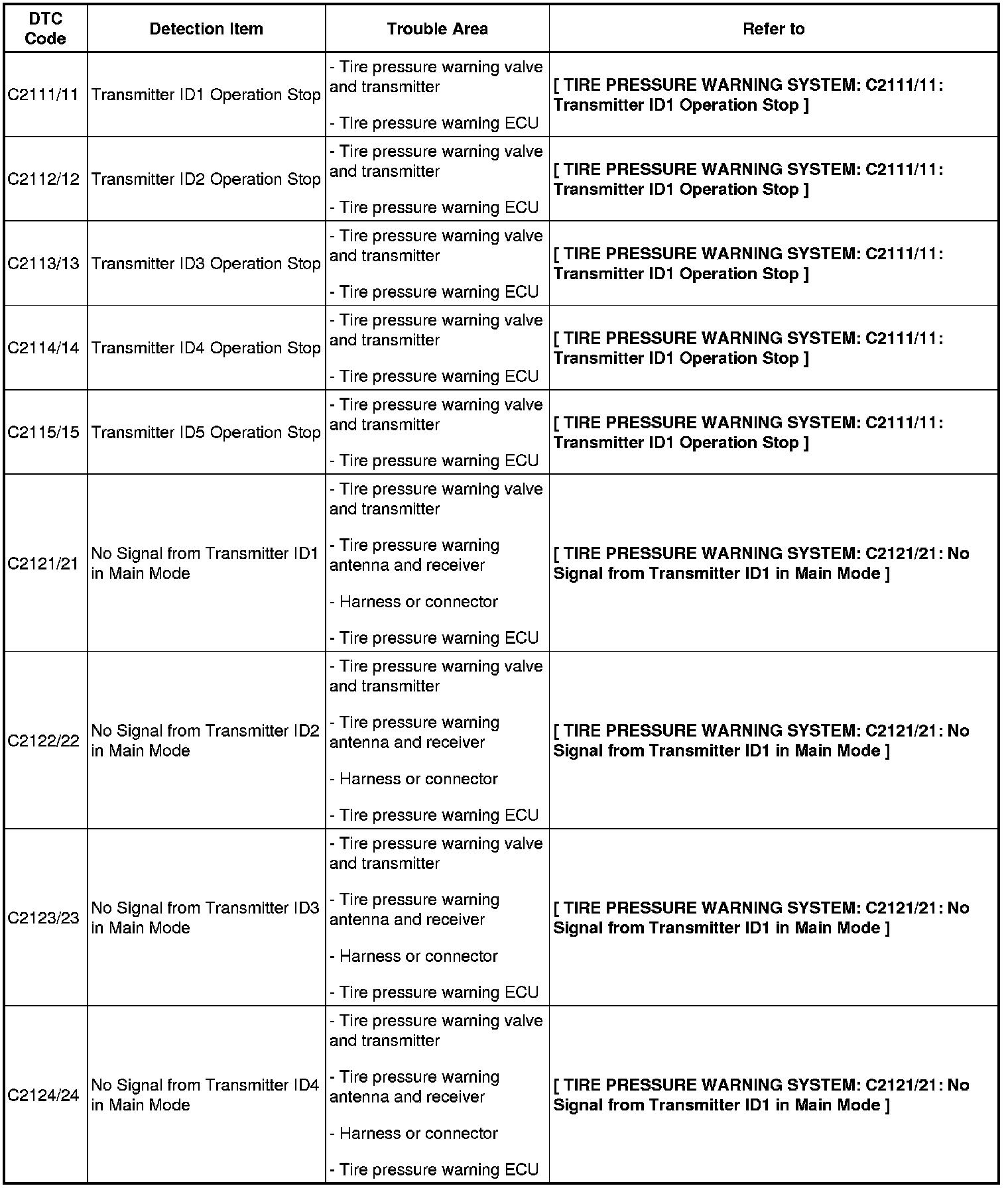

C2111/11-C2124/24:

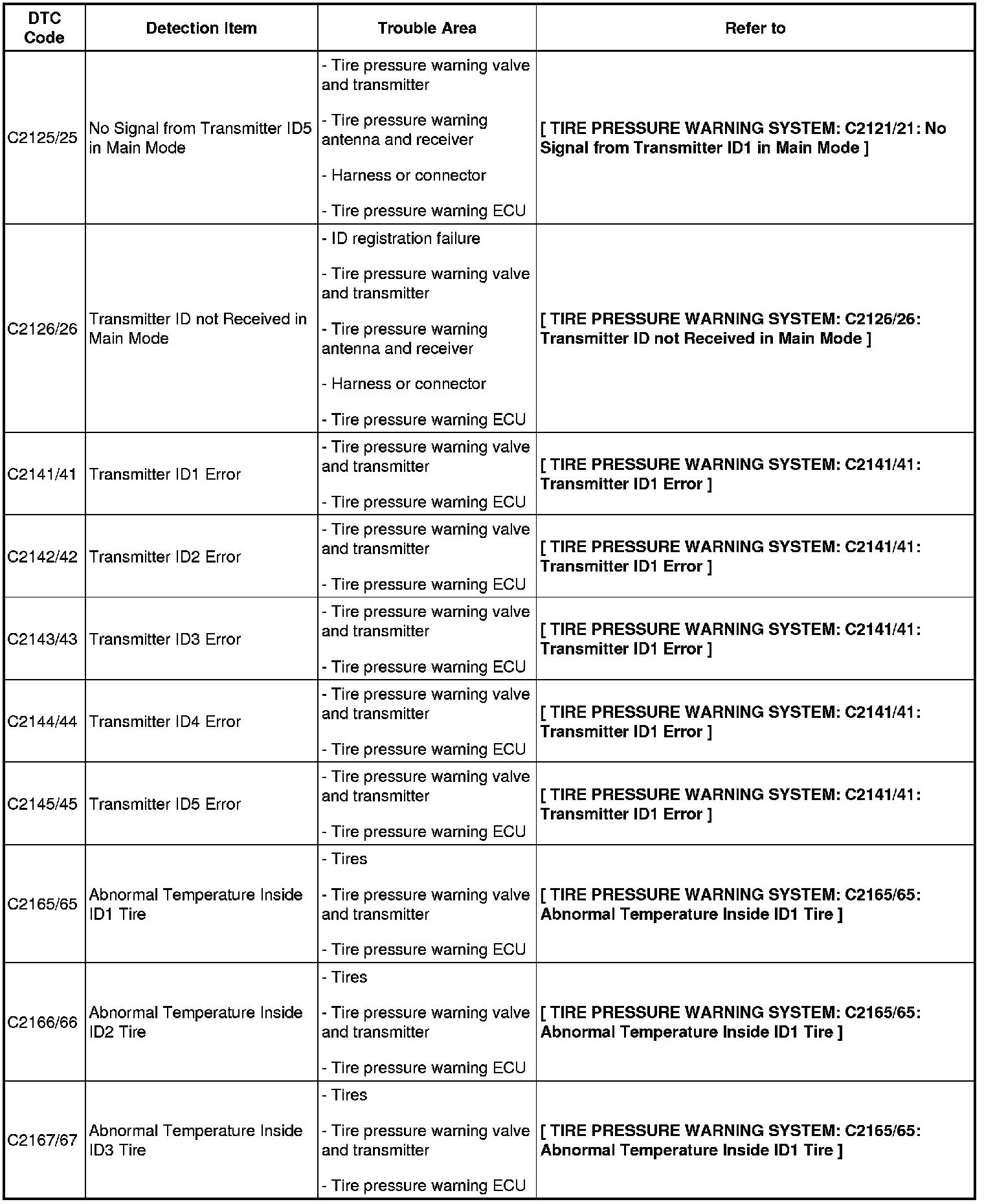

C2125/25-C2167/67:

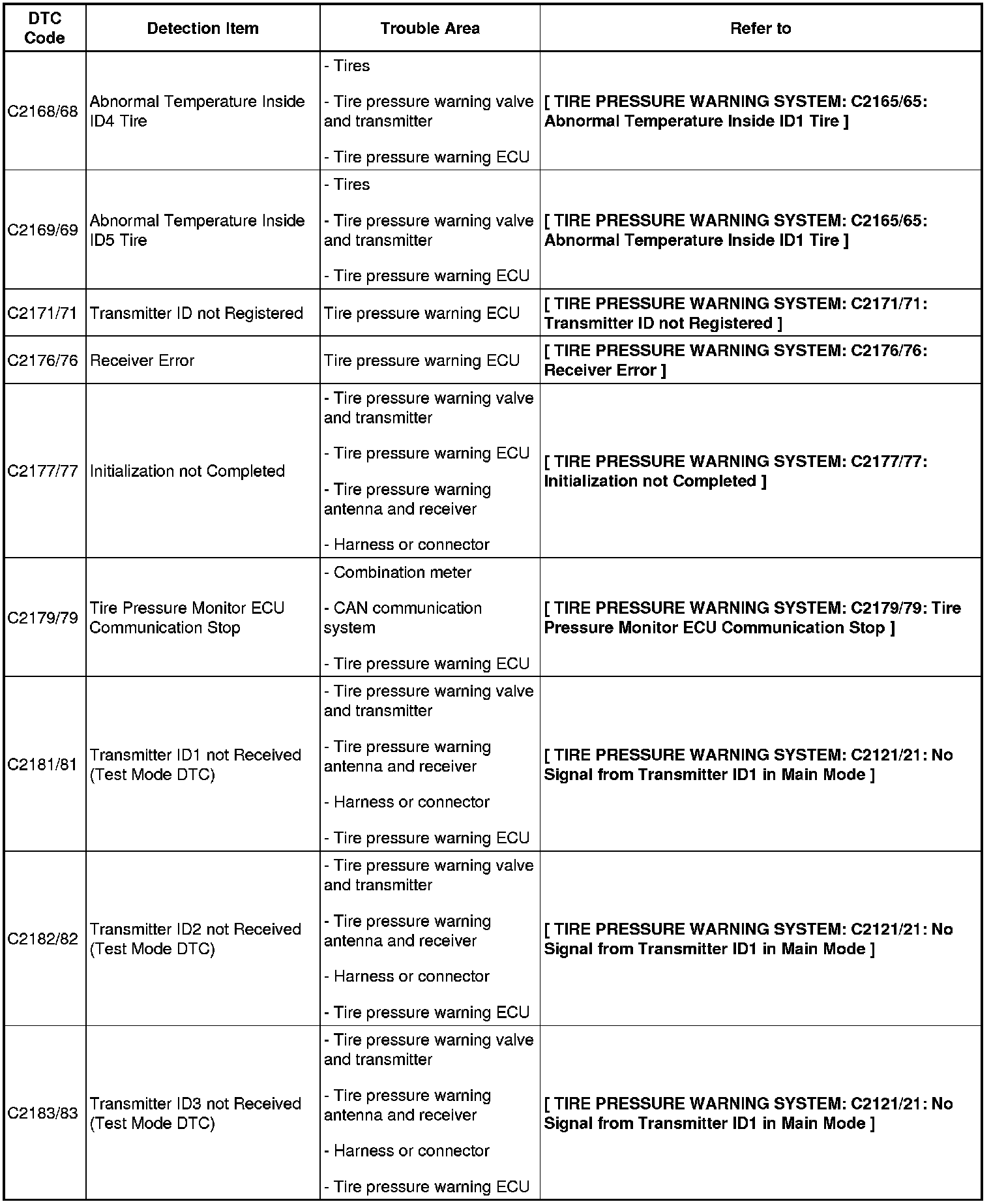

C2168/68-C2183/83:

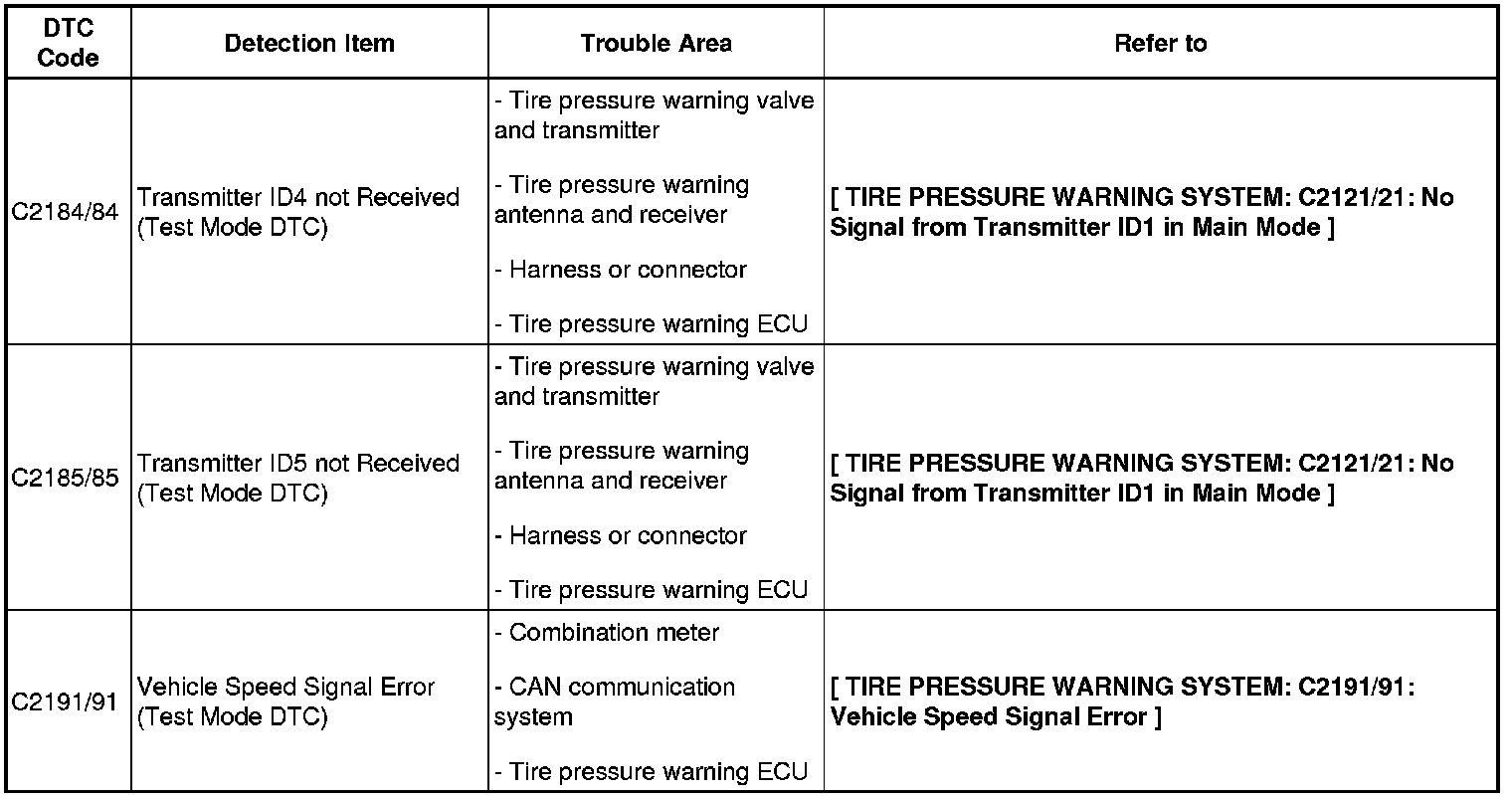

C2184/84-C2191/91:
