Steering Lock System

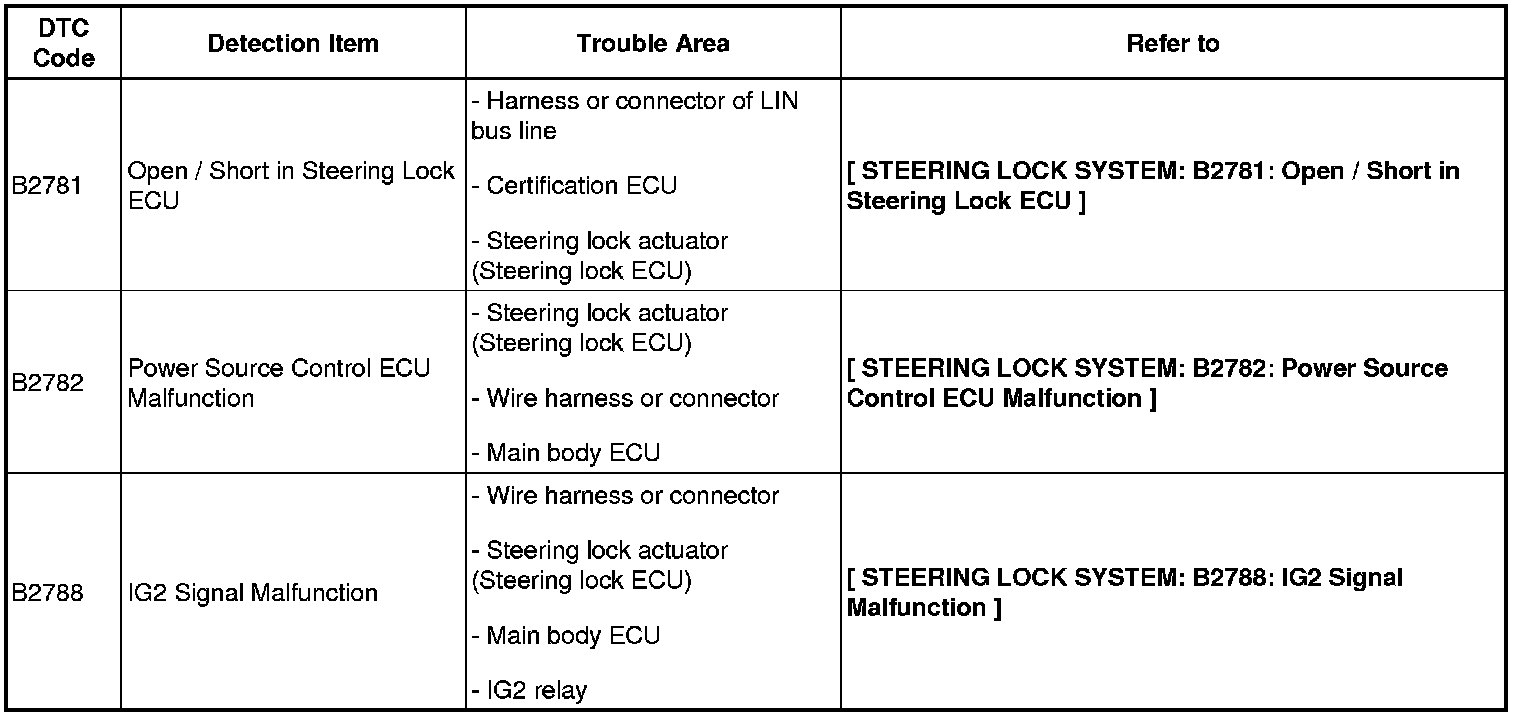

STEERING COLUMN: STEERING LOCK SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Steering lock system

B2681-B2788:
