Smart Access System With Push-Button Start








1UR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Smart access system with push-button start

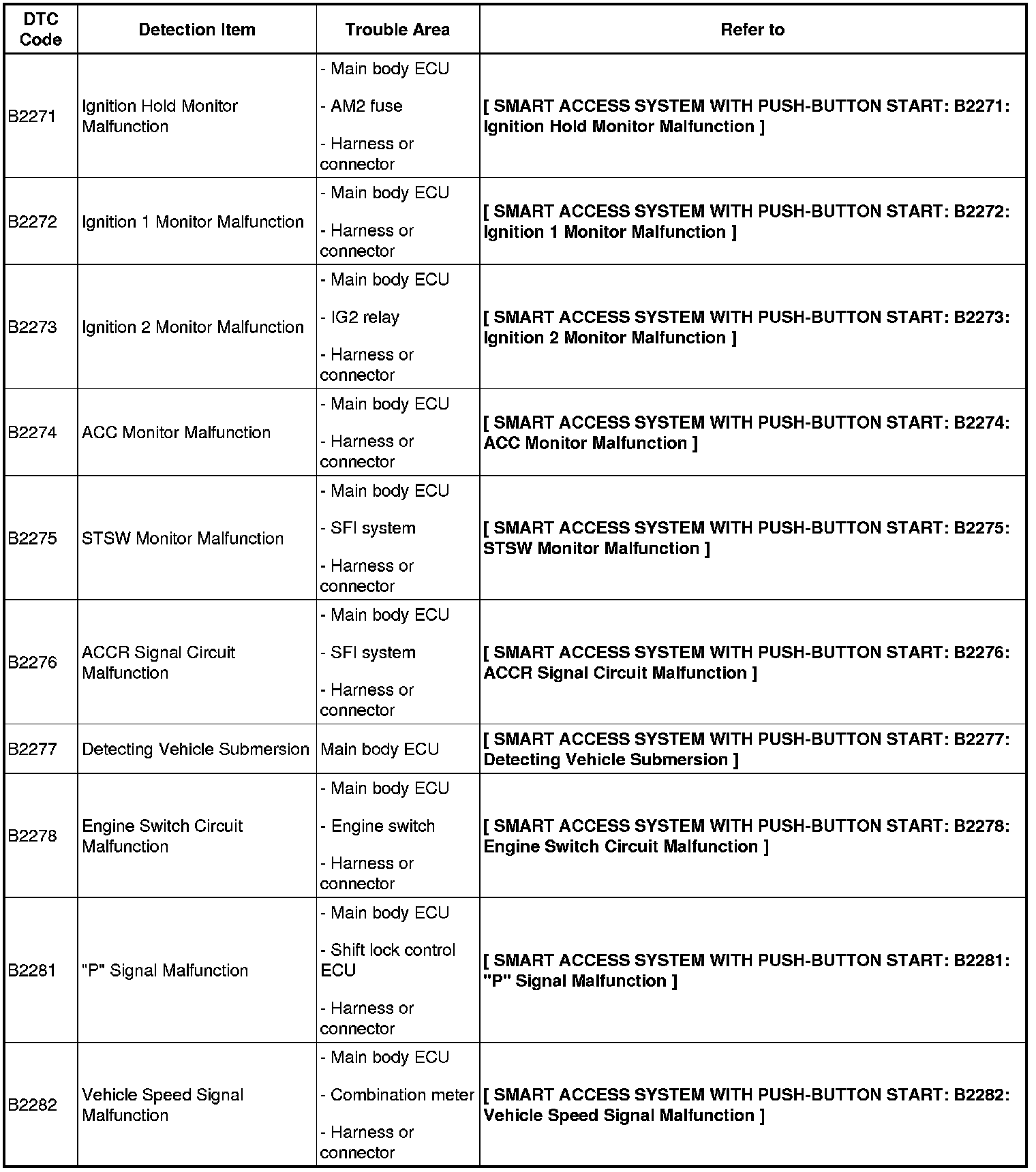

B2271-B2282:

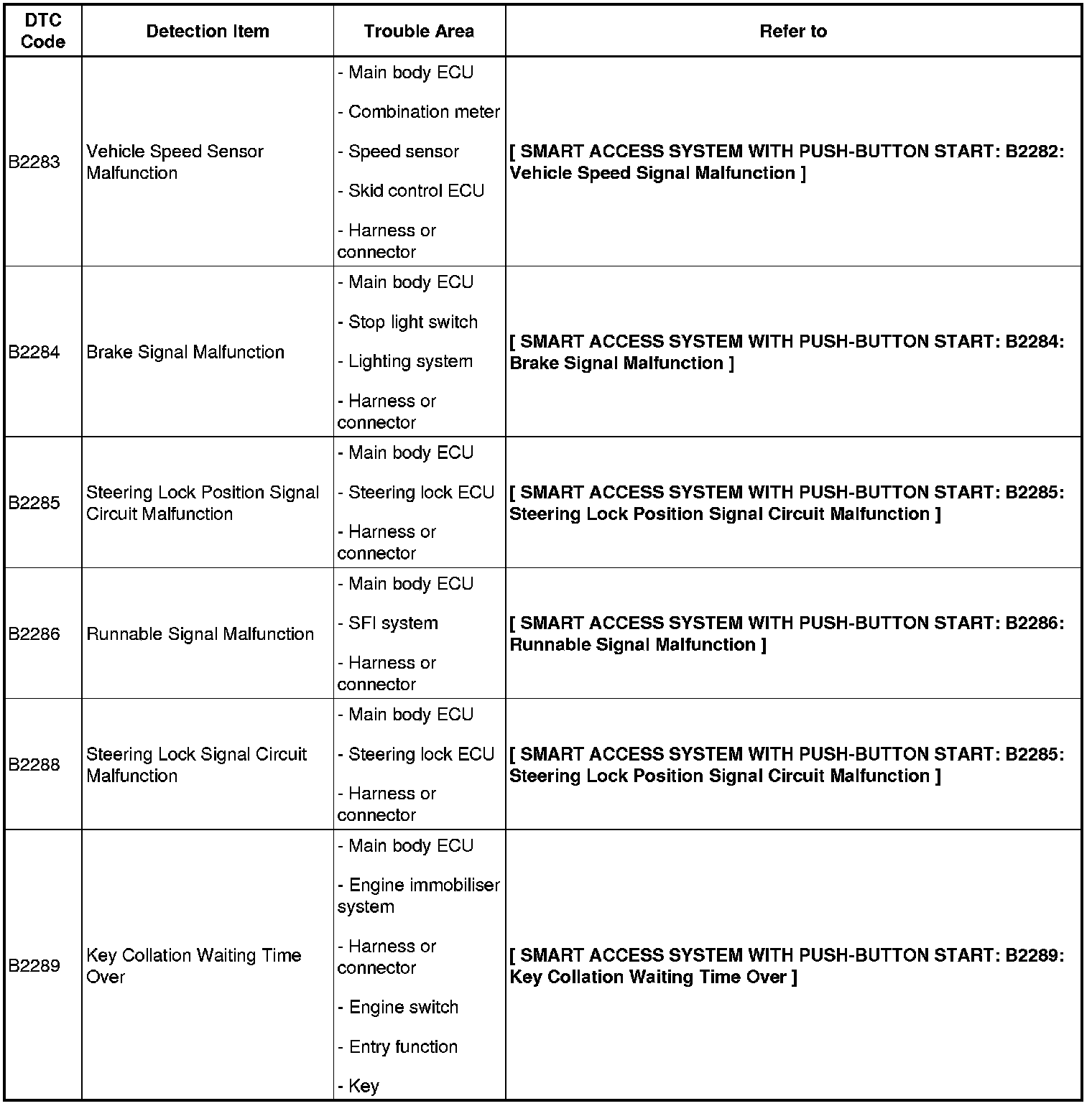

B2283-B2289:
