Power Steering System








POWER STEERING: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Power steering system diagnostic trouble code chart

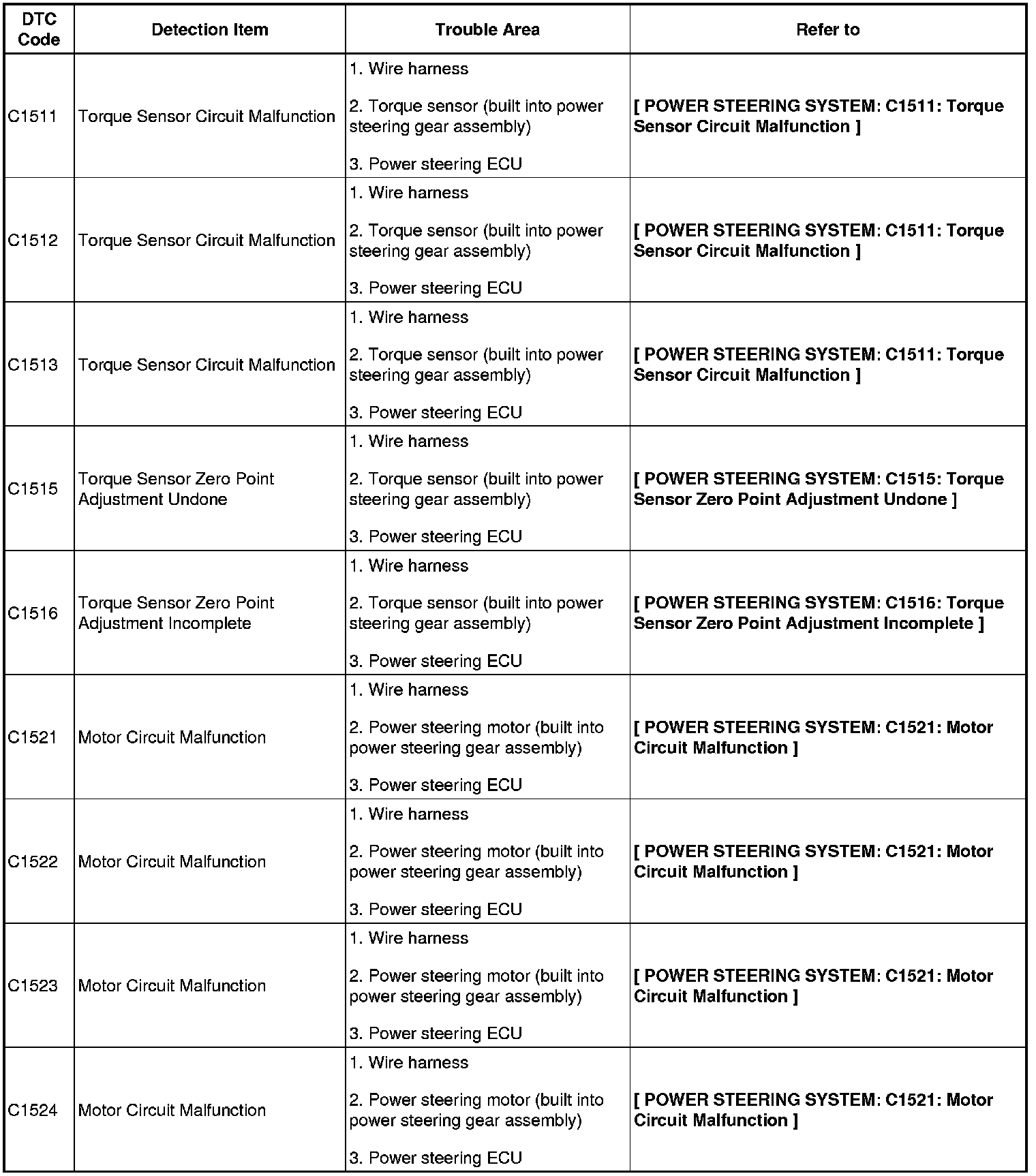

C1511-C1524:

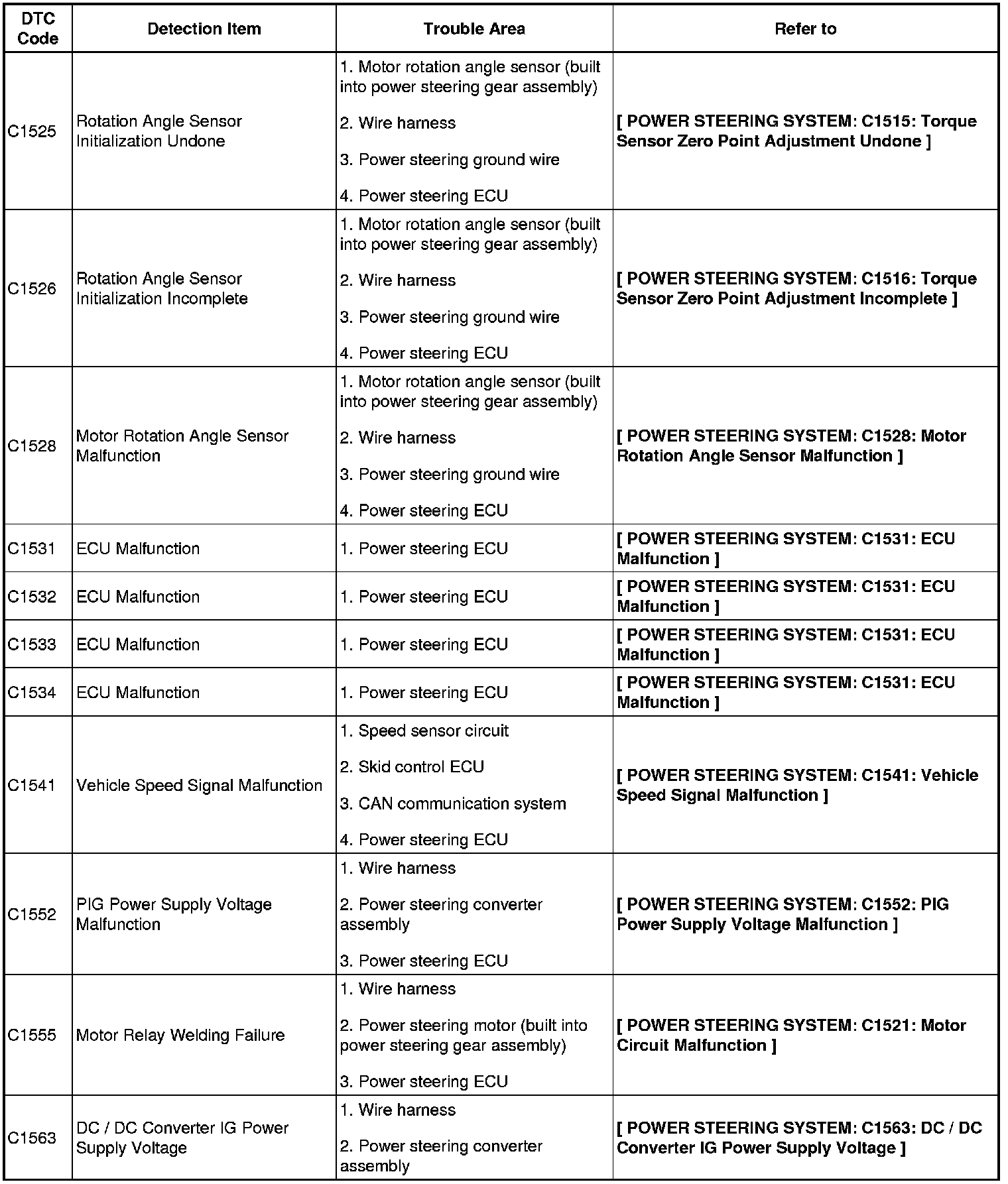

C1525-C1563:

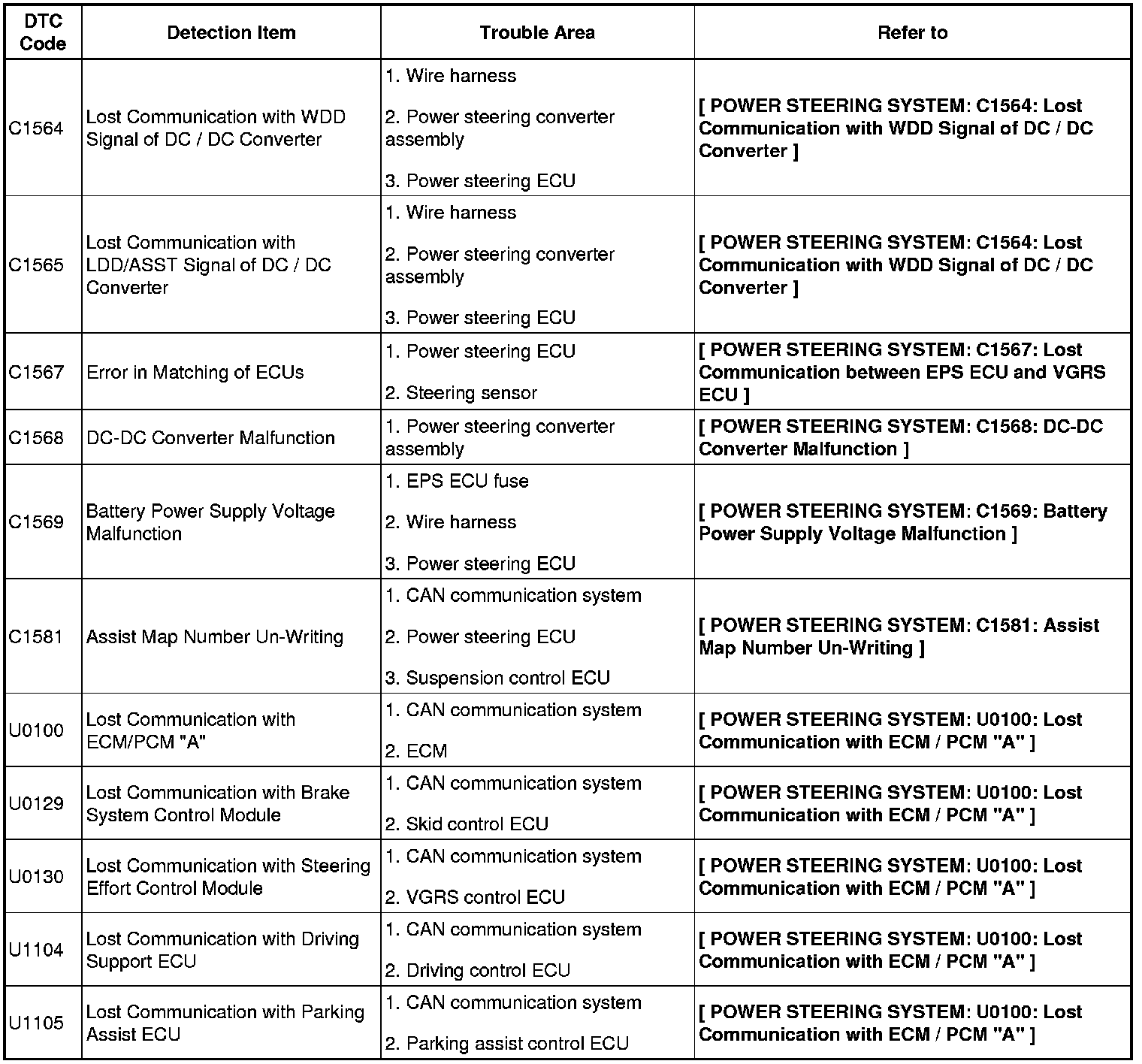

C1564-C1581/U0100-U1105:
