Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Navigation system

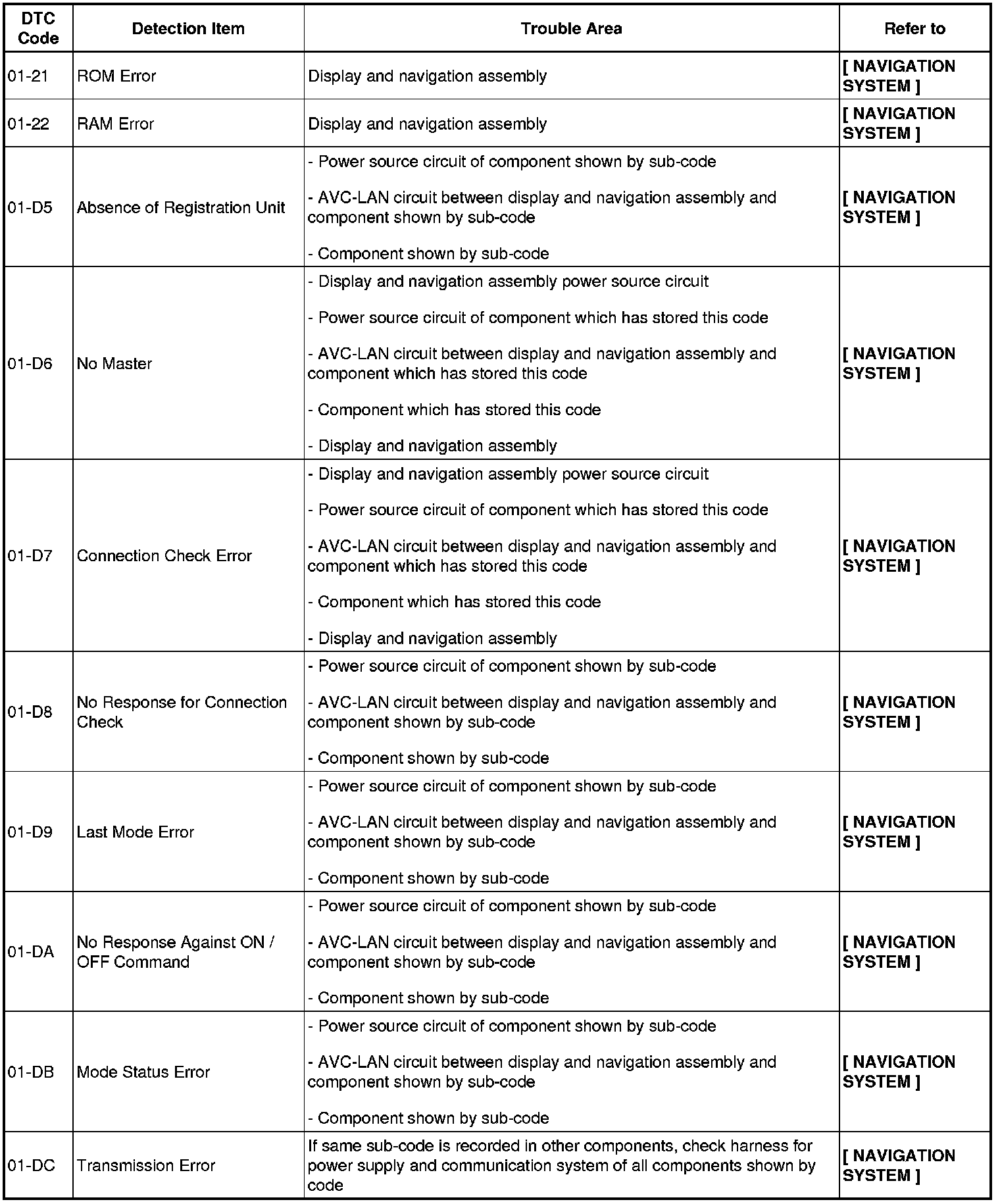

DTC 01-21-01-DC:

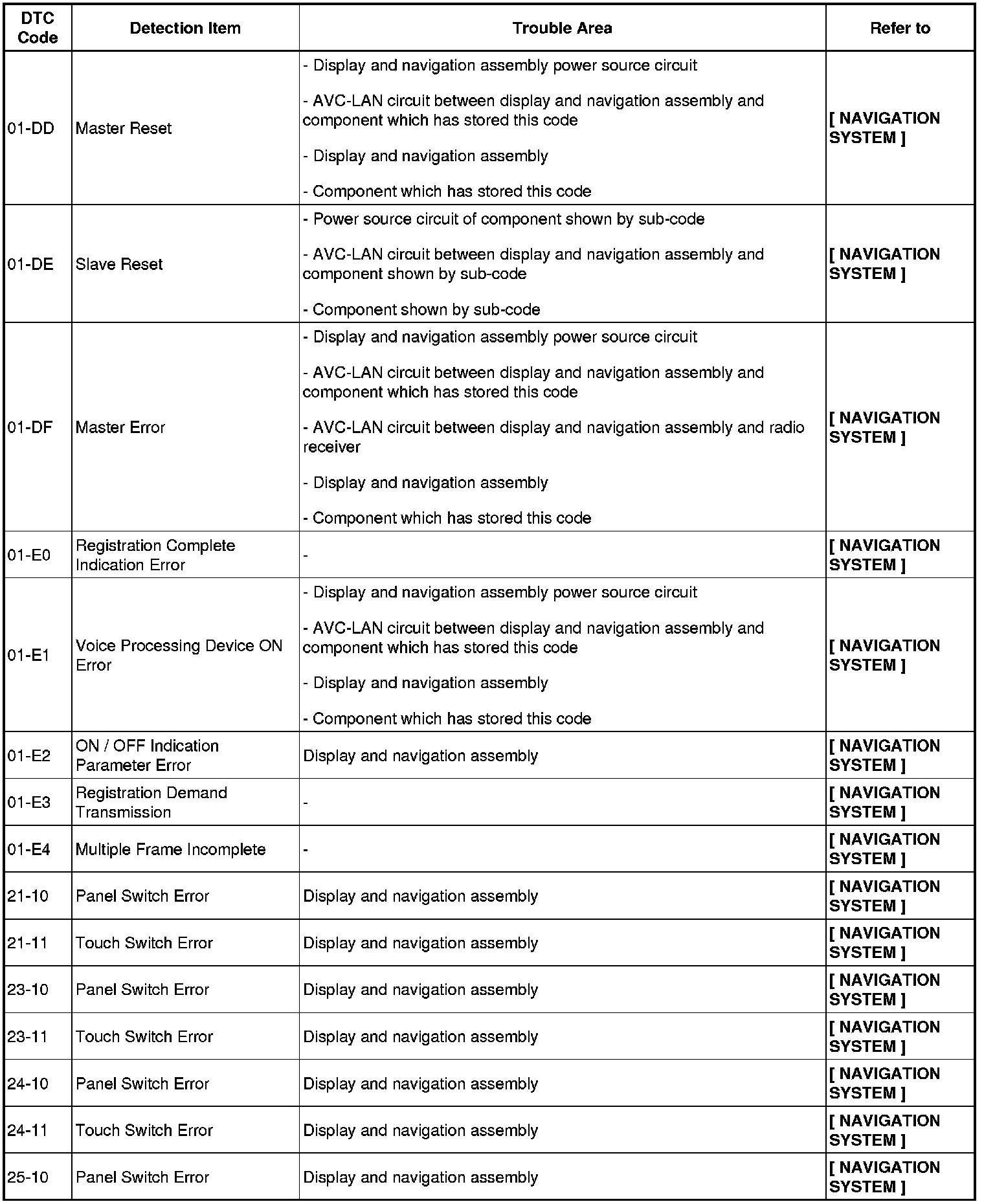

DTC 01-DD-25-10:

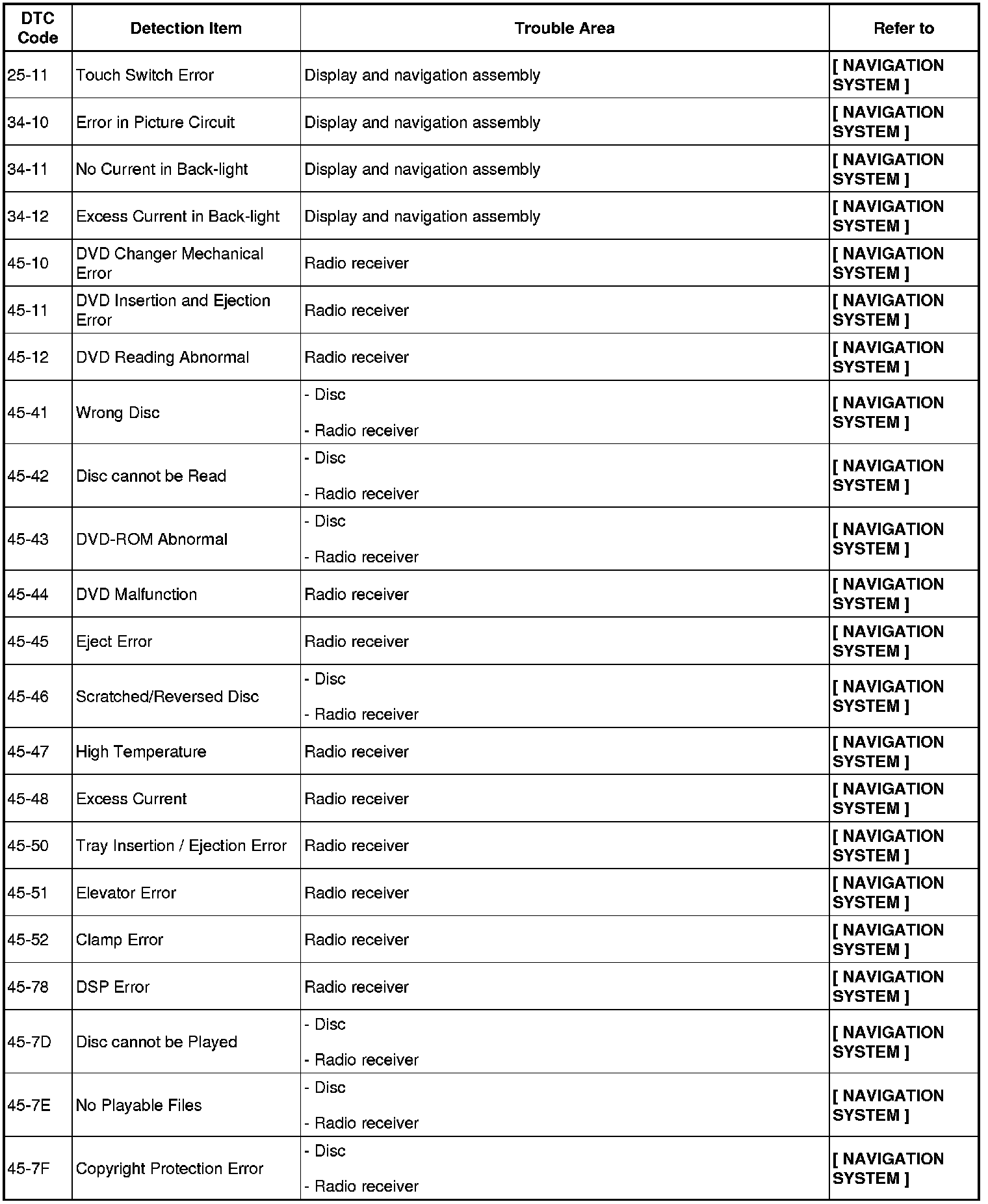

DTC 25-11-45-7F:

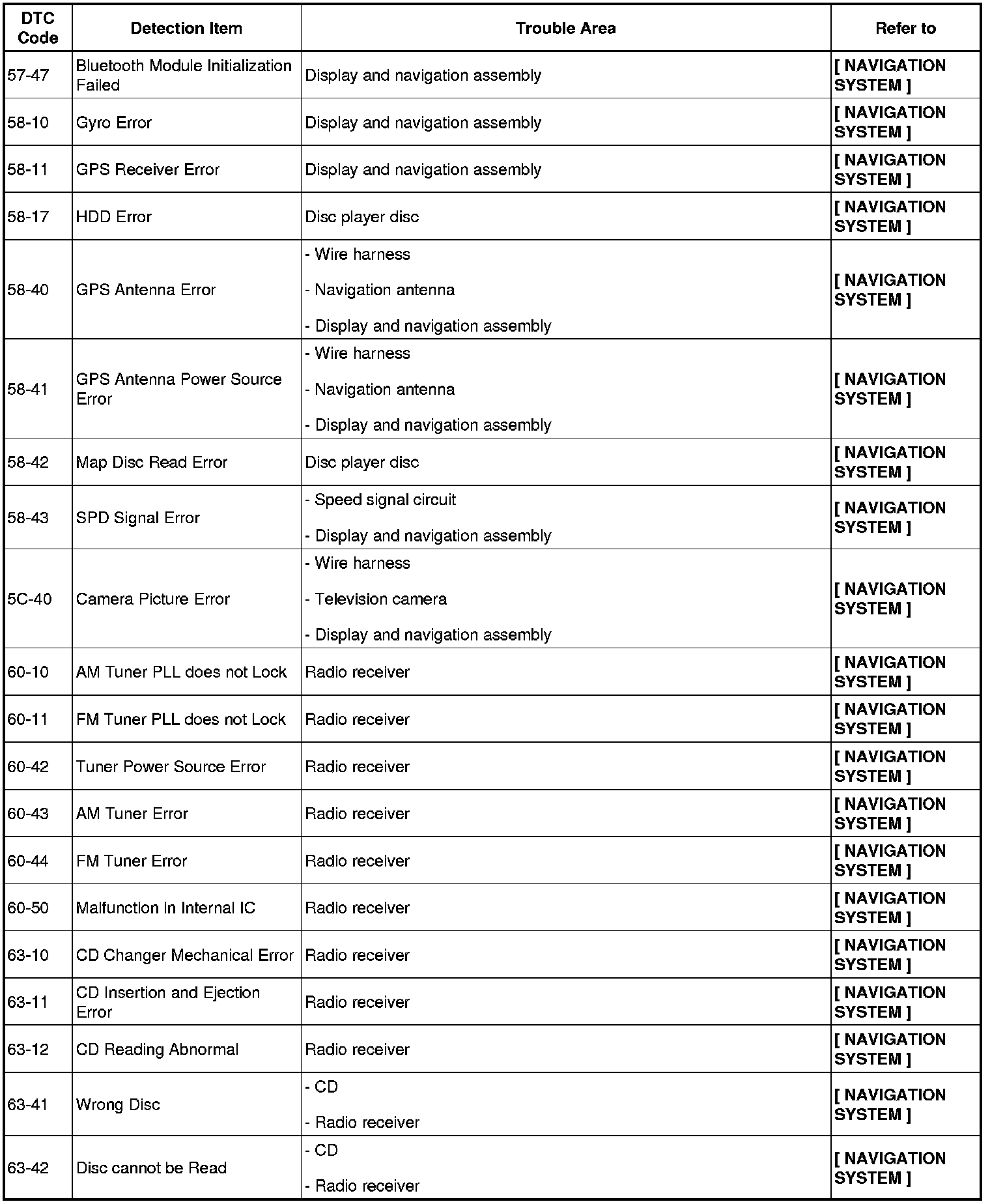

DTC 57-47-63-42:

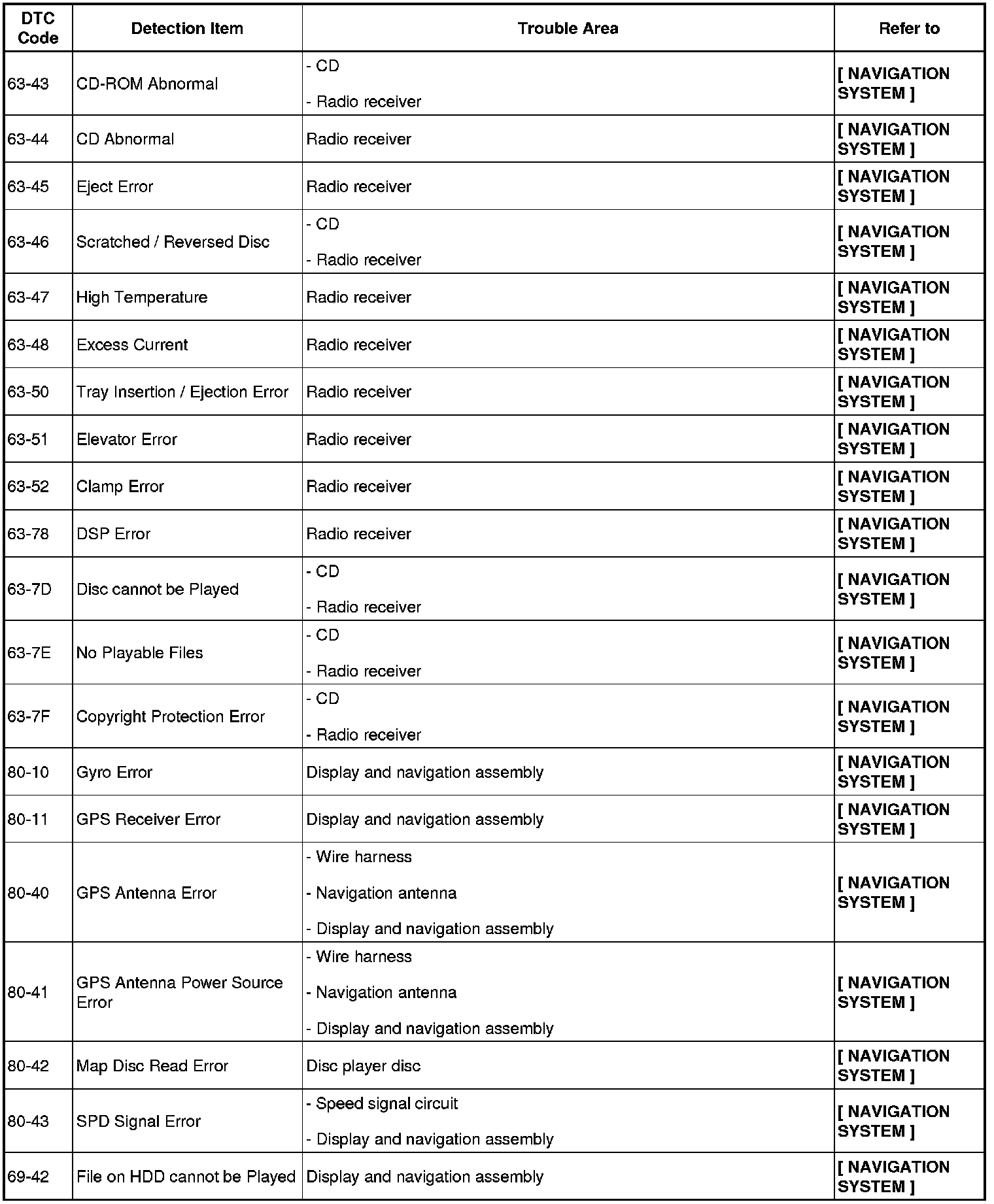

DTC 63-43-69-42:

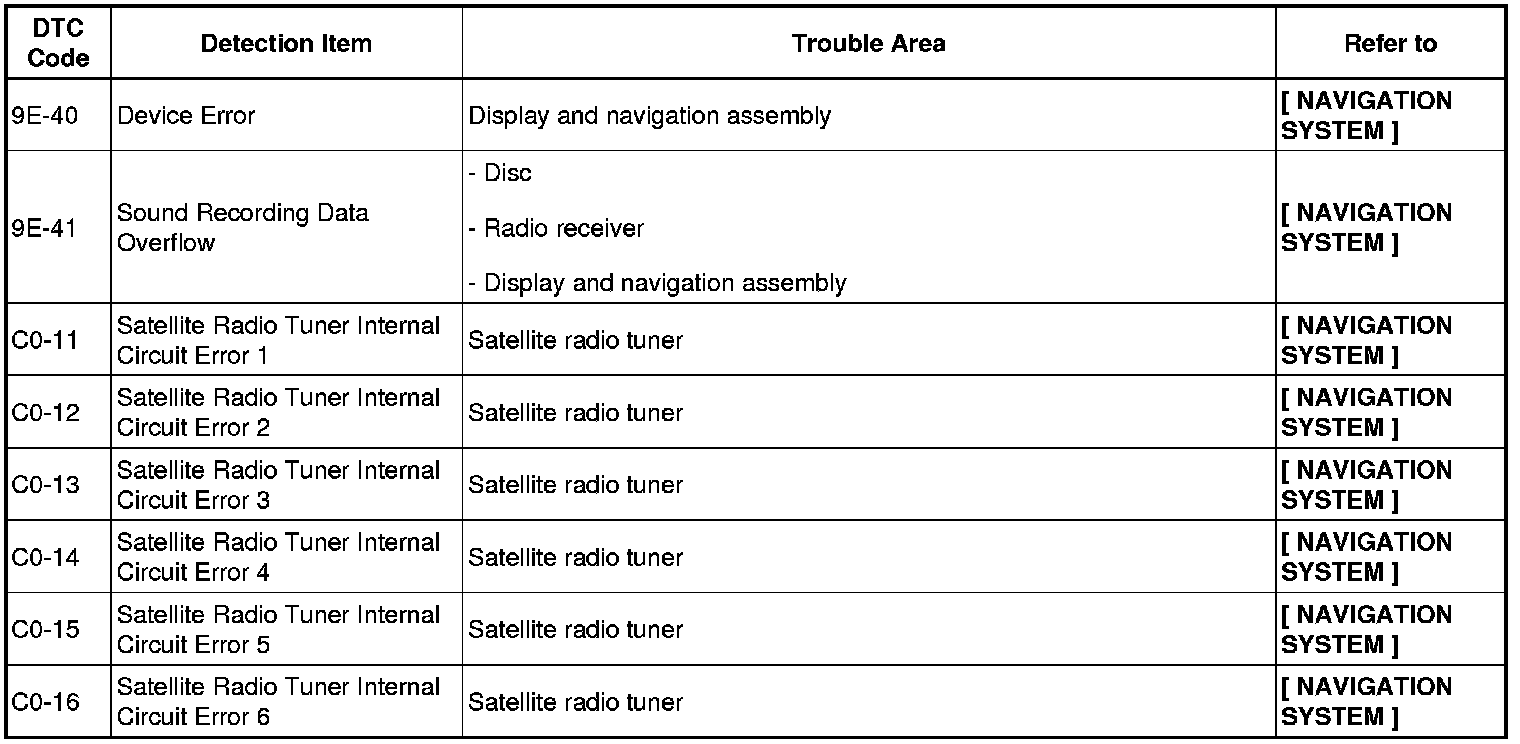

DTC 9E-40-C0-16:
