Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Navigation system

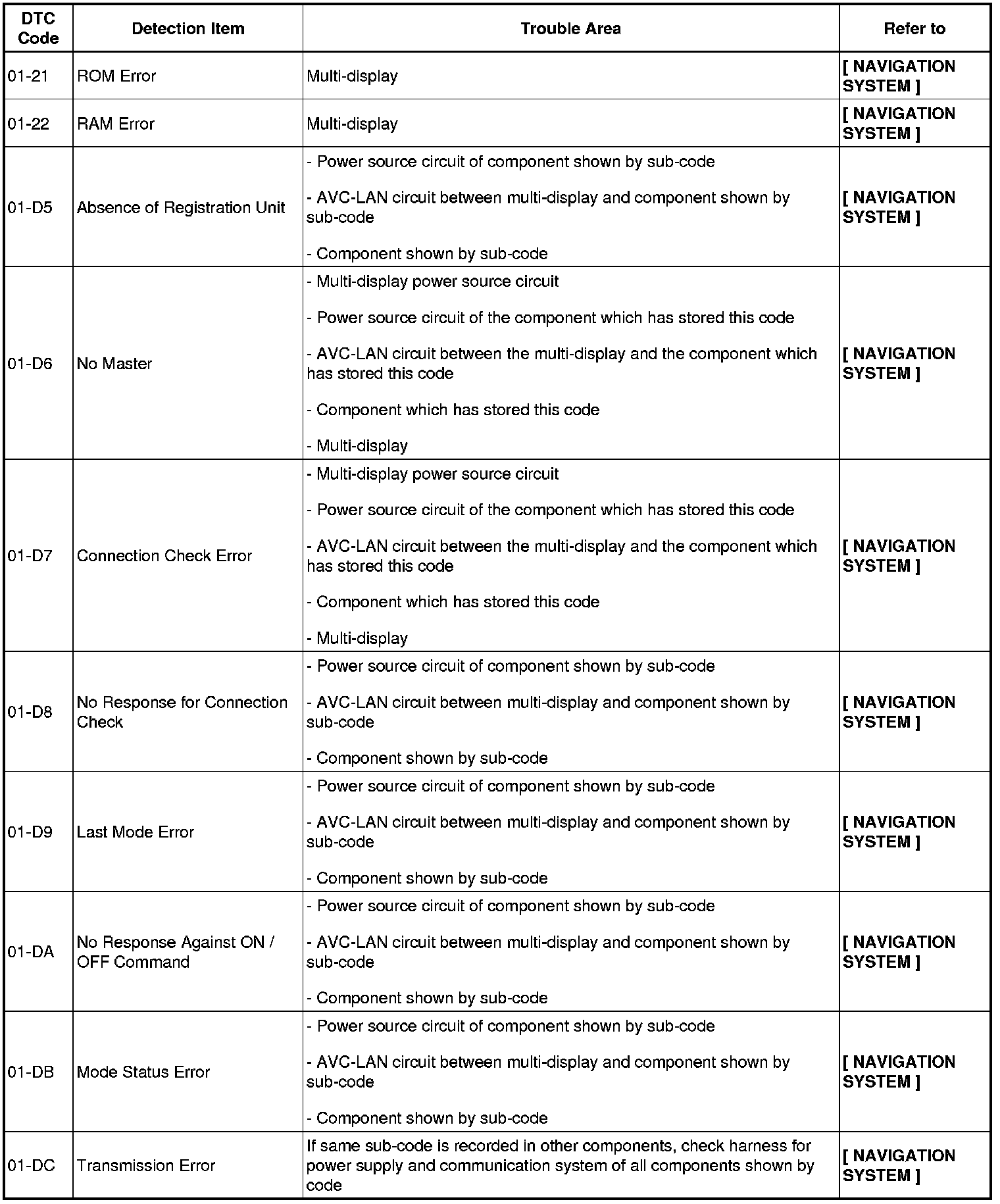

DTC 01-21-01-DC:

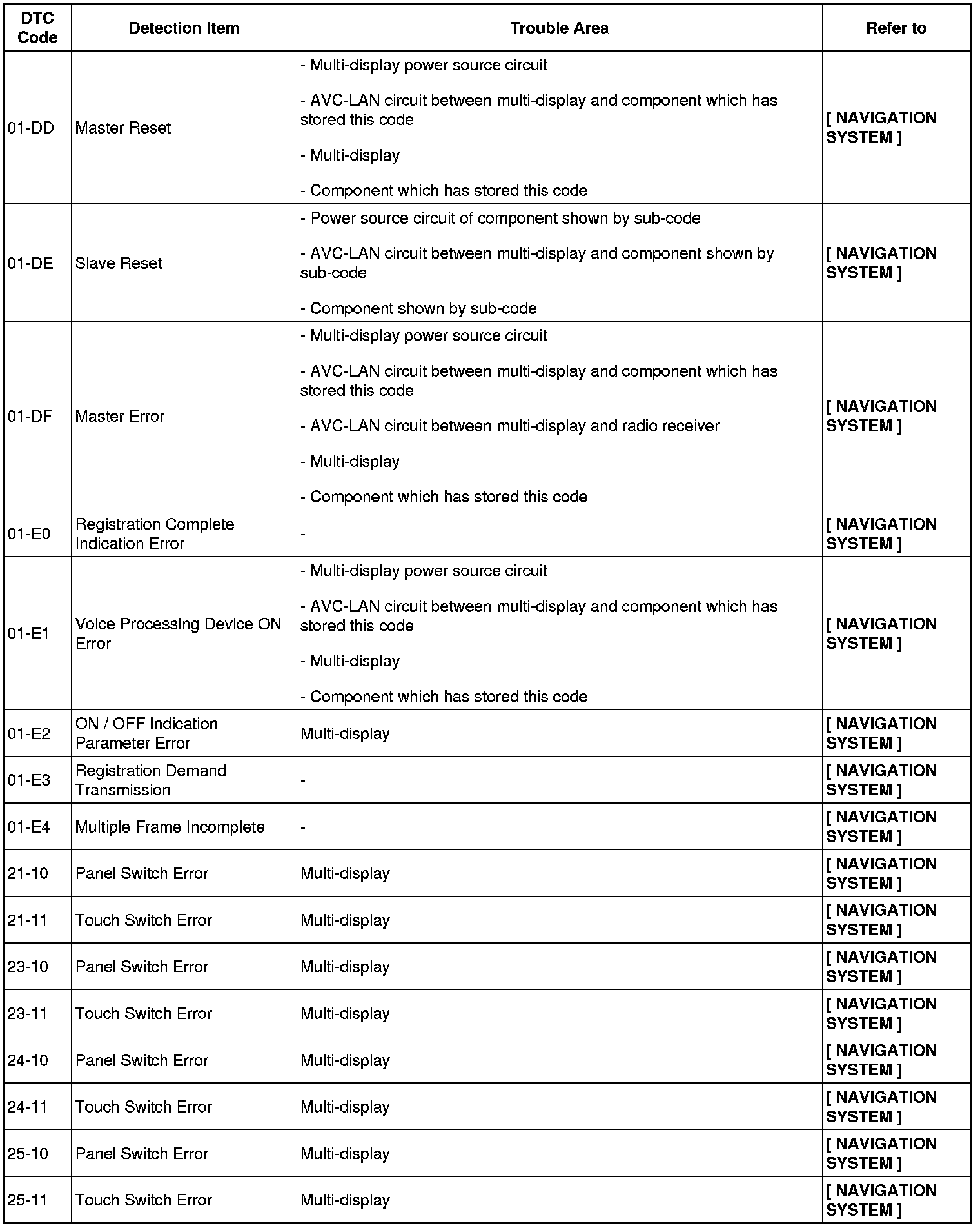

DTC 01-DD-25-11:

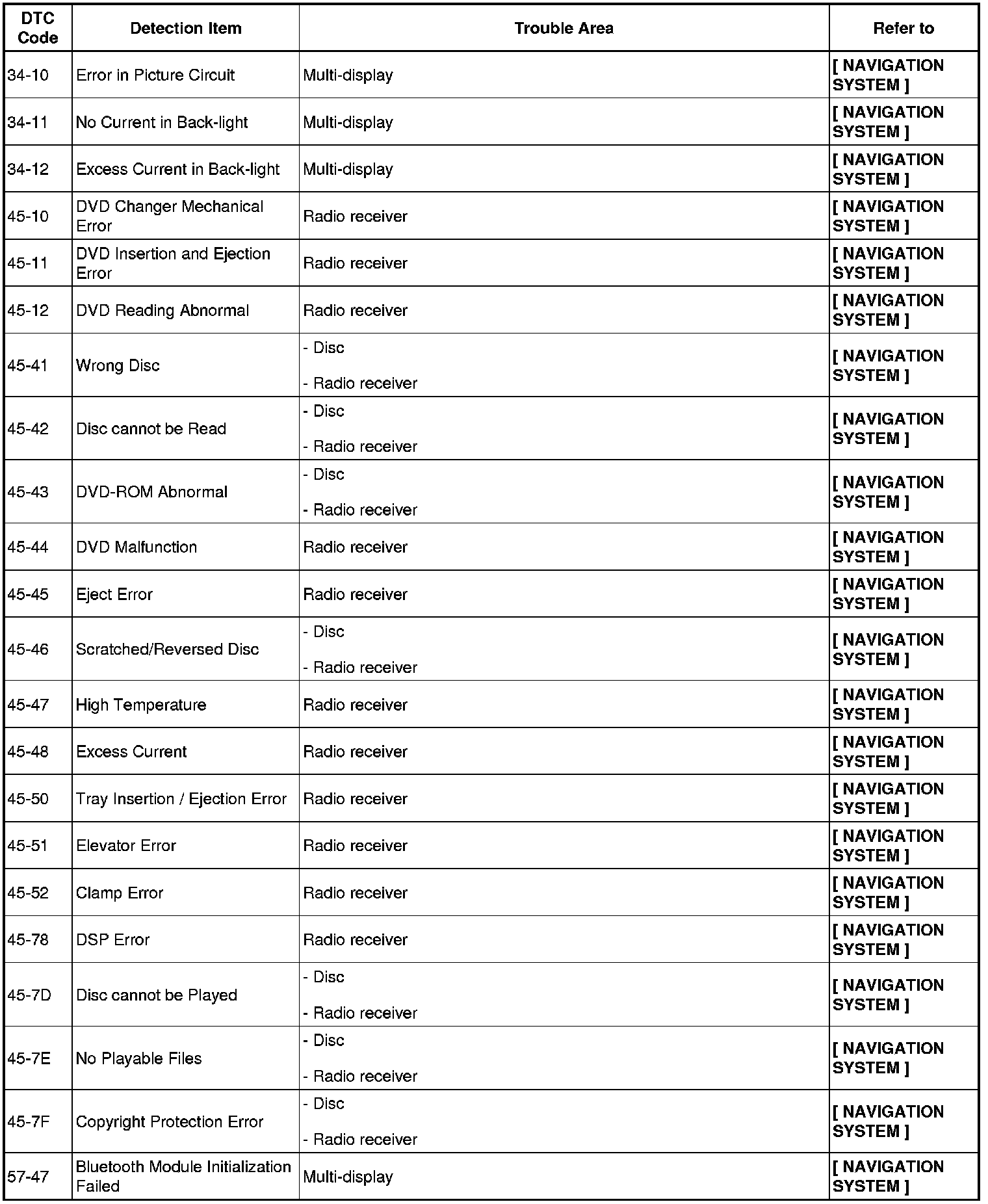

DTC 34-10-57-47:

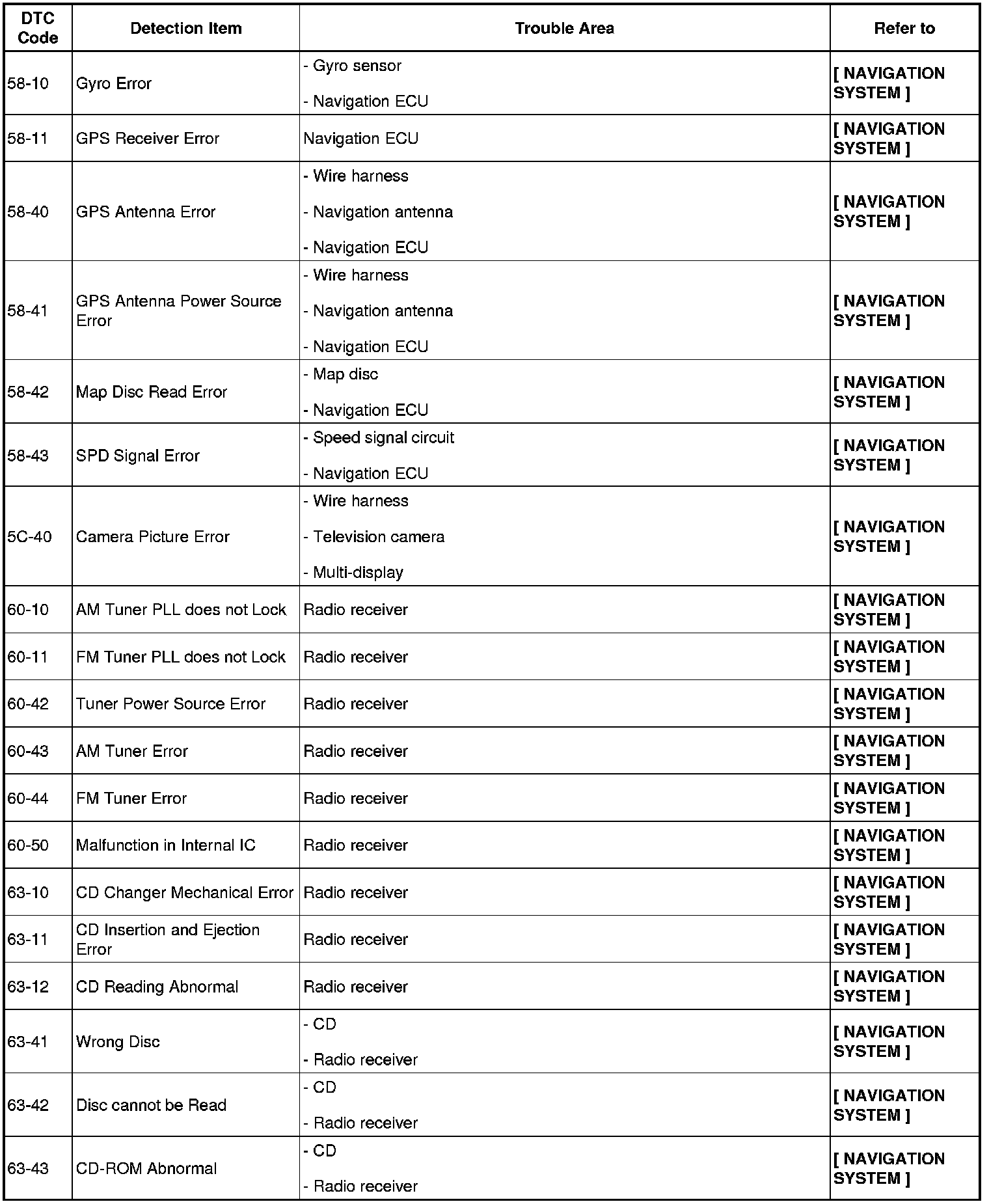

DTC 58-10-63-43:

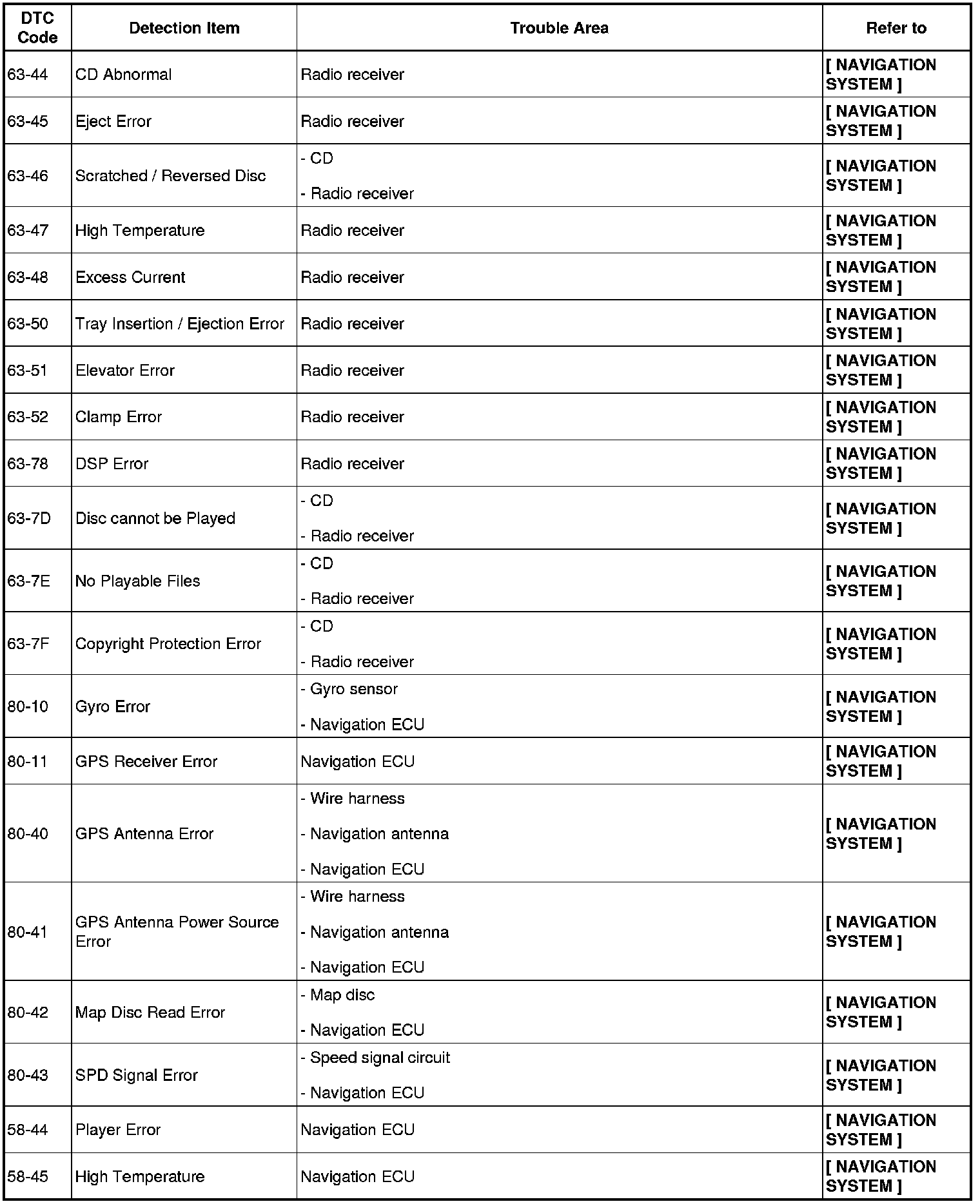

DTC 63-44-58-45:

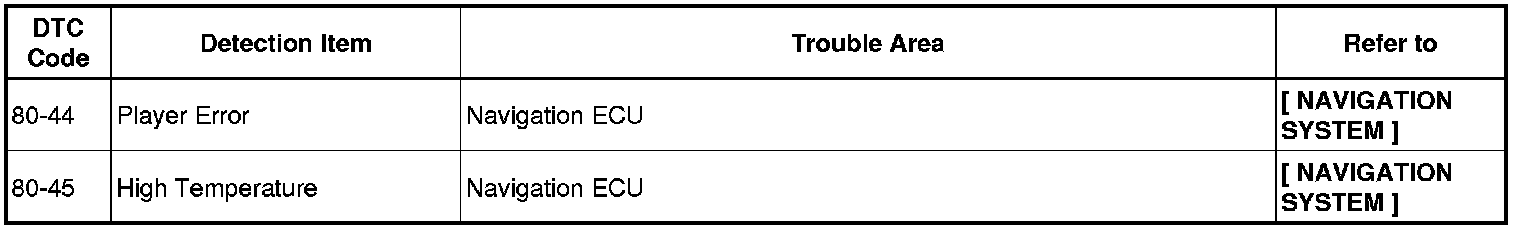

DTC 80-44-80-45:
