Electric Parking Brake System








PARKING BRAKE: ELECTRIC PARKING BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

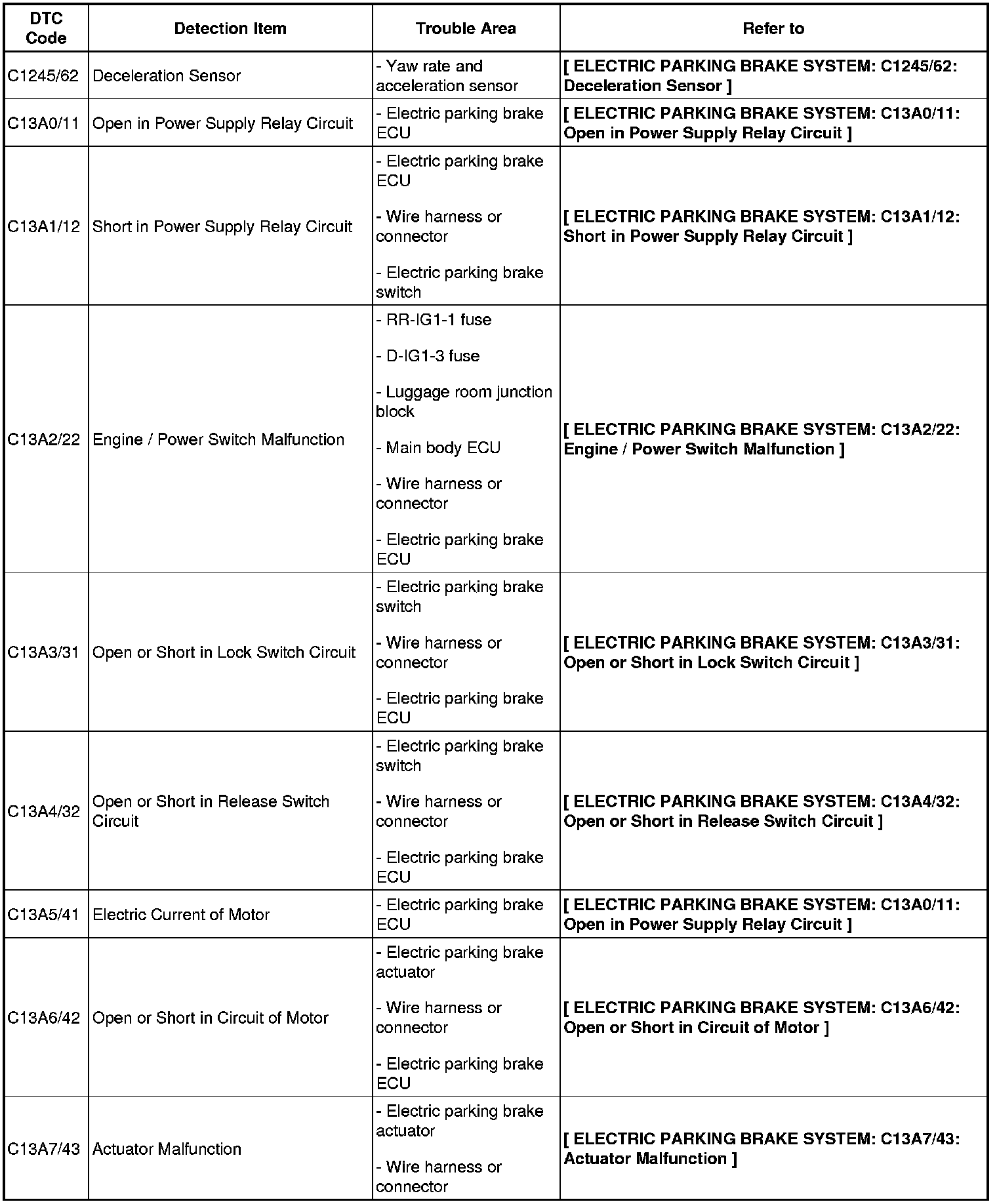

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Electric parking brake system

C1245/62-C13A7/43:

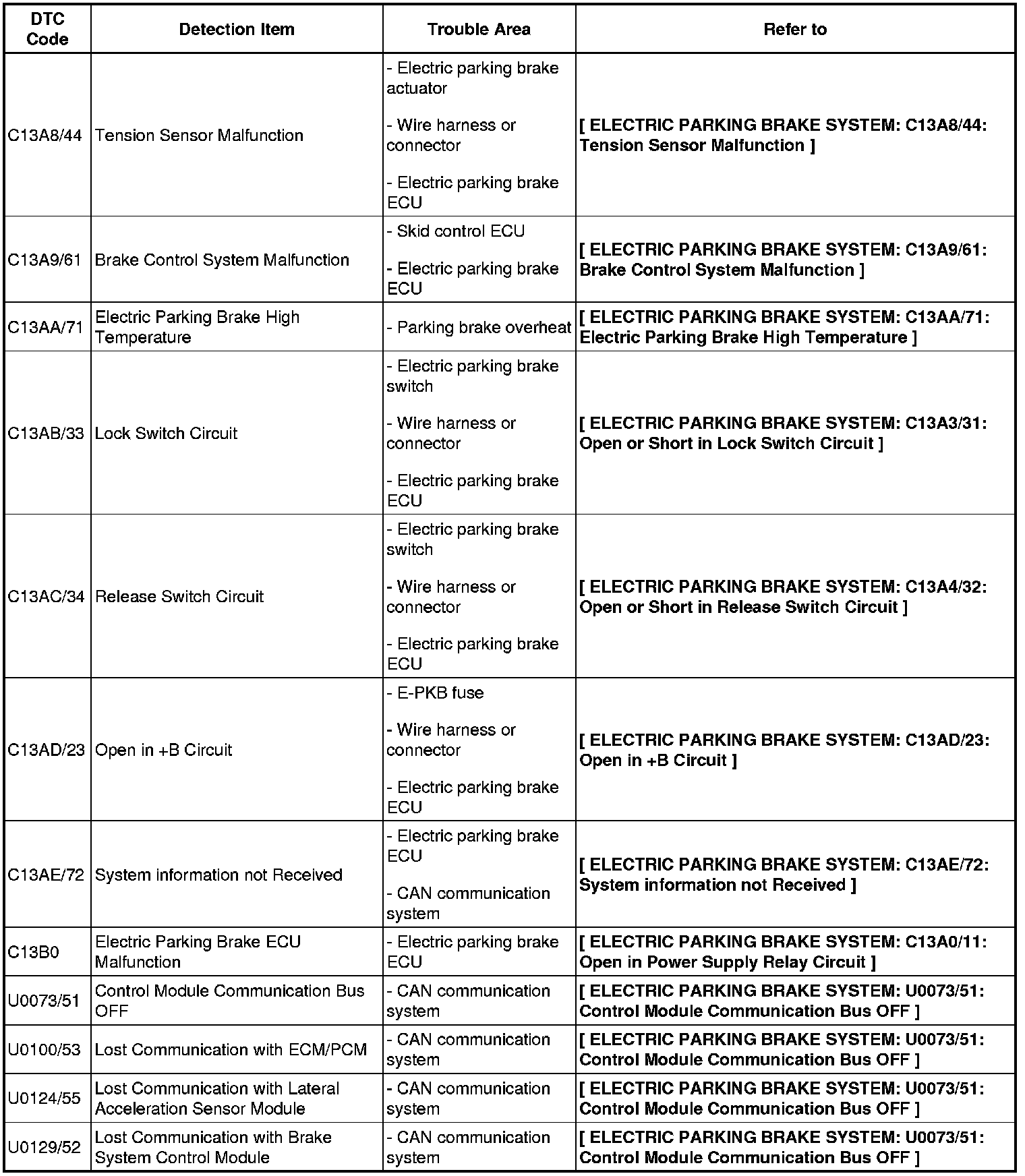

C13A8/44-C13B0/U0073/51-U0129/52:
