Audio and Visual System (w/o Multi-Display)








AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Audio and visual system

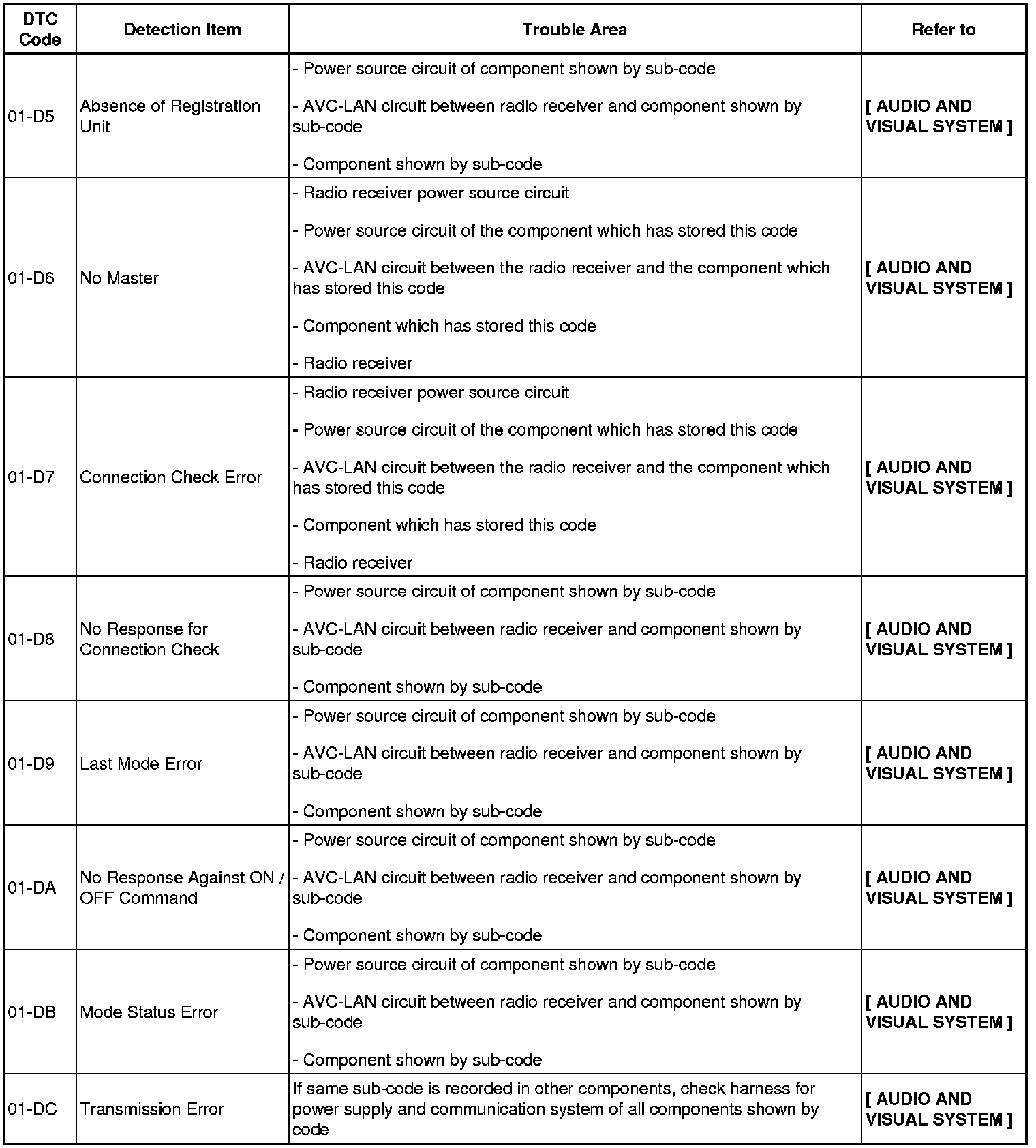

DTC 01-D5-01-DC:

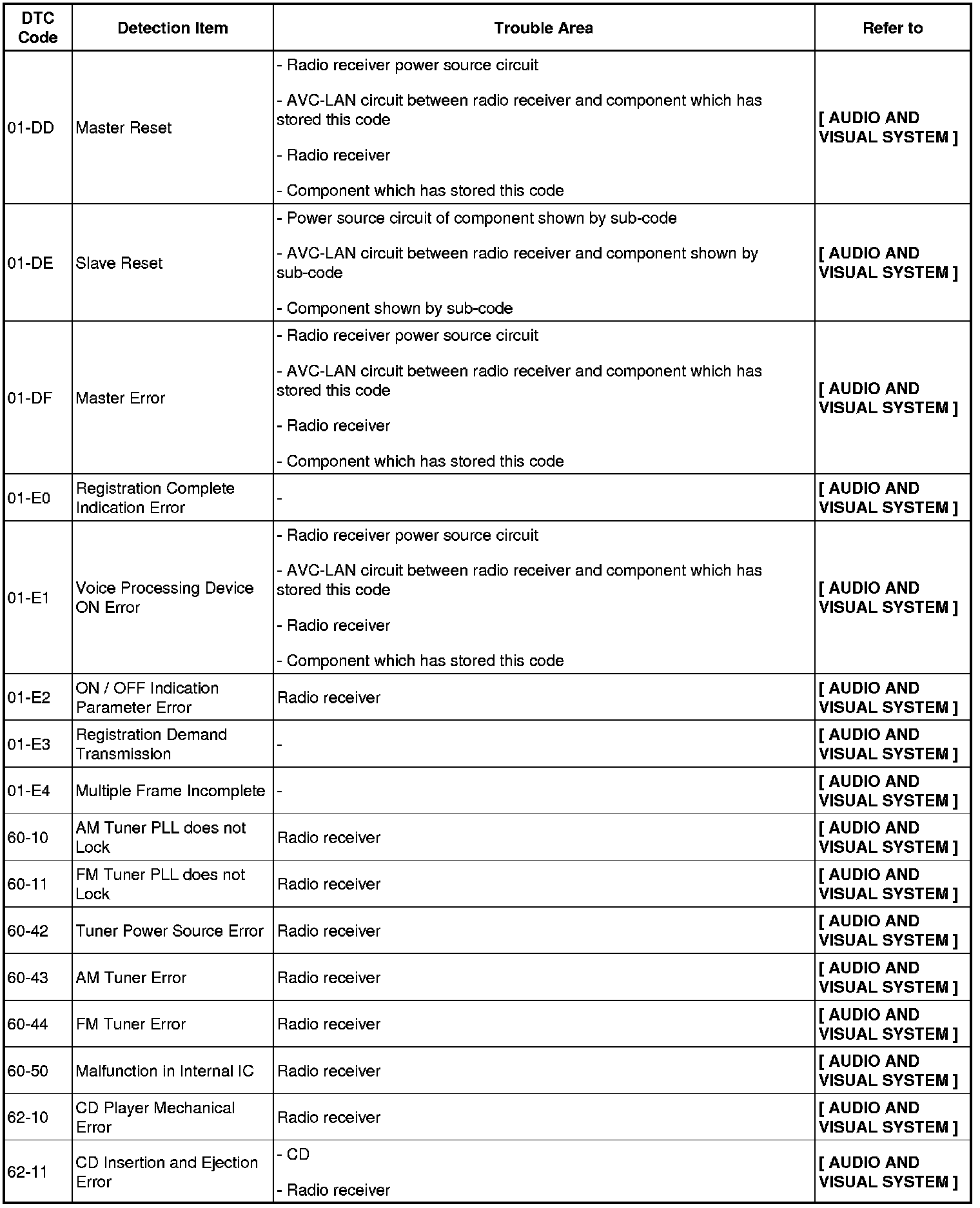

DTC 01-DD-62-11:

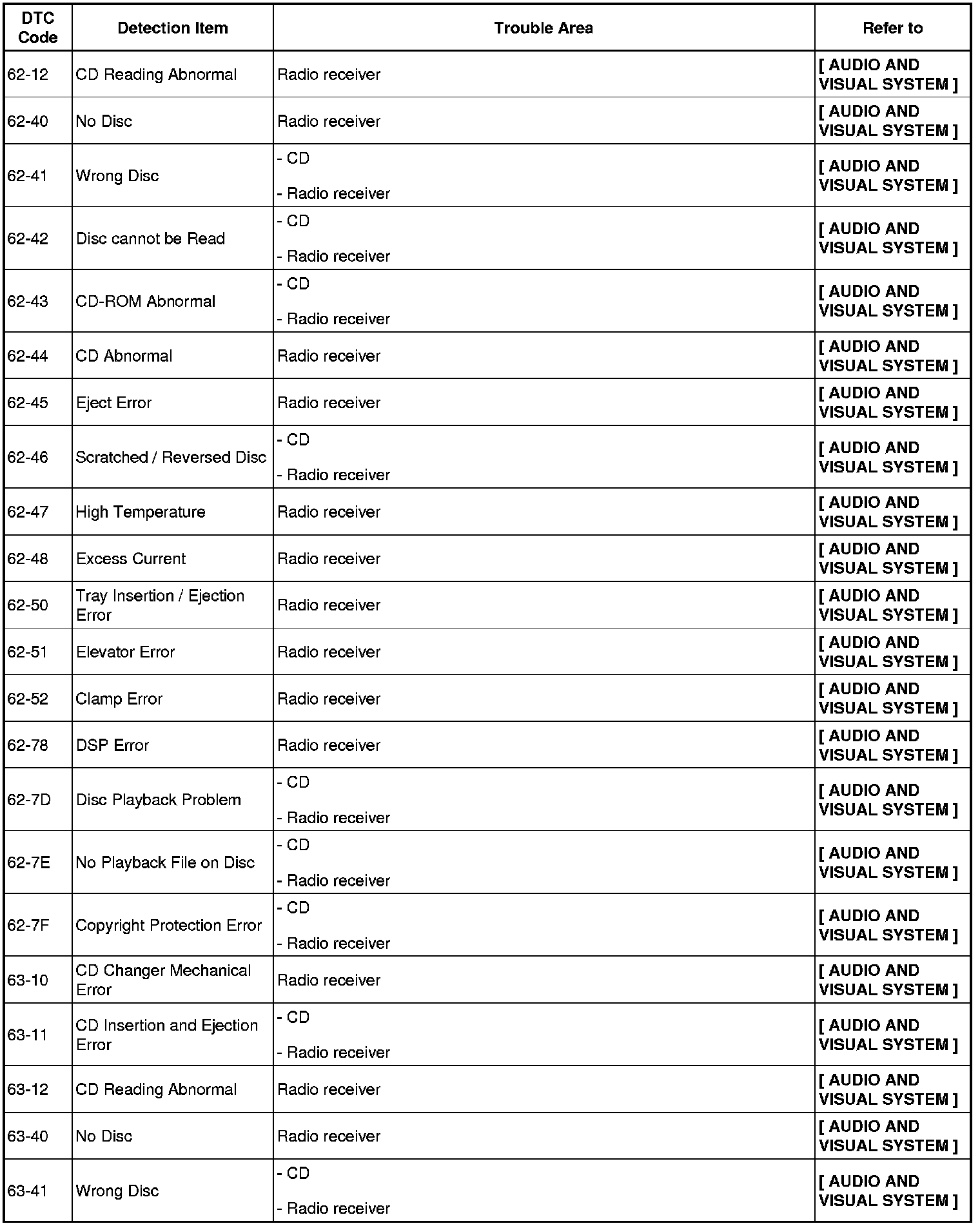

DTC 62-12-63-41:

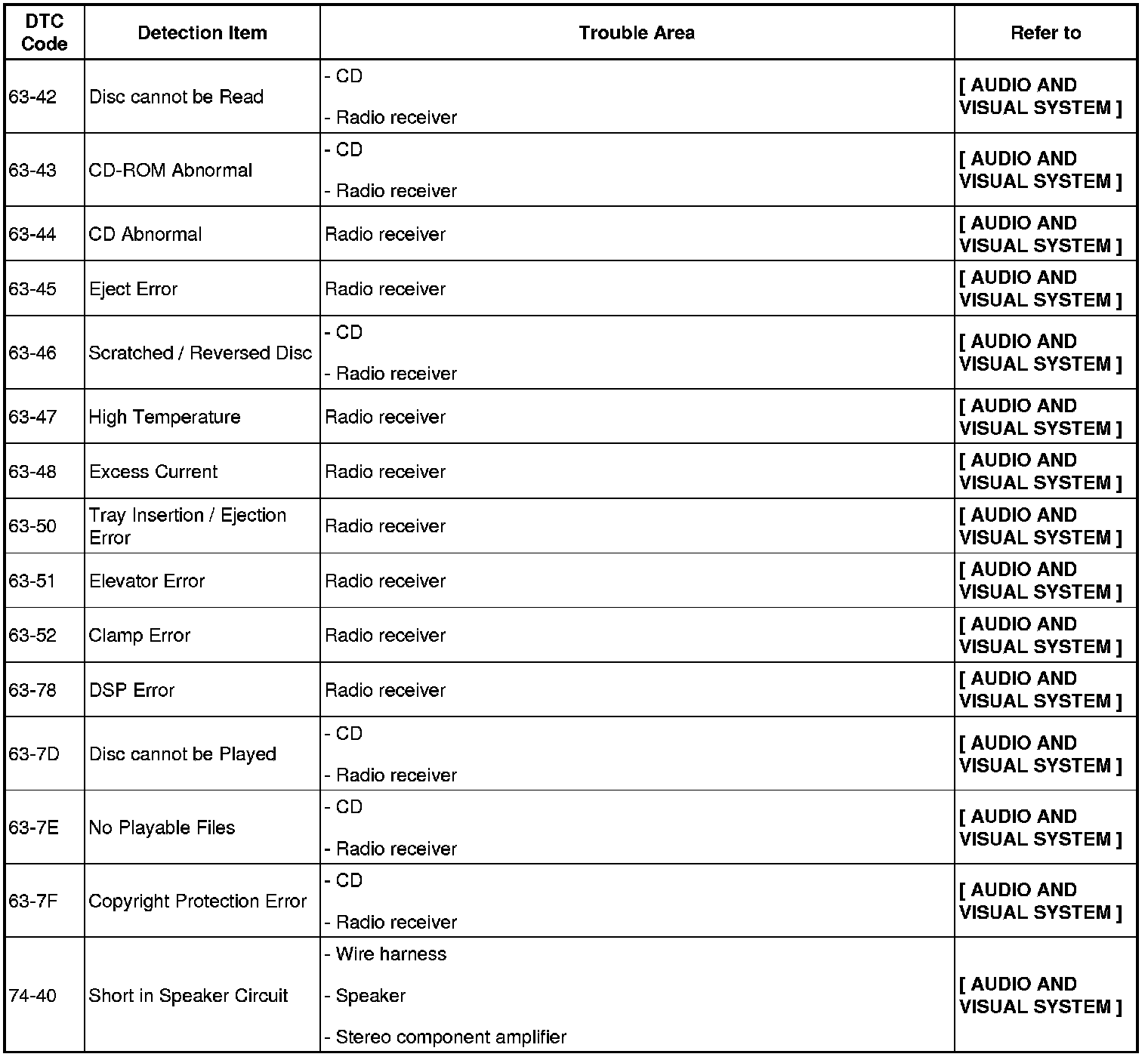

DTC 63-42-74-40:
