Audio and Visual System (w/ Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/ Multi-display): DIAGNOSTIC TROUBLE CODE CHART

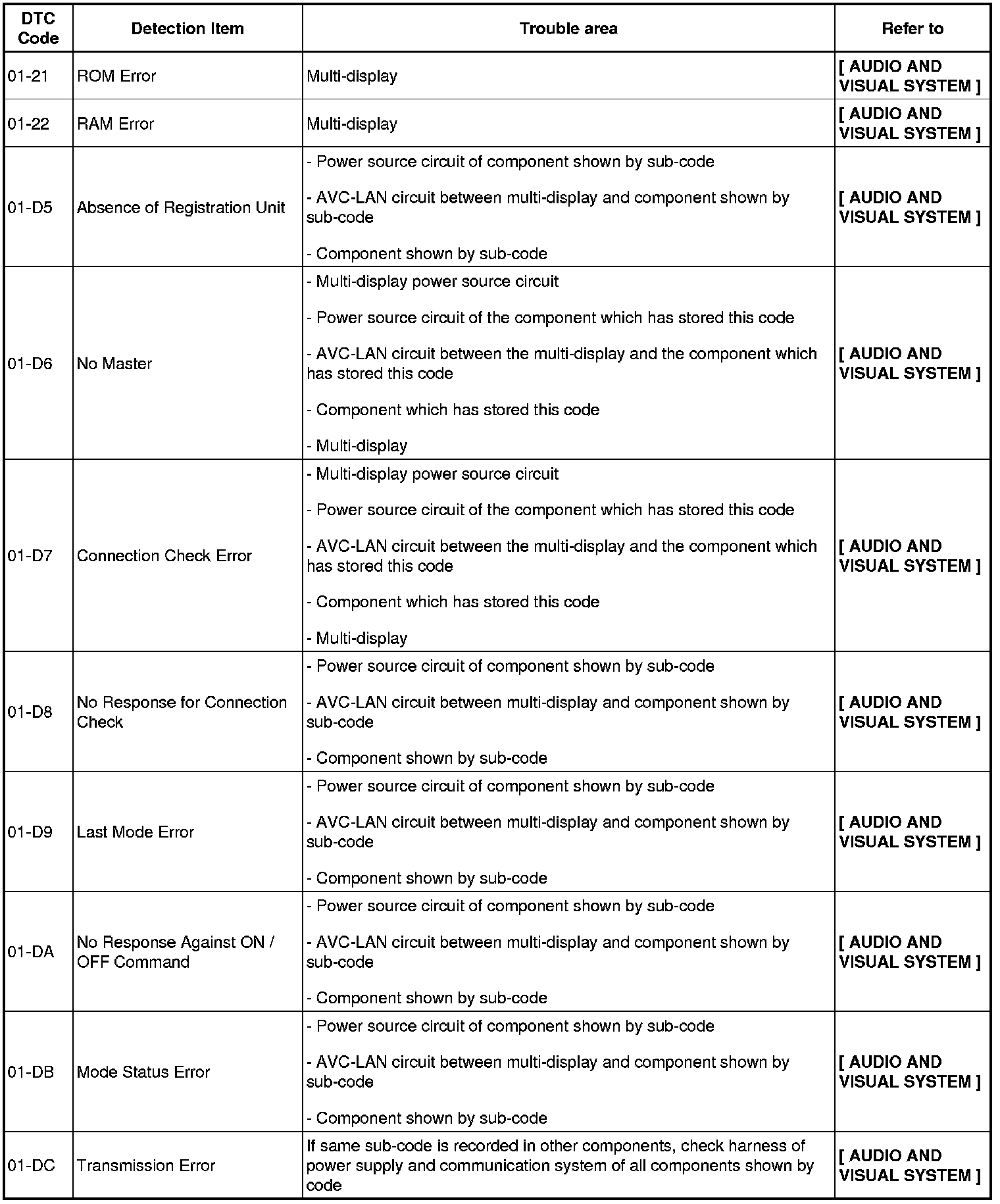

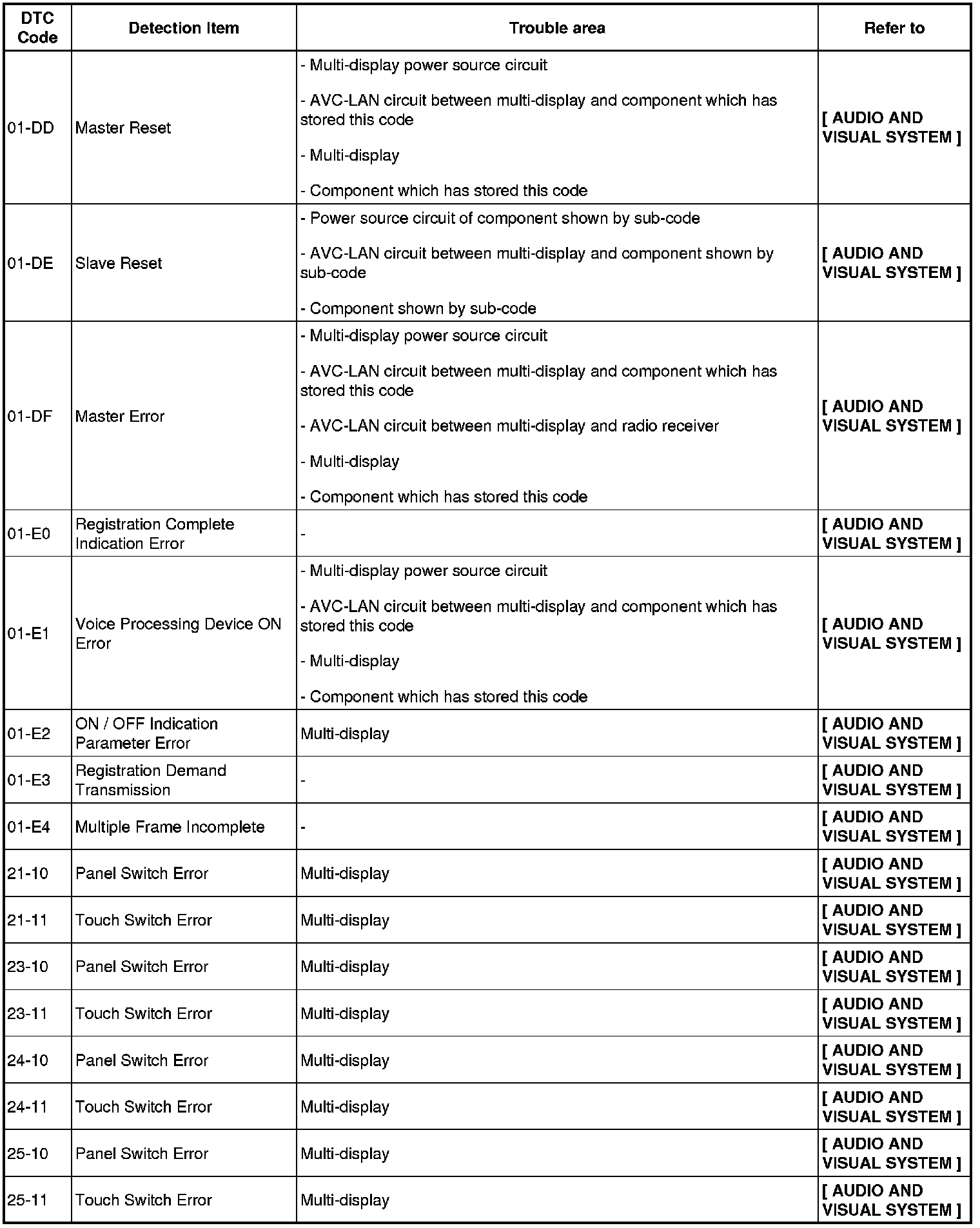

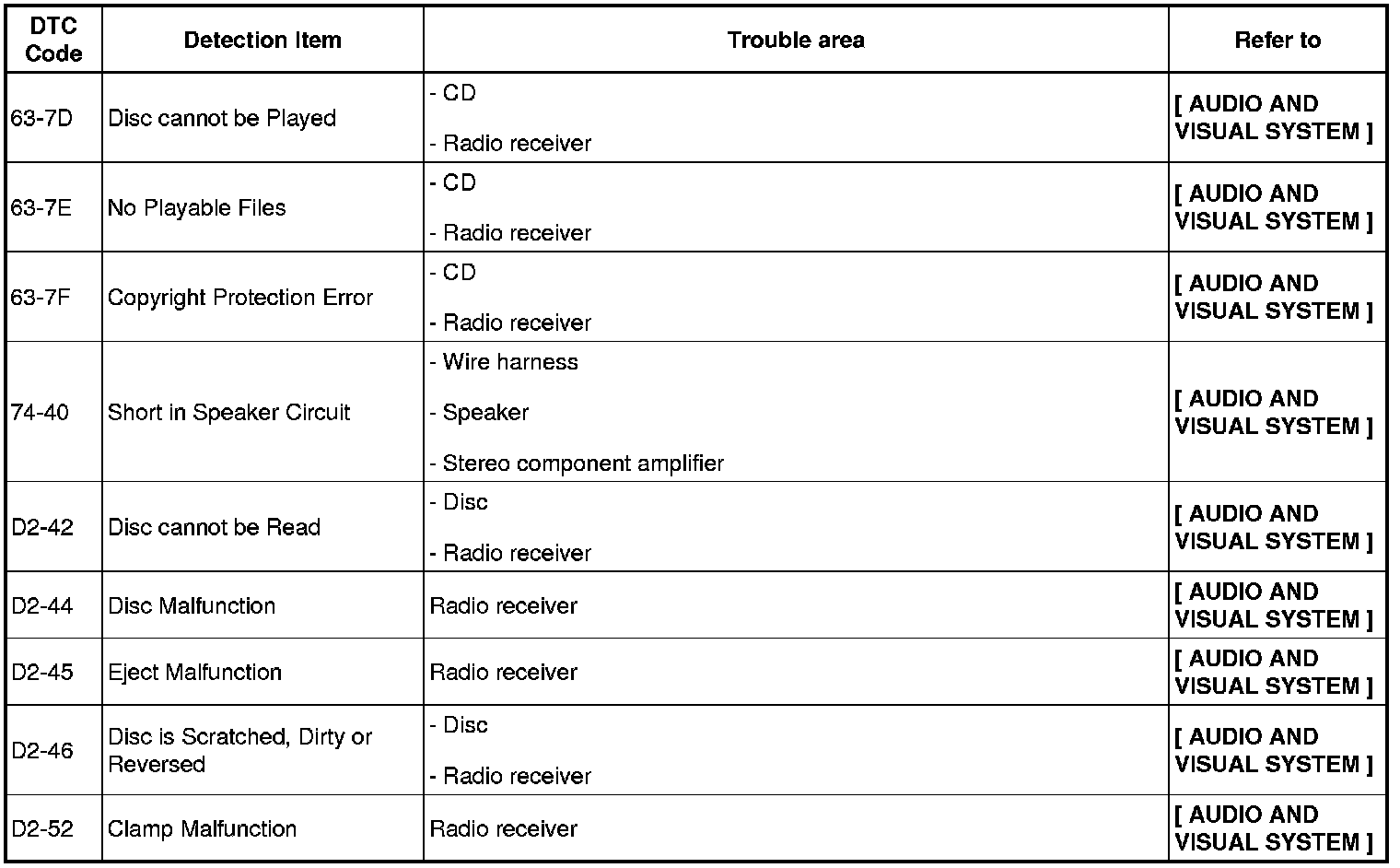

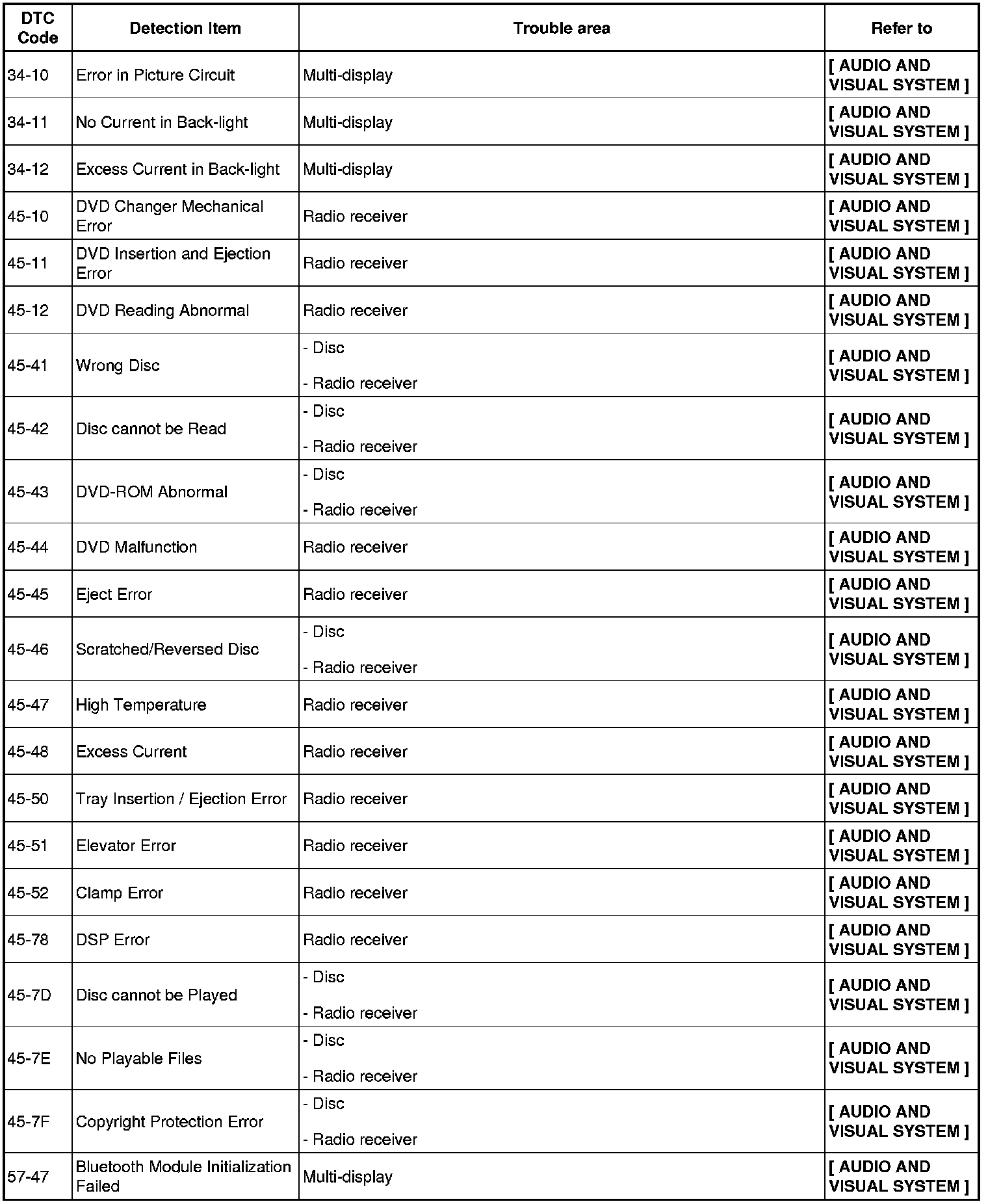

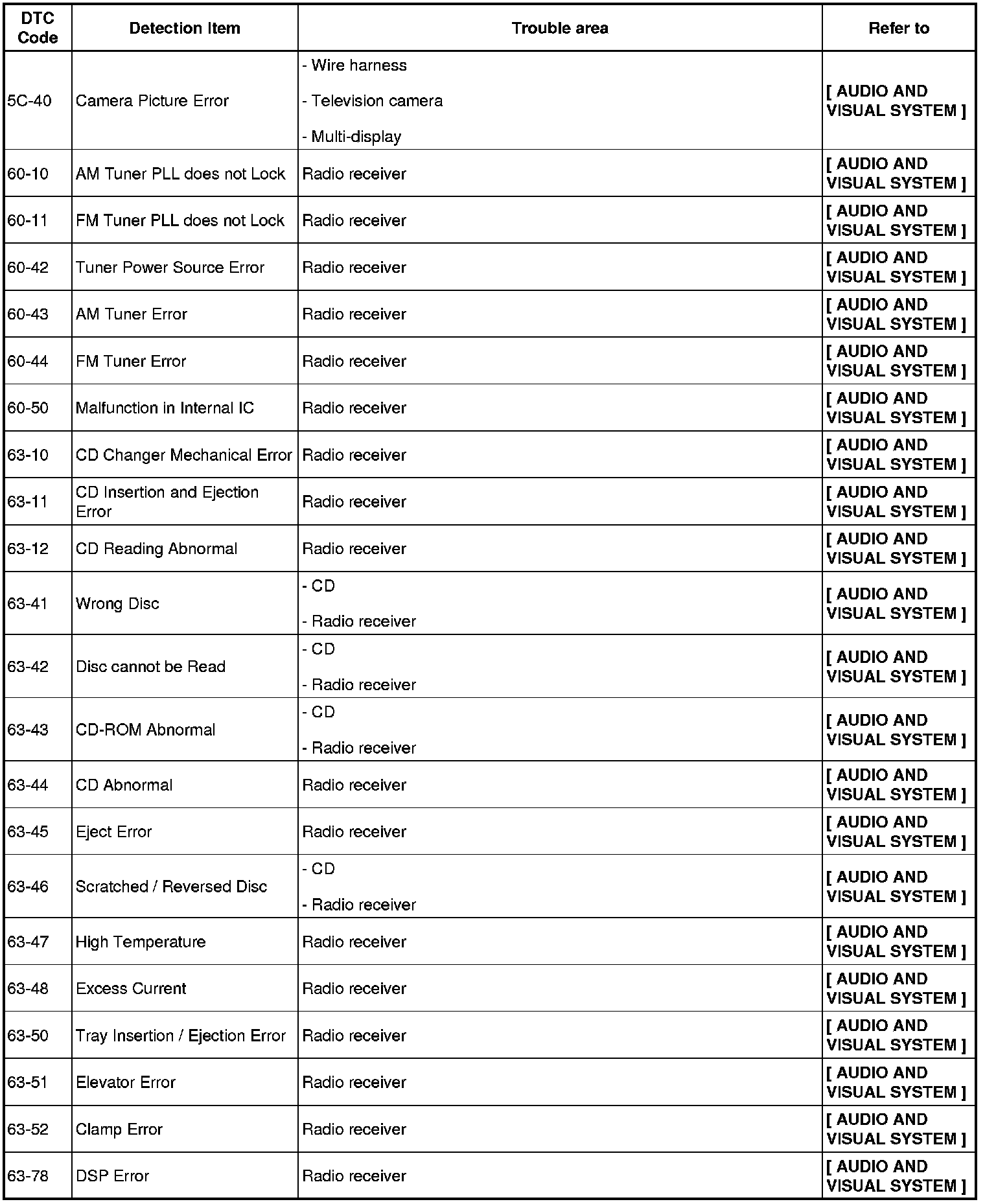

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Audio and visual system

DTC 01-21-01-DC:

DTC 01-DD-25-11:

DTC 34-10-57-47:

DTC 5C-40-63-78:

DTC 63-7D-D2-52:
