Advanced Parking Guidance System








PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that codes.
Inspect the fuse and relay before inspecting the trouble areas shown in the table below.

Advanced parking guidance system

C1611/5C-50-C1646/5C-72:





C1646/5C-73-C1AEE/5C-5E/U0073/5C-6A:

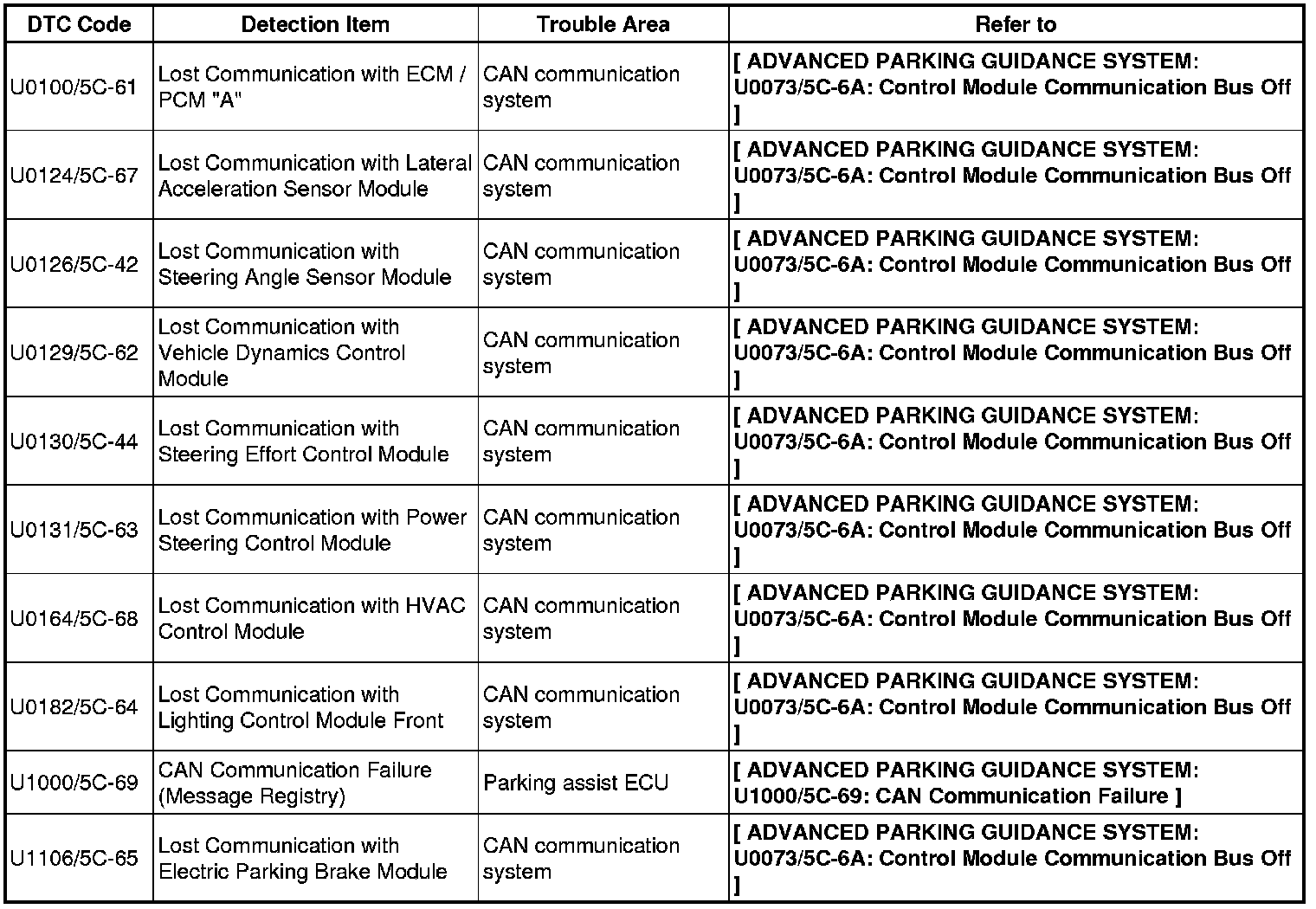

U0100/5C-61-U1106/5C-65:
