Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: C1AE5: Front Right Side Sensor

DTC C1AE5 - Front Right Side Sensor

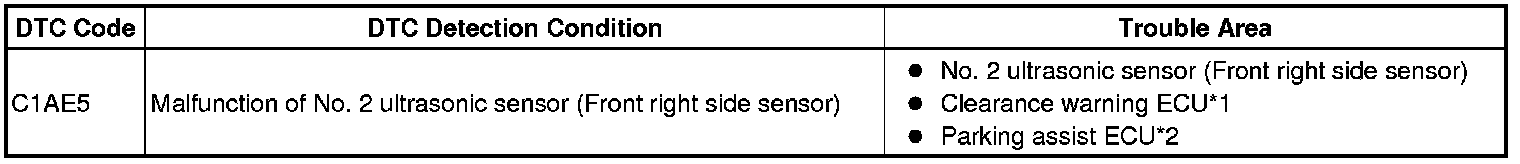

DESCRIPTION

The No. 2 ultrasonic sensor (front right side sensor) is installed on the front bumper. The ECU detects obstacles based on signals received from the front right side sensor. If the front right side sensor has an open circuit or other malfunction, it will not function normally.





HINT:
- *1: W/O Advanced parking guidance system
- *2: W/ Advanced parking guidance system

INSPECTION PROCEDURE
NOTE:
If the DTC is output after repairs, turn the engine switch on (IG) and move the shift lever to R. Then clear the DTC.

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Intuitive Parking Assist System.
(b) Check for DTCs Intuitive Parking Assist System.

Result





B -- USE SIMULATION METHOD TO CHECK
A -- Continue to next step.

2. REPLACE NO. 2 ULTRASONIC SENSOR (FRONT RIGHT SIDE SENSOR)




(a) Replace the ultrasonic sensor Removal with a normally functioning sensor.
NEXT -- Continue to next step.

3. CHECK DTC OUTPUT
(a) Clear the DTCs Intuitive Parking Assist System.
(b) Check for DTCs Intuitive Parking Assist System.

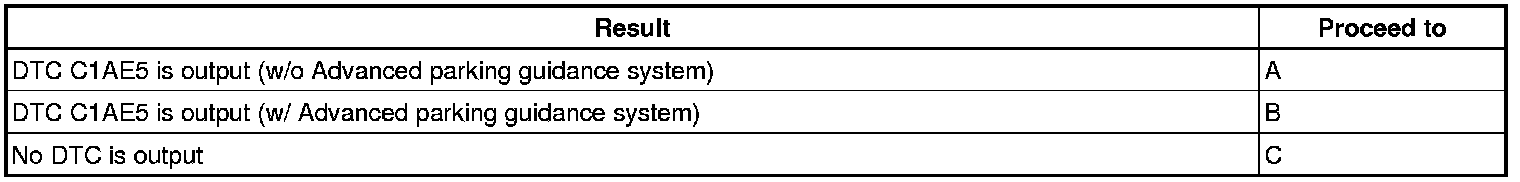

Result





C -- END
B -- REPLACE PARKING ASSIST ECU
A -- REPLACE CLEARANCE WARNING ECU
