C1655

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1655/5C-6D: Communication Failure with Engine ECU

DTC C1655/5C-6D - Communication Failure with Engine ECU

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that CAN communication between the parking assist ECU and ECM has a malfunction, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

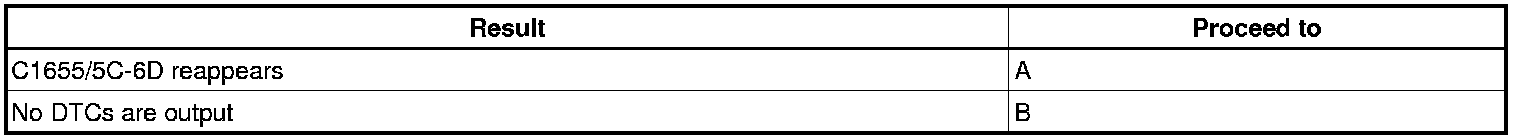

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO CAN COMMUNICATION SYSTEM
