C1653

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1653/5C-76: Electric Parking Brake Failure

DTC C1653/5C-76 - Electric Parking Brake Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the electric parking brake (connected via CAN communication) is malfunctioning, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

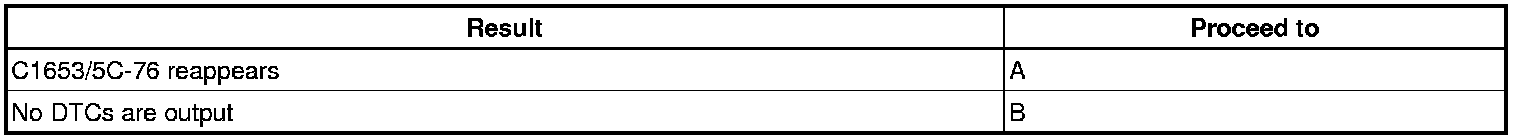

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO ELECTRIC PARKING BRAKE SYSTEM
