C1643

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1643/5C-6E: Brake Control System Failure

DTC C1643/5C-6E - Brake Control System Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the electronically controlled brake system (connected via CAN communication) is malfunctioning, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

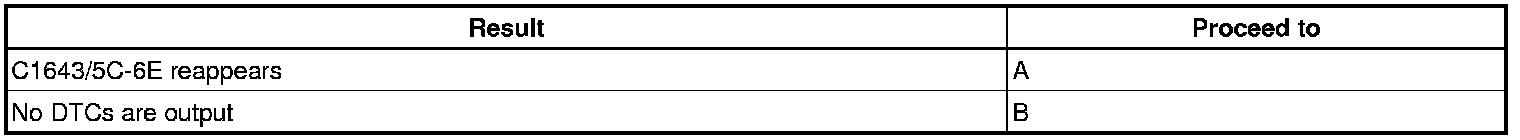

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM
