C1641

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1641/5C-6B: Powertrain System Failure

DTC C1641/5C-6B - Powertrain System Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the accelerator pedal rod assembly (acceleration position sensor) (connected through the ECM via CAN communication) is malfunctioning, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

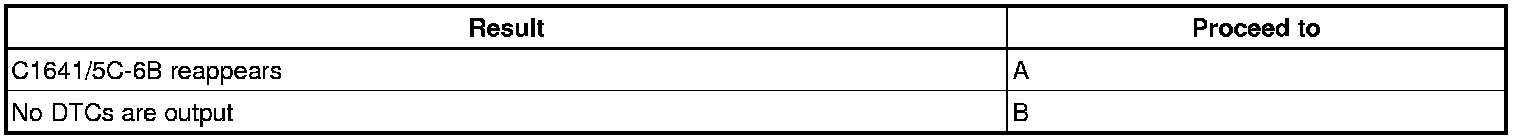

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO SFI SYSTEM
